Processor manufacturer
The manufacturer that produced the processor.
Intel
Processor family
A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.
Intel Pentium G
Processor frequency
The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.
3.3 GHz
Processor cores
The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).
2
Processor socket
Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.
LGA 1151 (Socket H4)
Component for
What this product is used as a part of (component for).
PC
Processor lithography
The process which is performed by the processor e.g. CPU (Central Processing Unit).
14 nm
Processor series
Intel Pentium G4400 series For Desktop
Processor model
The model number for the processor in a computer.
G4400
Processor threads
2
System bus rate
A bus is a communication system that transfers data between components inside a computer, or between computers. The system bus rate is the speed at which data is transferred in this communication system.
8 GT/s
Processor operating modes
Operating modes for the processors that place restrictions on the type and scope of operations for certain processes run by the CPU. This design allows the operating system to run with more privileges than application software.
32-bit,64-bit
Processor cache
3 MB
Processor cache type
Smart Cache
Box
Plastic or metal shell/container for components.
Cooler included
The device comes with an integrated cooler.
Stepping
R0
FSB Parity
Bus type
DMI3
Processor codename
Skylake
Memory bandwidth supported by processor (max)
34.1 GB/s
Processor code
SR2DC
Processor ARK ID
88179
Memory
Maximum internal memory supported by processor
64 GB
Memory types supported by processor
DDR3L-SDRAM,DDR4-SDRAM
Memory clock speeds supported by processor
1866,1333,2133,1600 MHz
Memory channels
Dual-channel
Memory voltage supported by processor
1.35 V
ECC
ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention.
Graphics
On-board graphics adapter
Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
On-board graphics adapter model
"Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.
Intel® HD Graphics 510
Maximum on-board graphics adapter memory
1.7 GB
On-board graphics adapter outputs supported
DVI,DisplayPort,HDMI,Embedded DisplayPort (eDP)
On-board graphics adapter base frequency
350 MHz
On-board graphics adapter dynamic frequency (max)
1000 MHz
Number of displays supported (on-board graphics)
The feature may not be available on all computing systems. Functionality, performance, and other benefits of this feature may vary depending on system configuration.
3
On-board graphics adapter 4K support
On-board graphics adapter DirectX version
12.0
On-board graphics adapter OpenGL version
4.4
On-board graphics adapter maximum resolution (DisplayPort)
4096 x 2304 pixels
On-board graphics adapter maximum resolution (HDMI)
4096 x 2304 pixels
On-board graphics adapter ID
0x1902
Power
Thermal Design Power (TDP)
47, 54
Features
Execute Disable Bit
Idle States
Thermal Monitoring Technologies
Maximum number of PCI Express lanes
16
PCI Express slots version
3.0
PCI Express configurations
1x16,1x8+2x4,2x8
Supported instruction sets
SSE4.1,SSE4.2
Bandwidth
8 MB/s
Scalability
1S
CPU configuration (max)
1
Embedded options available
Graphics & IMC lithography
14 nm
Thermal solution specification
Intel Reference Heat Sink specification for proper operation of this SKU.
PCG 2015C
PCI Express CEM revision
3.0
Market segment
DT
Harmonized System (HS) code
8542310001
Processor special features
Intel® Anti-Theft Technology (Intel® AT)
<b>Disable access to missing laptops</b>
Giving users access to corporate data and application through remote laptops boosts productivity, but it can also leave IT vulnerable to hackers and misplaced laptops. Intel® Anti-Theft Technology is built into the laptop hardware, helping IT administrators outwit thieves, even when they attempt to reimage the OS, change the boot order, or install a new hard drive. When laptops with Intel® Anti-Theft Technology (Intel® AT) become lost or stolen, they can be remotely disabled. If the laptop is recovered, it can be quickly reactivated to normal operation.
Intel® Hyper Threading Technology (Intel® HT Technology)
<b>Improved Performance for Threaded Software</b>
Intel® Hyper-Threading Technology (Intel® HT Technology) makes efficient use of processor resources, enabling multiple threads to run on each core and increasing processor throughput. Available on Intel® Core™ and Intel® Xeon® processors, Intel HT Technology helps run demanding applications simultaneously, protect and manage systems, and provide headroom for business growth.
Intel® Identity Protection Technology (Intel® IPT)
<b>Protect Your Identity and Business</b>
Intel® Identity Protection Technology (Intel® IPT) protects enterprises from being penetrated by stolen credentials and online user account access with an added layer of hardware-based security and authentication as well as a multifactor authentication framework to manage different authentication methods.
Intel® My WiFi Technology (Intel® MWT)
Intel® My WiFi Technology (Intel® MWT) uses an extensible software architecture that allows the operating system to think the notebook has two Wi-Fi radios performing similar, but different, functions. Each virtual Wi-Fi radio is assigned a TCP/IP stack.
Intel® Turbo Boost Technology
<b>Higher Performance When You Need It Most</b>
Intel® Turbo Boost Technology 2.0 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration.
Intel® Quick Sync Video Technology
<b>Create, Edit, and Share Video in a Flash</b>
Intel® Quick Sync Video uses the dedicated media processing capabilities of Intel® Graphics Technology to make video encoding tasks—such as creating DVDs or Blu-ray discs, creating and editing 3D videos, converting 2D video files into 3D, and converting video for portable media players and social networking sites—faster and easier.
Intel® InTru™ 3D Technology
Add a new dimension to your viewing experience. Now you can play games and watch your favorite 3D movies with Blu-ray Stereo 3D playback using passive or active shutter 3D glasses. InTru™ 3D technology by Intel in association with Dreamworks delivers it all in 1080p full high-definition resolution on your TV over HDMI 1.4.
Intel® Wireless Display (Intel® WiDi)
<b>Connect to TV Wirelessly</b>
With a few clicks, Intel® Wireless Display expands your screen’s potential, linking mobile devices and laptops to TV screens wirelessly. Stream family favorites and view personal experiences while turning your device’s small screen into a superior, sharable experience.
Intel FDI Technology
Intel® Clear Video HD Technology (Intel® CVT HD)
<b>See the World More Vividly</b>
Intel® Clear Video HD Technology delivers cleaner, sharper images, more natural, accurate, and vivid colors. View images as they were meant to be seen on devices featuring Intel® Core™ processors with Intel® Graphics Technology.
Intel Dual Display Capable Technology
Intel® Insider™
Experience a whole new level of premium HD entertainment with Intel® Insider™—available exclusively with 5th generation Intel® Core™ processors.
Intel Fast Memory Access
Intel Flex Memory Access
Intel® Smart Cache
<b>Improve Responsiveness with Faster Data Access</b>
With Intel® Smart Cache on the Intel® Core™ i5 processor, the shared cache is dynamically allocated to each processor core, based on workload. This efficient, dual-core-optimized implementation increases the probability that each core can access data from the fast cache, significantly reducing latency to frequently used data and improving performance.
Intel® AES New Instructions (Intel® AES-NI)
<b>Added Security with Faster Data Encryption</b>
The Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) enable fast and secure data encryption and decryption for better performance and less risk from timing and cache-based attacks than table-based software implementations. Intel AES-NI supports usages such as standard key lengths, standard modes of operation, and even some nonstandard or future variants.
Enhanced Intel SpeedStep Technology
Intel Trusted Execution Technology
Intel® Memory Protection Extensions (Intel® MPX)
Intel® Memory Protection Extensions (Intel® MPX) provides a set of hardware features that can be used by software in conjunction with compiler changes to check that memory references intended at compile time do not become unsafe at runtime due to buffer overflow or underflow.
Intel Enhanced Halt State
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Intel VT-x with Extended Page Tables (EPT)
Intel Demand Based Switching
Intel Advanced Vector Extensions
Intel® Secure Key
<b>Generate Cryptographic Security Protocols</b>
Intel® Secure Key is a security hardware-based random number generator that can generate high-quality keys for cryptographic (encryption and decryption) protocols. These keys provide quality entropy that is highly sought after in the cryptography world for added security.
Intel TSX-NI
Intel Rapid Storage Technology
Intel Stable Image Platform Program (SIPP)
Intel® OS Guard
<b>Protect Your Operating Environment</b>
Intel® OS Guard, a hardware-based security feature that protects the operating system kernel, defends against malicious data or attack code located in areas of memory marked as user mode pages, preventing any application from taking over or compromising the OS kernel.
Intel® Small Business Advantage (Intel® SBA)
<b>Solutions to Help You Focus on Your Small Business</b>
Intel® Small Business Advantage (Intel® SBA) helps small businesses without a managed network manage security and productivity issues. This solution helps maintain and protect PCs automatically so that you can focus on running your business.
Intel Clear Video Technology
Intel Software Guard Extensions (Intel SGX)
1
Intel 64
Intel Identity Protection Technology version
1.00
Intel Secure Key Technology version
1.00
Intel Small Business Advantage (SBA) version
0.00
Intel Stable Image Platform Program (SIPP) version
0.00
Intel Virtualization Technology (VT-x)
<b>Simplify Virtualization and Reduce Overheads</b>
Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Intel Virtualization Technology for Directed I/O (VT-d)
<b>Simplify Virtualization and Reduce Overheads</b>
Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Intel TSX-NI version
0.00
Conflict-Free processor
"Conflict free" means "DRC conflict free", which is defined by the U.S. Securities and Exchange Commission rules to mean products that do not contain conflict minerals (tin, tantalum, tungsten and/or gold) that directly or indirectly finance or benefit armed groups in the Democratic Republic of the Congo (DRC) or adjoining countries.
Intel® Optane™ Memory Ready
Intel® Boot Guard
Intel® Device Protection Technology with Boot Guard helps protect the system’s pre-OS environment from viruses and malicious software attacks.
Intel® vPro™ Platform Eligibility
Technical details
Number of processors supported
The quantity of processors which can be used by the product.
1
PCI Express slots quantity
16
Born on date
Q3'15
Bus bandwidth
8
Bus type units
GT/s
Graphics max dynamic frequency
1.00 GHz
Launch date
Q3'15
Maximum resolution & refresh rate (DisplayPort)
4096x2304@60Hz
Maximum resolution & refresh rate (HDMI)
4096x2304@24Hz
Maximum resolution & refresh rate (Integrated Flat Panel)
4096x2304@60Hz
Maximum resolution & refresh rate (VGA)
N/A
OpenGL support
Processor cache
3072 KB
Product name

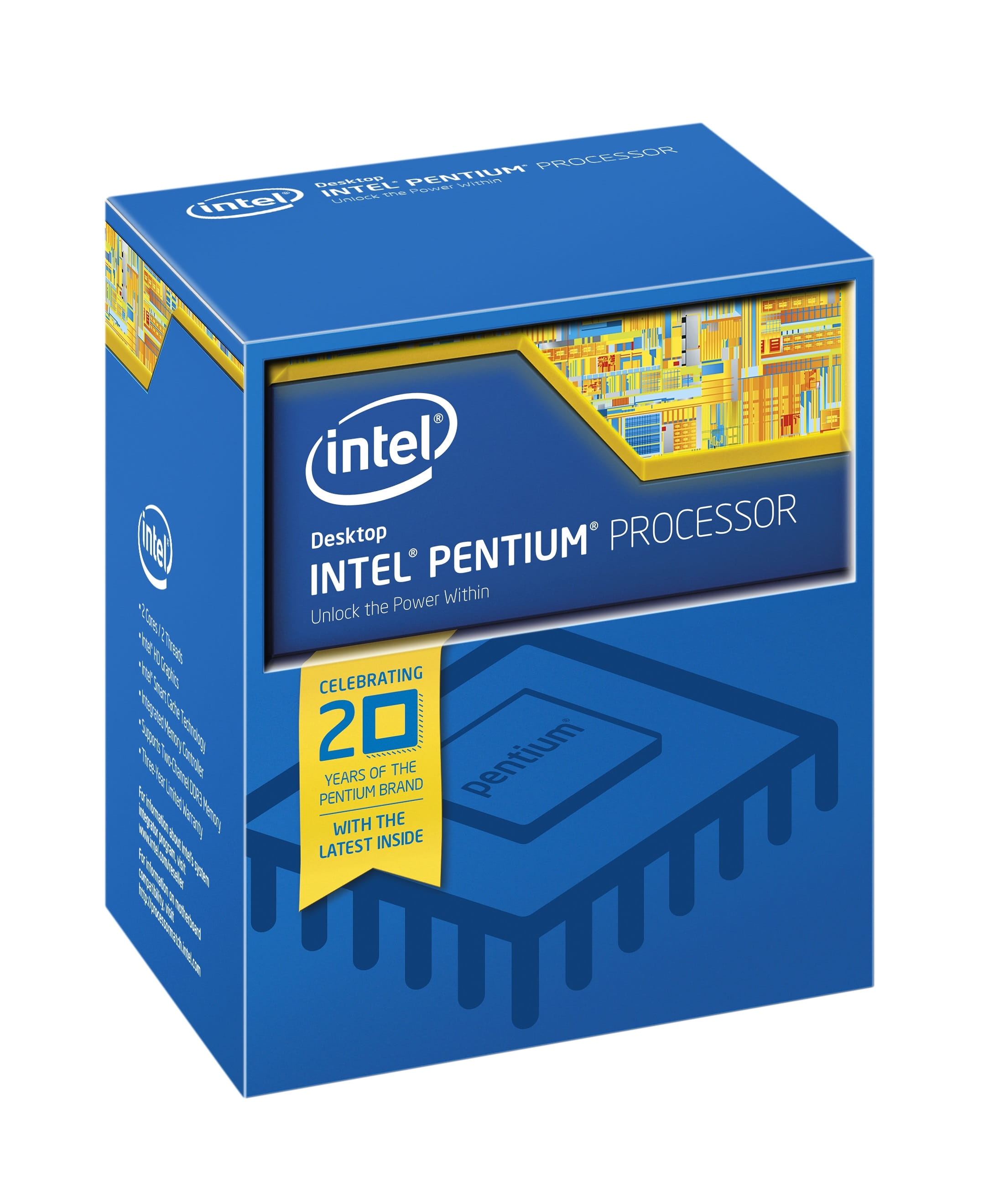

Intel Pentium G4400 (3M Cache, 3.30 GHz)
Product type
The sub-category of the product.
Processor
Status
Launched
Supported processor sockets
The sockets (plugs) for processors that are supported (can be used) by the device.
FCLGA1151
Video compression formats
Maximum graphics adapter memory
64 GB
Maximum memory
64 GB
Processor brand name
Intel Pentium
Supported memory types
Types of memory which can be used with the product.
DDR4-1866/2133, DDR3L-1333/1600 @ 1.35V
Last change
63903513
Maximum resolution (WiDi)
1080p
Product family
Intel Pentium Processor
Bus speed
8 GT/s
Processor ID
0x1902
Weight & dimensions
Package width
The distance from one side of the packaging to the other.
70 mm
Package depth
The distance from the front to the back of the packaging.
116 mm
Package height
The distance from the top to the bottom of the packaging.
101 mm
Package dimensions (WxDxH)
Dimensions of the packaged product (Width x Depth x Height).
37.5 x 37.5
Package weight
Weight of the packaged product.
338 g
Processor package size
37.5 x 37.5 mm
Other features
Intel® Virtualization Technology (Intel® VT)
<b>Simplify Virtualization and Reduce Overheads</b>
Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
VT-d,VT-x
L2 cache
The CPU cache (Level 2) is a smaller, faster memory which stores copies of the data from the most frequently used main memory locations.
3072
Maximum internal memory
The maximum amount of memory inside a product, usually measured in bytes e.g megabytes (MB) or gigabytes (GB).
