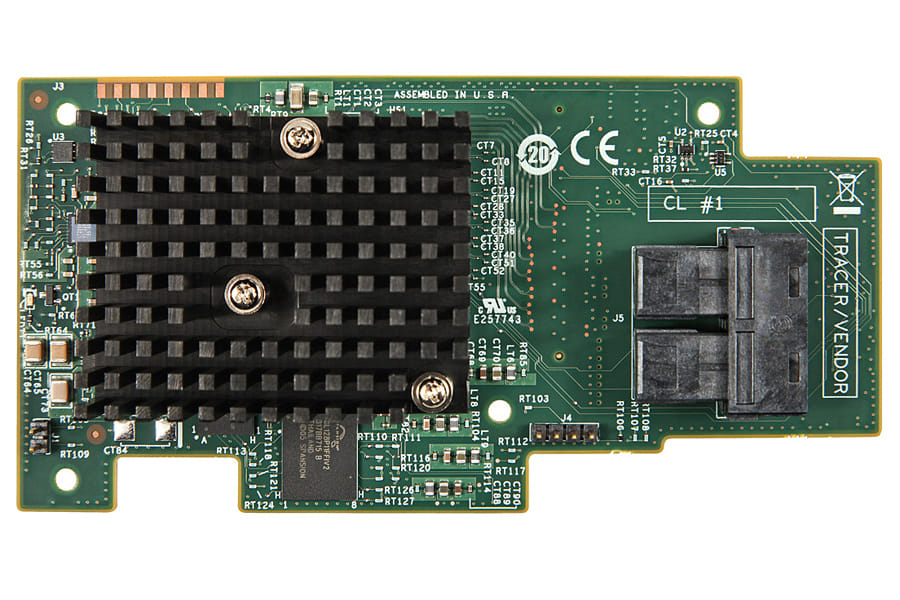

Intel RMS3CC080, SAS, Serial ATA, PCI Express x8, 12 Gbit/s, Storage Connector Module, Side, 1024 MB
A 12-Gb eight internal port SAS 3.0 mezzanine card with dual core RAID-On-Chip (ROC), RAID levels 0,1,5,6, PCIe Generation 3, and an optional Maintenance Free Backup Unit.
| Ports & interfaces | |
| Supported storage drive interfaces | SAS, Serial ATA |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express x8 |
| PCI Express slots version | 3.0 |
| Internal SAS ports | 8 |
| Performance | |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0,1,5,6,10,50,60 |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 12 Gbit/s |
| Form factor The shape or design of the product. | Storage Connector Module |
| Connector orientation | Side |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 1024 MB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR3 |
| Memory clock speed The frequency at which the memory (e.g. RAM) runs. | 1866 MHz |
| JBOD function |
 |
| Number of devices supported The amount of devices that can be used with this product. | 128 |
| Sustained data transfer rate (native) | 12288 MB/s |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
| Compatible battery backup options | AXXRMFBU5 |
| Compatible products Other products that can be used with this product. | Intel Server System R1208WT2GS Intel Server System R1208WTTGS Intel Server System R1304WT2GS Intel Server System R1304WTTGS Intel Server System R2208WT2YS Intel Server System R2208WTTYC1 Intel Server System R2208WTTYS Intel Server System R2224WTTYS Intel Server System R2308WTTYS Intel Server System R2312WTTYS Intel Server Board S2600WT2 Intel Server Board S2600WTT |
| Processor | |
| Built-in processor Whether or not a processor is built into the device. | SAS3108 |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | LSI |
| Processor model The model number for the processor in a computer. | LSISAS3108 |
| Technical details | |
| Born on date | Q3'14 |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 12288 Mbit/s |
| Launch date | Q3'14 |
| PCI Express host interface | PCIe x8 Gen3 |
| Product name | Intel Integrated RAID Module RMS3CC080 |
| Product type The sub-category of the product. | RAID |
| RAID connector orientation | Side |
| RAID keying | SIOM |
| Status | Launched |
| Last change | 63903513 |
| Expected discontinuance date | Q2'23 |
| Extended warranty available for purchase (select countries) |
 |
| Last order date | 2019-08-03 05:00:37 |
| Target market | Mainstream |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows, Linux, VMware |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 65 °C |
| Weight & dimensions | |
| Packaging content | (1) Intel Integrated RAID Module RMS3CC080, (4) standoffs, and (4) standoff locking pins |
| Logistics data | |
| Harmonized System (HS) code | 8471801000 |
| Other features | |
| PCI Card form factor Design of the PCI Card. | Full-height (low-profile) |
| Internal ports | 8 |
| Other features | Support for Premium Feature Options |
| Supported devices | SAS/SATA |
| Market segment | Server |
| RAID ARK ID | 82029 |
| Additional features | Support for optional Maintenance Free Backup Unit and Premium Feature upgrade keys. |
| SKU | 480431 |
| MPN | RMS3CC080 |
| Brand | Intel |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.intel.com.au/ |
