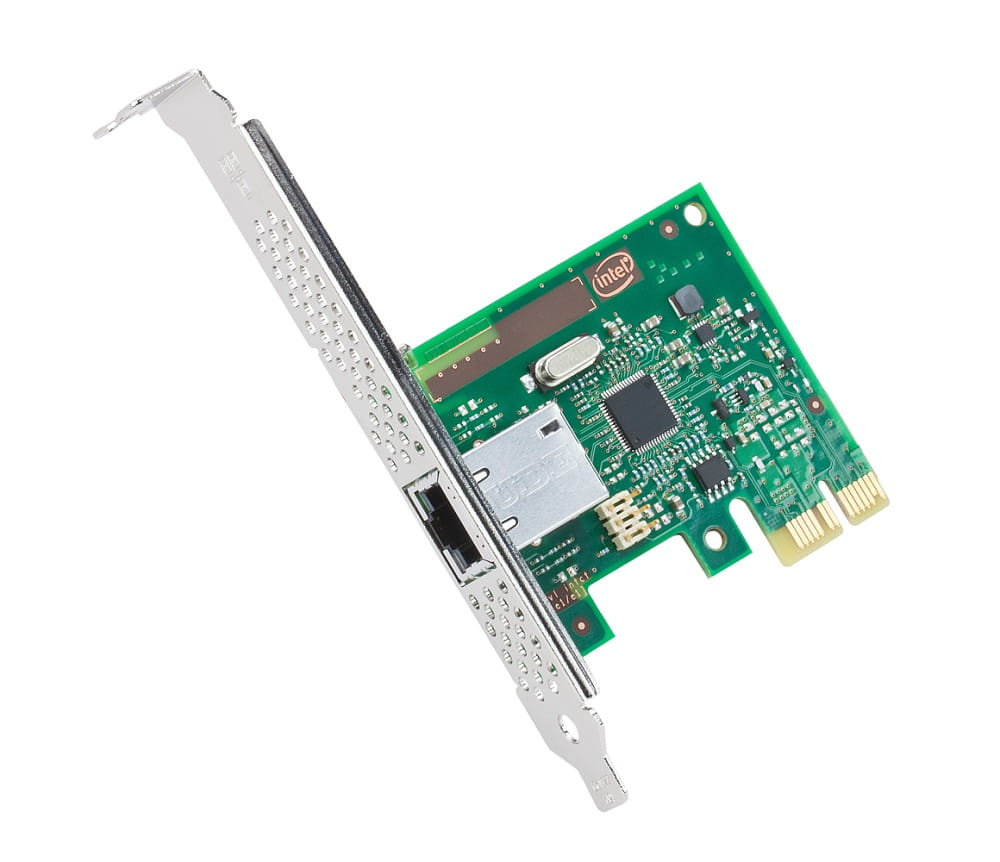

Intel I210T1, Internal, Wired, PCI Express, Ethernet
Single-Port Gigabit Ethernet server adapter designed for entry-level servers and Audio-Video applications
- Low-halogen1 single-port PCI-Express* 10/100/1000 Ethernet adapter
- Innovative power management features including Energy Effcient Ethernet (EEE), DMA Coalescing, ultra-compact design, and a unique ventilated bracket for increased effciency and reduced power consumption
- IEEE 802.1Qav Audio-Video-Bridging (AVB) for tightly controlled media stream syn-chronization, buffering, and reservation
- High-performing design supporting PCI Express* Gen 2.1 2.5GT/s
- Reliable and proven Gigabit Ethernet technology from Intel Corporation
- Low-halogen1 single-port PCI-Express* 10/100/1000 Ethernet adapter
- Innovative power management features including Energy Effcient Ethernet (EEE), DMA Coalescing, ultra-compact design, and a unique ventilated bracket for increased effciency and reduced power consumption
- IEEE 802.1Qav Audio-Video-Bridging (AVB) for tightly controlled media stream syn-chronization, buffering, and reservation
- High-performing design supporting PCI Express* Gen 2.1 2.5GT/s
- Reliable and proven Gigabit Ethernet technology from Intel Corporation
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Ethernet |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| PCI version | 2.1 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Cabling technology Type of cable technology performance. | 10/100/1000BaseT(X) |
| Maximum operating distance The maximum distance from which you can operate the device. | 100 m |
| LAN controller | Intel I210 |
| Design | |
| Internal The product is built in. |
|
| Compatible products Other products that can be used with this product. | Intel Workstation System P4304CR2LFKN, P4304CR2LFJN, P4304CR2LFGN, P4304CR2LFJNL Intel Server System P4224IP4LHKC, P4216IP4LHJC, P4208IP4LHGC, P4308IP4LHKC, P4308IP4LHJC, P4308IP4LHGC , P4308IP4LHJCL |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 65 mm |
| Depth The distance from the front to the back of something. | 20 mm |
| Height The measurement of the product from head to foot or from base to top. | 55 mm |
| Other features | |
| Cable type Type of cable e.g. electicity cable, optical cable. | RJ45 Category 5, up to 100 m |
| Market segment | Server |
| Thermal power The amount of heat that the device can generate. Often measured in watts (W). | 1 W |
| Intel Virtual Machine Device Queues (VMDq) |
 |
| PCI-SIG* SR-IOV Capable |
|
| On-chip QoS and Traffic Management |
|
| Intel Flexible Port Partitioning |
|
| Speed & slot width | 2.5 GT/s, x1 Lane |
| Low halogen options available |
|
| Intelligent Offloads |
|
| iWARP/RDMA |
|
| Fiber Channel over Ethernet |
|
| Intel Ethernet Power Management |
|
| Intel Data Direct I/O Technology |
|
| Interface type | PCIe v2.1 (2.5 GT/s) |
| Conflict-Free "Conflict free" means "DRC conflict free", which is defined by the U.S. Securities and Exchange Commission rules to mean products that do not contain conflict minerals (tin, tantalum, tungsten and/or gold) that directly or indirectly finance or benefit armed groups in the Democratic Republic of the Congo (DRC) or adjoining countries. |
|
| Born on date | Q1'13 |
| Launch date | Q1'13 |
| Network interface card cable medium | Copper |
| Network interface card type | Server |
| Product brief URL | http://www.intel.com/content/www/us/en/network-adapters/gigabit-network-adapters/ethernet-server-adapter-i210-brief.html |
| Product name | Intel Ethernet Server Adapter I210-T1 |
| Product type The sub-category of the product. | Network Interface Card |
| Status | Launched |
| Thermal Design Power (TDP) | 1 W |
| Number of QPI links | Single |
| Last change | 63903513 |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE) |
| Ethernet adapter ARK ID | 68668 |
| Harmonized System (HS) code | 85176990 |
| Export Control Classification Number (ECCN) | 5A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Controller type | Intel I210 |
| Cabling type | RJ45 Category 5, up to 100 m |
| Bracket height | Low-Profile (LP) / Full-Height (FH) |
| Product family | Intel Gigabit server adapter |
| Product series | Intel I210 |
| SKU | 684229 |
| MPN | I210T1 |
| Brand | Intel |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.intel.com.au/ |
