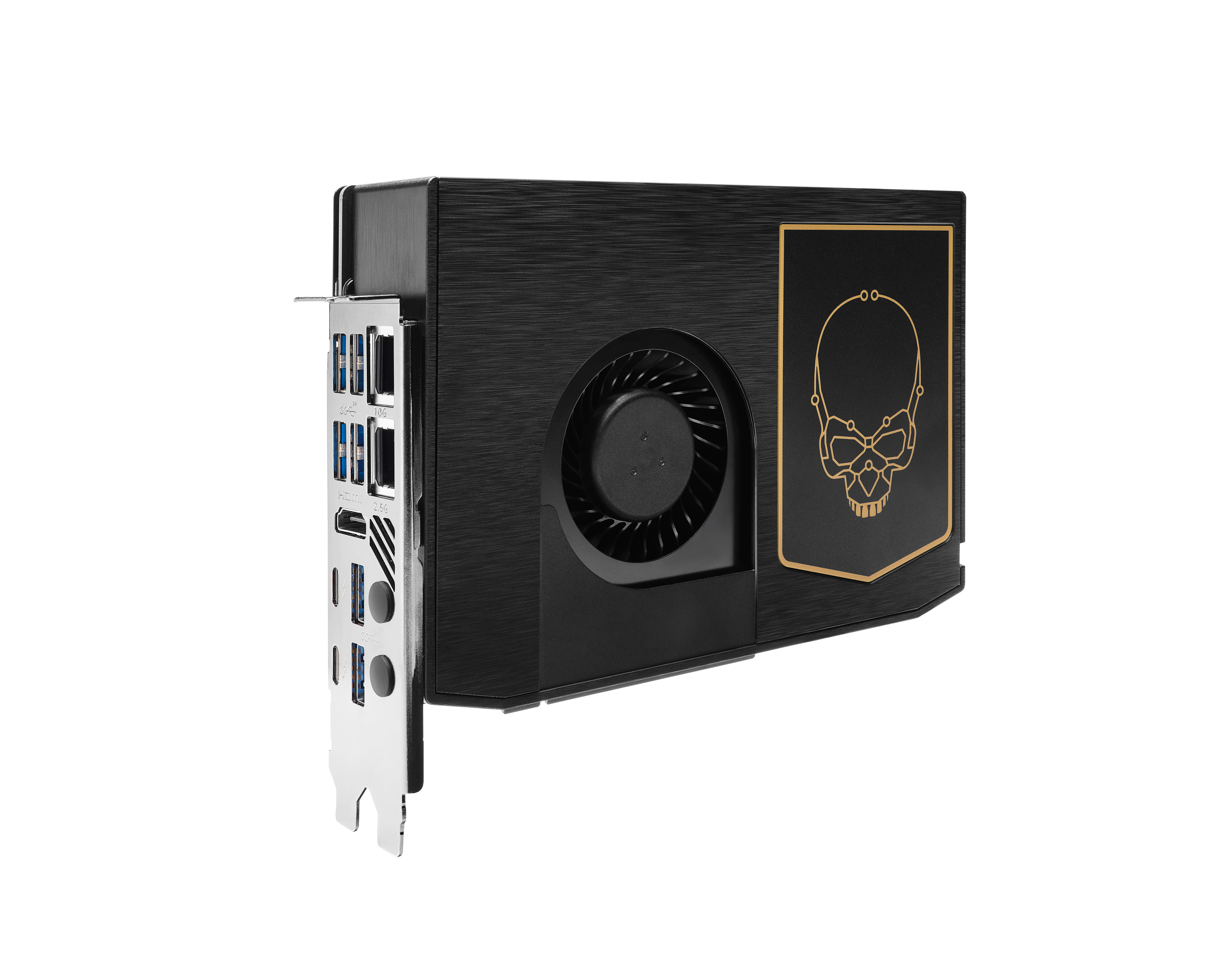

Intel NUC 12 Extreme Compute Element - NUC12EDBi7, Intel Core i7, Intel, i7-12700, 12th gen Intel Core i7, 4.9 GHz, 25 MB
The Modular Future of Extreme Gaming
A high-performance foundation for the immersive gaming experiences customers want.
Deliver Your Own Powerful Gaming Rig
Quickly add to your product offerings with just-intime system builds that reduce R&D time and lower inventory costs. And get to market fast with customized designs and uniquely branded systems that gamers want. The innovative and power-packed Intel NUC 12 Extreme Compute Element features 12th Gen Intel Core processors and cutting-edge technologies including 10Gb Ethernet, and Intel Wi-Fi 6E and Thunderbolt 4.
Along with the latest Intel Core i9/i7 processors, the Intel NUC 12 Extreme Compute Element offers up to 64GB dual-channel memory. For the first time, 10Gb Ethernet comes standard, bringing workstation-level networking to consumer gaming. Wireless gamers also get the latest and greatest, with Intel Wi-Fi 6E on select SKUs to take advantage of the new 6GHz band.
The plug-and-play simplicity of the Intel NUC 12 Compute Element makes it easy to build and brand the small, feature-rich rigs gamers want "all backed by a three-year warranty from Intel.
A high-performance foundation for the immersive gaming experiences customers want.
Deliver Your Own Powerful Gaming Rig
Quickly add to your product offerings with just-intime system builds that reduce R&D time and lower inventory costs. And get to market fast with customized designs and uniquely branded systems that gamers want. The innovative and power-packed Intel NUC 12 Extreme Compute Element features 12th Gen Intel Core processors and cutting-edge technologies including 10Gb Ethernet, and Intel Wi-Fi 6E and Thunderbolt 4.
Along with the latest Intel Core i9/i7 processors, the Intel NUC 12 Extreme Compute Element offers up to 64GB dual-channel memory. For the first time, 10Gb Ethernet comes standard, bringing workstation-level networking to consumer gaming. Wireless gamers also get the latest and greatest, with Intel Wi-Fi 6E on select SKUs to take advantage of the new 6GHz band.
The plug-and-play simplicity of the Intel NUC 12 Compute Element makes it easy to build and brand the small, feature-rich rigs gamers want "all backed by a three-year warranty from Intel.
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel® Core™ i7 |
| Processor model The model number for the processor in a computer. | i7-12700 |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 12 |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 4.9 GHz |
| Processor cache | 25 MB |
| Processor cache type | Smart Cache |
| Processor threads | 20 |
| PCI Express slots version | 5, 4.0 |
| Processor operating modes Operating modes for the processors that place restrictions on the type and scope of operations for certain processes run by the CPU. This design allows the operating system to run with more privileges than application software. | 64-bit |
| Bus type | DMI4 |
| Processor codename | Alder Lake |
| Thermal Design Power (TDP) | 65 W |
| Maximum number of PCI Express lanes | 20 |
| Tjunction | 100 °C |
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM, DDR5-SDRAM |
| Memory bandwidth supported by processor (max) | 51.2 GB/s |
| ECC supported by processor |
 |
| Memory | |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR4-SDRAM |
| Maximum internal memory The maximum internal memory which is available in the product. | 64 GB |
| Memory slots Number and type of memory expansion slots, including connector and memory module descriptions. | 2x SO-DIMM |
| Memory clock speed The frequency at which the memory (e.g. RAM) runs. | 3200 MHz |
| Memory bandwidth (max) | 51.2 GB/s |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
 |
| Memory channels | Dual-channel |
| Supported memory types Types of memory which can be used with the product. | DDR4-SDRAM |
| Storage | |
| Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive). | SSD |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 3 |
| SSD interface The type of interface(s) with which the Solid State Drive is connected to other hardware. | M.2 |
| Graphics | |
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
|
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Intel UHD Graphics 770 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1500 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x4680 |
| On-board graphics card 4K support |
|
| Discrete graphics card |
|
| Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters. | Not available |
| Number of displays supported The number of displays that can be used with this product. | 3 |
| Number of displays supported (on-board graphics) The feature may not be available on all computing systems. Functionality, performance, and other benefits of this feature may vary depending on system configuration. | 3 |
| Network | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | Wi-Fi 6E (802.11ax) |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10000 Mbit/s |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| Thunderbolt 4 ports quantity | 2 |
| HDMI version | 2.0b |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Number of SATA III connectors Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface. | 2 |
| USB ports quantity | 13 |
| Performance | |
| Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard. | Intel Z690 |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Silver |
| BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS. | EEPROM |
| Status | Launched |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| ARK ID | 216960 |
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. |
|
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows 10, 64-bit* |
| Processor special features | |
| Intel® AES New Instructions (Intel® AES-NI) <b>Added Security with Faster Data Encryption</b> The Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) enable fast and secure data encryption and decryption for better performance and less risk from timing and cache-based attacks than table-based software implementations. Intel AES-NI supports usages such as standard key lengths, standard modes of operation, and even some nonstandard or future variants. |
|
| Enhanced Intel SpeedStep Technology |
|
| Execute Disable Bit |
|
| Idle States |
|
| Intel Trusted Execution Technology |
|
| Intel VT-x with Extended Page Tables (EPT) |
|
| Embedded options available |
|
| Intel Rapid Storage Technology |
|
| Intel 64 |
|
| Intel Stable Image Platform Program (SIPP) |
|
| Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Intel® Optane™ Memory Ready |
|
| Intel® Platform Trust Technology (Intel® PTT) Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0. |
|
| Intel® vPro™ Platform Eligibility |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 35 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 202 mm |
| Depth The distance from the front to the back of something. | 131 mm |
| Height The measurement of the product from head to foot or from base to top. | 39 mm |
| Technical details | |
| Sustainability certificates | China Energy Label (CEL), ENERGY STAR, ErP, REACH, RoHS |
| Introduction year | 2022 |
| Logistics data | |
| Harmonized System (HS) code | 8471500150 |
| SKU | 697877 |
| MPN | BNUC12EDBI70000 |
| Brand | Intel |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.intel.com.au/ |
