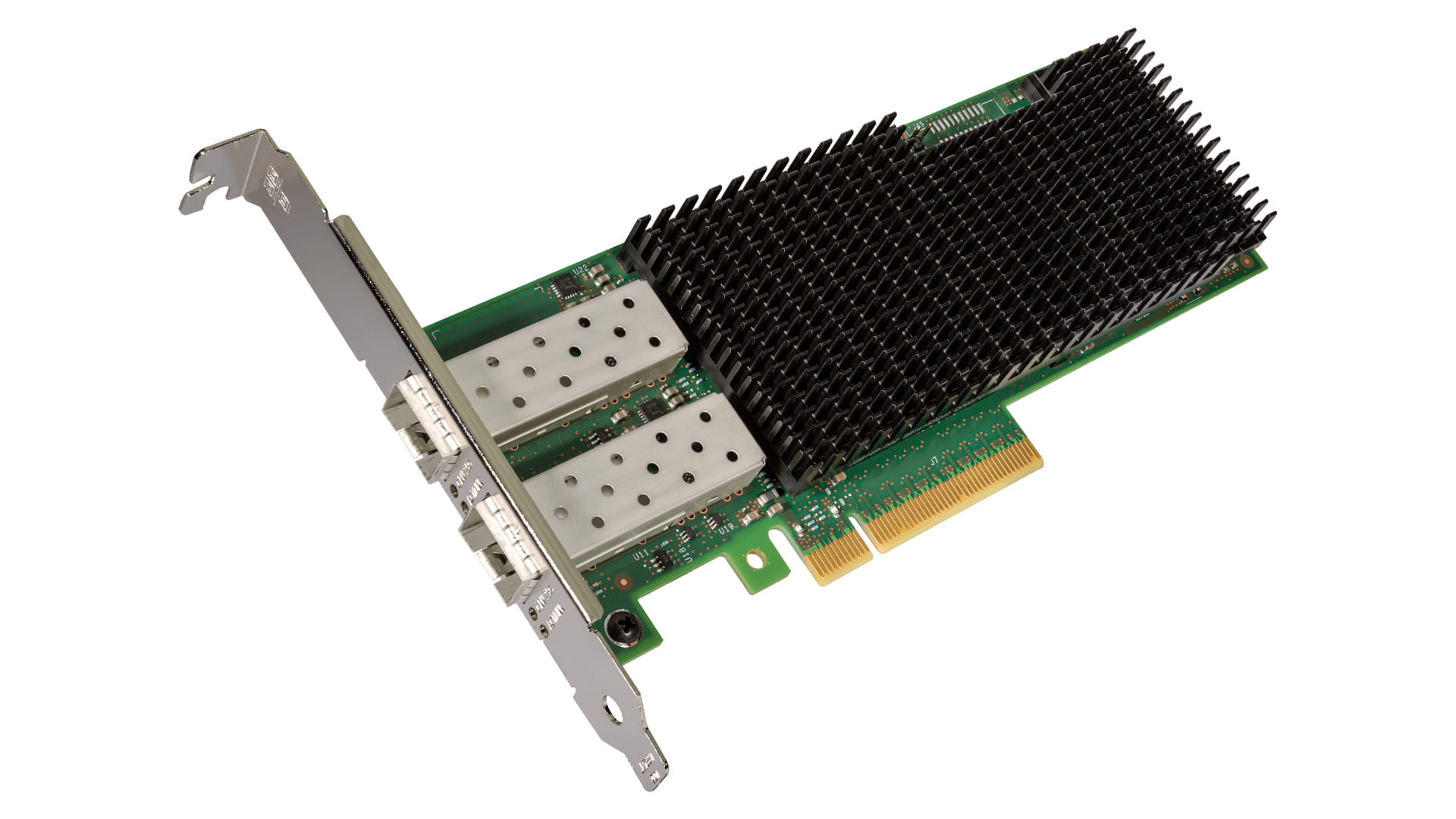

Intel XXV710DA2, Internal, Wired, PCI Express, Fiber, 25000 Mbit/s, Black, Green
Intel Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Fiber |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 2 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SFP28 |
| PCI version | 3.0 |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 25000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q,IEEE 802.1Qbg,IEEE 802.1p,IEEE 802.3,IEEE 802.3ad |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 1000,10000,25000 Mbit/s |
| VLAN tagging |
|
| iSCSI support |
|
| Maximum operating distance The maximum distance from which you can operate the device. | 5 m |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Green |
| Internal The product is built in. |
|
| System requirements | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Other operating systems supported | VMware vSphere ESXi |
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 167 mm |
| Height The measurement of the product from head to foot or from base to top. | 68.7 mm |
| Other features | |
| Data transfer rate | 8 GT/s |
| Cable type Type of cable e.g. electicity cable, optical cable. | SFP28 Direct Attach twinaxial cabling up to 5m / SFP28 SR & LR Optics also supported |
| Target market | Artificial Intelligence, High Performance Computing |
| Intel Virtual Machine Device Queues (VMDq) |
|
| PCI-SIG* SR-IOV Capable |
|
| On-chip QoS and Traffic Management |
|
| Intel Flexible Port Partitioning |
|
| Speed & slot width | 8.0 GT/s, x8 Lane |
| Low halogen options available |
 |
| Intelligent Offloads |
|
| iWARP/RDMA |
|
| Intel Data Direct I/O Technology |
|
| Intel Virtualization Technology for Connectivity (VT-c) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Interface type | PCIe v3.0 (8.0 GT/s) |
| Storage Over Ethernet | iSCSI, NFS |
| Launch date | Q1'17 |
| Market segment | Server |
| Network interface card cable medium | Copper |
| Network interface card type | Server |
| Product brief URL | http://www.intel.com/content/www/us/en/ethernet-products/network-adapters/ethernet-xxv710-brief.html |
| Product type The sub-category of the product. | Network Interface Card |
| Status | Launched |
| Last change | 64826842 |
| Ethernet adapter ARK ID | 95260 |
| Harmonized System (HS) code | 8517620090 |
| Export Control Classification Number (ECCN) | 5A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Cabling type | SFP28 Direct Attach twinaxial cabling up to 5m / SFP28 SR & LR Optics also supported |
| Bracket height | Low-Profile (LP) / Full-Height (FH) |
| Product family | Intel® 25 Gigabit Server Adapters |
| Product series | 700 Series Network Adapters (up to 40GbE) |
| SKU | 533993 |
| MPN | XXV710DA2 |
| Brand | Intel |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.intel.com.au/ |
