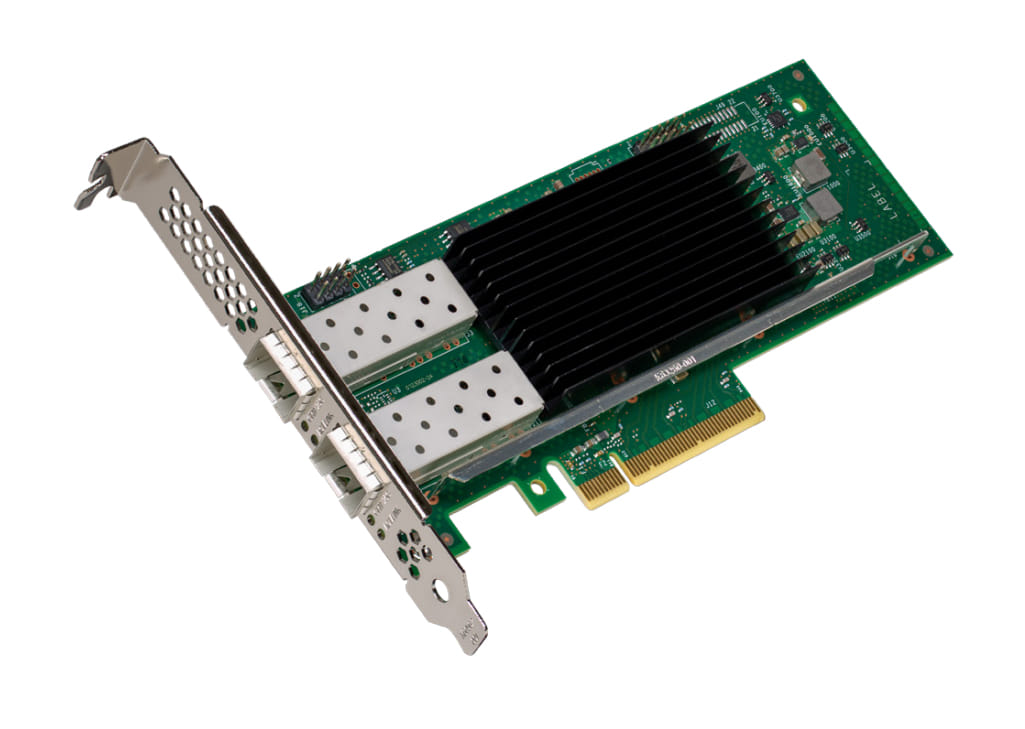

Intel E810 XXVDA2, Internal, Wired, PCI Express, Fiber, Black, Green, Silver
iWARP/RDMA
iWARP delivers converged, low latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
Intel Data Direct I/O Technology
Intel Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
PCI SIG* SR IOV Capable
Single Root I/O Virtualization (SR IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
iWARP delivers converged, low latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
Intel Data Direct I/O Technology
Intel Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
PCI SIG* SR IOV Capable
Single Root I/O Virtualization (SR IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Fiber |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 2 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SFP28 |
| PCI version | 4.0 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 1588, IEEE 1588v2, IEEE 802.1p |
| Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 1000,10000,25000 Mbit/s |
| Quality of Service (QoS) support |
 |
| LAN controller | Intel E810 |
| Design | |
| Component for What this product is used as a part of (component for). | Server |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Green, Silver |
| Internal The product is built in. |
|
| LED indicators | Activity, Link |
| Certification | FCC B, UL, CE, VCCI, BSMI, RCM, KCC |
| System requirements | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | https://www.intel.com/content/www/us/en/support/articles/000025890/ethernet-products.html |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 167 mm |
| Depth The distance from the front to the back of something. | 68 mm |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Cable type Type of cable e.g. electicity cable, optical cable. | SFP28 ports - DAC, Optics, and AOC's |
| Intel Virtual Machine Device Queues (VMDq) |
|
| PCI-SIG* SR-IOV Capable |
|
| On-chip QoS and Traffic Management |
|
| Intel Flexible Port Partitioning |
|
| Speed & slot width | 16.0 GT/s, x8 Lane |
| Intelligent Offloads |
|
| iWARP/RDMA |
|
| Intel Data Direct I/O Technology |
|
| Intel Virtualization Technology for Connectivity (VT-c) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Storage Over Ethernet | iSCSI, NFS |
| Launch date | Q3'20 |
| Network interface card cable medium | Copper, Fiber |
| Network interface card type | Server |
| Status | Launched |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | 800 Network Adapters (up to 100GbE)-800 Network Adapters (up to 100GbE) |
| Ethernet adapter ARK ID | 189760 |
| Export Control Classification Number (ECCN) | 5A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Bracket height | Low-Profile (LP) / Full-Height (FH) |
| Product series | 800 Series Network Adapters (up to 100GbE) |
| SKU | 744557 |
| MPN | E810XXVDA2 |
| Brand | Intel |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.intel.com.au/ |
