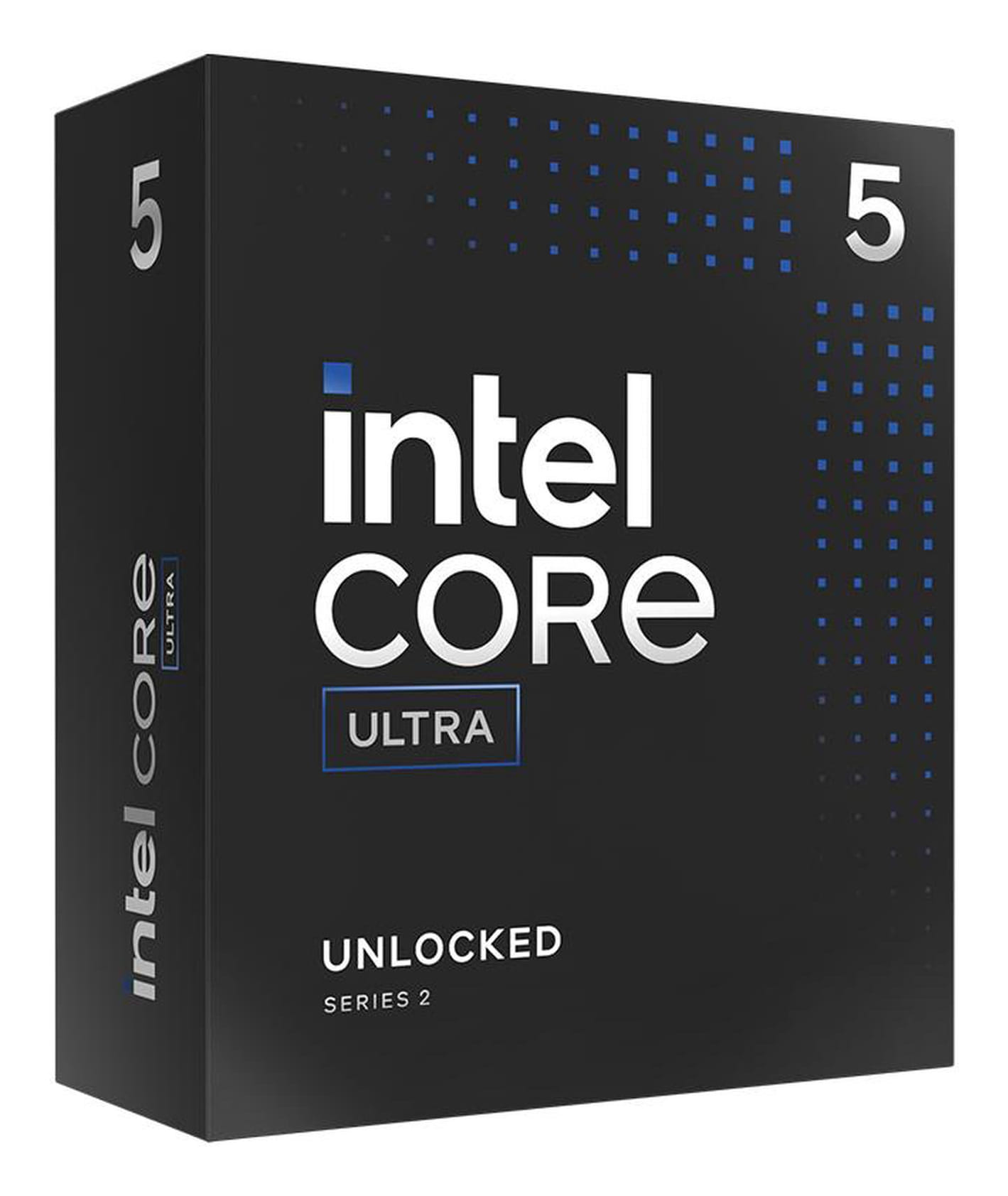

Intel Core Ultra 5 245KF, Intel Core Ultra 5, FCLGA1851, Intel, 245KF, 64-bit, Intel Core Ultra (Series 2)
Intel Core Ultra 5 245KF. Processor family: Intel Core Ultra 5, Processor socket: FCLGA1851, Processor manufacturer: Intel. Neural processor unit (NPU): Intel AI Boost, AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN, Total processor performance up to: 22 TOPs. Memory channels: Dual-channel, Maximum internal memory supported by processor: 192 GB, Memory types supported by processor: DDR5-SDRAM. Market segment: Desktop, Use conditions: PC/Client/Tablet, PCI Express slots version: 4.0, 5.0. L2 cache: 26624 KB, Maximum internal memory: 192 GB
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model The model number for the processor in a computer. | 245KF |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel Core Ultra 5 |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 14 |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | FCLGA1851 |
| Processor operating modes Operating modes for the processors that place restrictions on the type and scope of operations for certain processes run by the CPU. This design allows the operating system to run with more privileges than application software. | 64-bit |
| Performance cores | 6 |
| Efficient cores | 8 |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 5.2 GHz |
| Performance-core boost frequency | 5.2 GHz |
| Performance-core base frequency | 4.2 GHz |
| Efficient-core boost frequency | 4.6 GHz |
| Efficient-core base frequency | 3.6 GHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Box Plastic or metal shell/container for components. |
 |
| Cooler included The device comes with an integrated cooler. |
 |
| Processor base power | 125 W |
| Maximum turbo power | 159 W |
| AI software frameworks supported by CPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Stepping | B0 |
| Maximum number of DMI lanes | 8 |
| Processor codename | Arrow Lake |
| Processor ARK ID | 241066 |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support |
|
| Windows Studio effects support |
|
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 22 TOPs |
| NPU performance up to | 13 TOPs |
| Memory | |
| Maximum internal memory supported by processor | 192 GB |
| Memory types supported by processor | DDR5-SDRAM |
| Memory clock speeds supported by processor | 6400 MHz |
| Memory channels | Dual-channel |
| Graphics | |
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
|
| Discrete graphics card |
|
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Not available |
| Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters. | Not available |
| Features | |
| Execute Disable Bit |
|
| Idle States |
|
| Thermal Monitoring Technologies |
|
| Market segment | Desktop |
| Use conditions | PC/Client/Tablet |
| Maximum number of PCI Express lanes | 24 |
| PCI Express slots version | 4.0, 5.0 |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Scalability | 1S |
| Embedded options available |
|
| Thermal solution specification Intel Reference Heat Sink specification for proper operation of this SKU. | PCG 2020A |
| Direct Media Interface (DMI) Revision | 4.0 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
| Processor special features | |
| Intel® Turbo Boost Technology <b>Higher Performance When You Need It Most</b> Intel® Turbo Boost Technology 2.0 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration. | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) <b>Added Security with Faster Data Encryption</b> The Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) enable fast and secure data encryption and decryption for better performance and less risk from timing and cache-based attacks than table-based software implementations. Intel AES-NI supports usages such as standard key lengths, standard modes of operation, and even some nonstandard or future variants. |
|
| Enhanced Intel SpeedStep Technology |
|
| Intel Trusted Execution Technology |
|
| Intel® Speed Shift Technology Intel® Speed Shift Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency. |
|
| Intel® Thunderbolt 4 |
|
| Intel® Control-flow Enforcement Technology (CET) |
|
| Intel® Thread Director |
|
| Intel VT-x with Extended Page Tables (EPT) |
|
| Intel® Secure Key <b>Generate Cryptographic Security Protocols</b> Intel® Secure Key is a security hardware-based random number generator that can generate high-quality keys for cryptographic (encryption and decryption) protocols. These keys provide quality entropy that is highly sought after in the cryptography world for added security. |
|
| Intel® OS Guard <b>Protect Your Operating Environment</b> Intel® OS Guard, a hardware-based security feature that protects the operating system kernel, defends against malicious data or attack code located in areas of memory marked as user mode pages, preventing any application from taking over or compromising the OS kernel. |
|
| Intel 64 |
|
| Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Intel® Boot Guard Intel® Device Protection Technology with Boot Guard helps protect the system’s pre-OS environment from viruses and malicious software attacks. |
|
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU |
|
| Intel® Volume Management Device (VMD) |
|
| Mode-based Execute Control (MBE) |
|
| Intel® Standard Manageability (ISM) |
|
| Operational conditions | |
| Maximum operating temperature | 105 °C |
| Logistics data | |
| Harmonized System (HS) code | 8542310050 |
| Technical details | |
| Launch date | Q4'24 |
| Status | Launched |
| Memory speed (max) | 6400 MHz |
| Other features | |
| L2 cache The CPU cache (Level 2) is a smaller, faster memory which stores copies of the data from the most frequently used main memory locations. | 26624 KB |
| Maximum internal memory The maximum internal memory which is available in the product. | 192 GB |
| SKU | 806973 |
| MPN | BX80768245KF |
| Brand | Intel |
| Product Condition | Brand New/Unused |
| CPU Socket | LGA 1851 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.intel.com.au/ |
