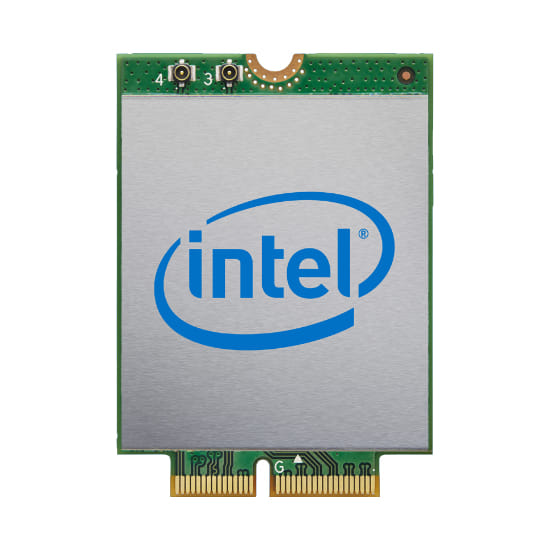

Intel Wi Fi 6E AX411, Internal, Wireless, M.2, WLAN, Wi Fi 6E (802.11ax), 2400 Mbit/s
MU MIMO
Multi user MIMO (MU MIMO) is a set of multiple input and multiple output technologies for wireless communication, in which a set of users or wireless terminals, each with one or more antennas, communicate with each other.
Orthogonal Frequency Division Multiple Access (OFDMA)
Orthogonal Frequency Division Multiple Access (OFDMA) is a multi user version of the popular orthogonal frequency division multiplexing (OFDM) digital modulation scheme. This allows simultaneous low data rate transmission from several users.
Multi user MIMO (MU MIMO) is a set of multiple input and multiple output technologies for wireless communication, in which a set of users or wireless terminals, each with one or more antennas, communicate with each other.
Orthogonal Frequency Division Multiple Access (OFDMA)
Orthogonal Frequency Division Multiple Access (OFDMA) is a multi user version of the popular orthogonal frequency division multiplexing (OFDM) digital modulation scheme. This allows simultaneous low data rate transmission from several users.
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wireless |
| Host interface Interface that enables a host controller to communicate with a driver. | M.2 |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | WLAN |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 2400 Mbit/s |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | Wi-Fi 6E (802.11ax) |
| MU-MIMO |
|
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 5.2 |
| Design | |
| Component for What this product is used as a part of (component for). | PC/Laptop |
| Internal The product is built in. |
|
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | 2x2 |
| Package size | 22 x 30 x 2.4 mm |
| System requirements | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows 10, 64-bit*|Linux* |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 11 x64, Windows 10 x64 |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 80 °C |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.8 g |
| Logistics data | |
| Harmonized System (HS) code | 8517620090 |
| Other features | |
| Maximum operating temperature | 80 °C |
| Supported Under vPro |
|
| Launch date | Q4'21 |
| Status | Launched |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel Wi-Fi 6E (Gig+) |
| Export Control Classification Number (ECCN) | 5A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Compliance | FIPS, FISMA |
| SKU | 750482 |
| MPN | AX411.NGWG |
| Brand | Intel |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.intel.com.au/ |
