Intel 256GB SSD, 760P Series, M.2(PCIE), Read up to 3200MB/s, Write up to 1600MB/s, 3D TLC NAND
***This is an OEM product, with no retail packaging or power cord included.

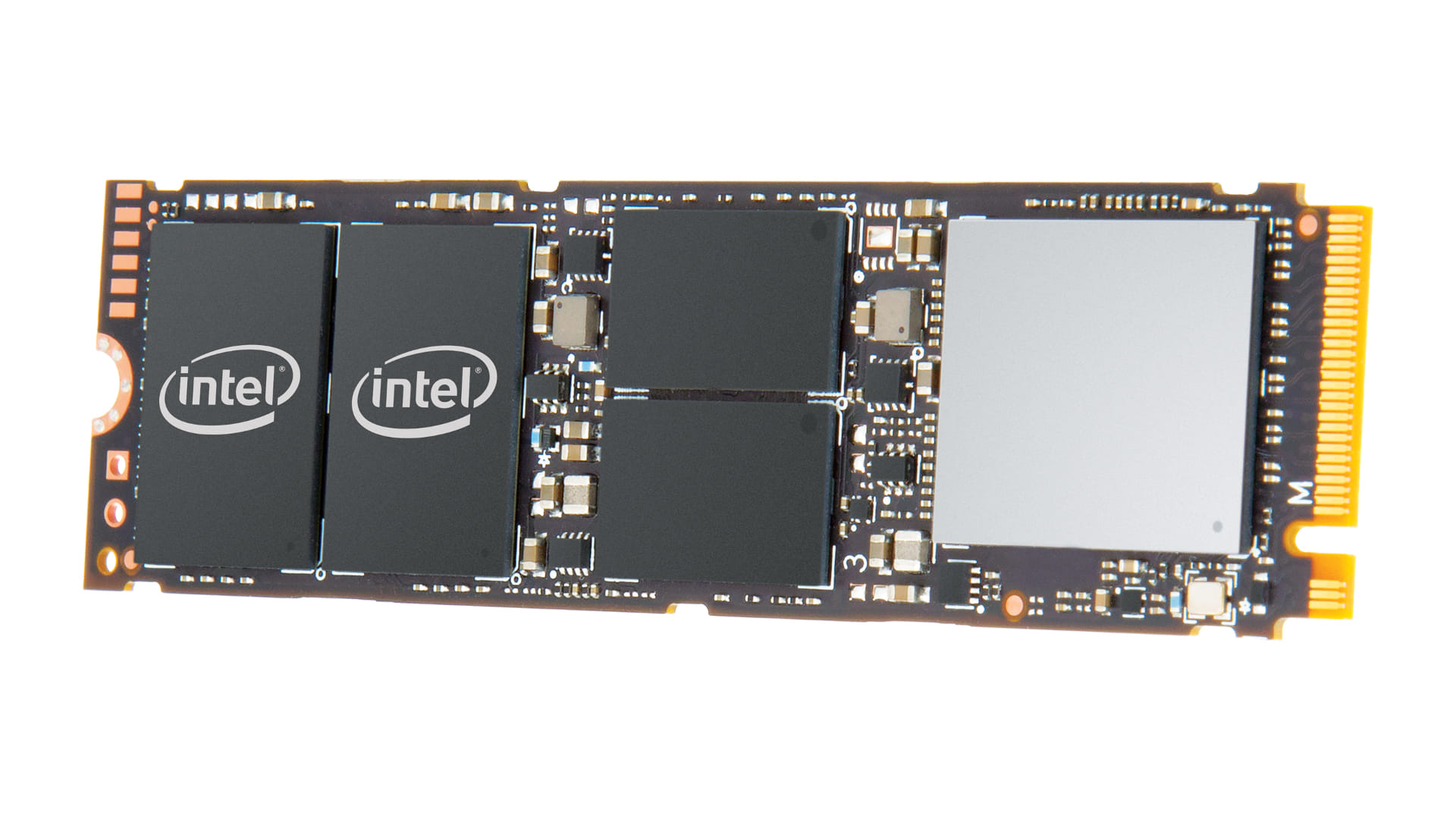

Intel 760P Series SSD, M.2 80mm PCIe, 256GB, OEM PACK
| Features | |
| NVMe version | 3.1 |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 256-bit AES |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| SSD capacity The Solid State Drive's data storage capacity. | 256 GB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 3.1 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D2 TLC |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Component for What this product is used as a part of (component for). | Server/workstation |
| Hardware encryption |
|
| Lithography | 3D2 TLC |
| PCI Express interface data lanes | x4 |
| End-to-End Data Protection |
|
| Enhanced Power Loss Data Protection technology |
 |
| SSD temperature monitoring |
|
| Temperature monitoring and logging |
|
| Uncorrectable Bit Error Rate (UBER) | <1 sector per 10^15 bits read |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 1600000 h |
| TBW rating | 144 |
| Market segment | MBL |
| SSD ARK ID | 134583 |
| Harmonized System (HS) code | 8471706000 |
| Power | |
| Power consumption (read) | 0.05 W |
| Power consumption (write) | 0.05 W |
| Power consumption (idle) | 0.025 W |
| Brand-specific features | |
| Intel High Endurance Technology (HET) |
|
| Intel® Rapid Start Technology <b>Get Up and Running in Seconds</b> Stop waiting for your PC to wake up, and get a computing experience that is instantly on and ready to go with Intel® Rapid Start Technology. This technology saves a snapshot of your activity on the SSD, preparing the system with previously saved active memory pages so that you can resume your work, Internet activity, or paused movie right where you left off. |
|
| Intel® Remote Secure Erase |
|
| Intel® Smart Response Technology <b>Fast Access to Frequently Used Applications</b> Intel® Smart Response Technology enables a high-performance, cost-effective storage solution using either a dual solid-state and hard drive or a solid state hybrid drive (SSHD). By recognizing which data and applications are used most, Intel Smart Response Technology boosts hard drive performance so that you can create, work, and play faster than ever. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Maximum operating temperature | 70 °C |
| Operating vibration Environmental requirements for vibration in operating mode | 2.17 G |
| Non-operating vibration Environmental requirements for vibration in non-operating mode | 3.13 G |
| Operating shock Environmental requirements for optimal protection from impact in operating mode | 1000 G |
| Non-operating shock Environmental requirements for optimal protection from impact in non-operating mode | 1000 G |
| Operating / non-operating shock | 1000 G |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 22 mm |
| Depth The distance from the front to the back of something. | 80 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 10 g |
| Other features | |
| Born on date | Q1'18 |
| Drive capacity | 256 |
| Launch date | Q1'18 |
| Random write (8GB span) | 265000 IOPS |
| SSD power consumption (idle) | 25 mW |
| SSD weight | <10 grams |
| Sequential reading | 3210 MB/s |
| Sequential writing speed | 1315 MB/s |
| Status | Launched |
| Random read (8GB span) | 205000 IOPS |
| Last change | 47321066 |
| Intel Rapid Start Technology version | 1.00 |
| Product family | Consumer SSD |
| Product series | Intel® SSD 760p Series |
| Product codename | Harris Harbor |
| SKU | 238896 |
| MPN | SSDPEKKW256G8XT |
| Brand | Intel |
| Product Condition | Brand New/Unused |
