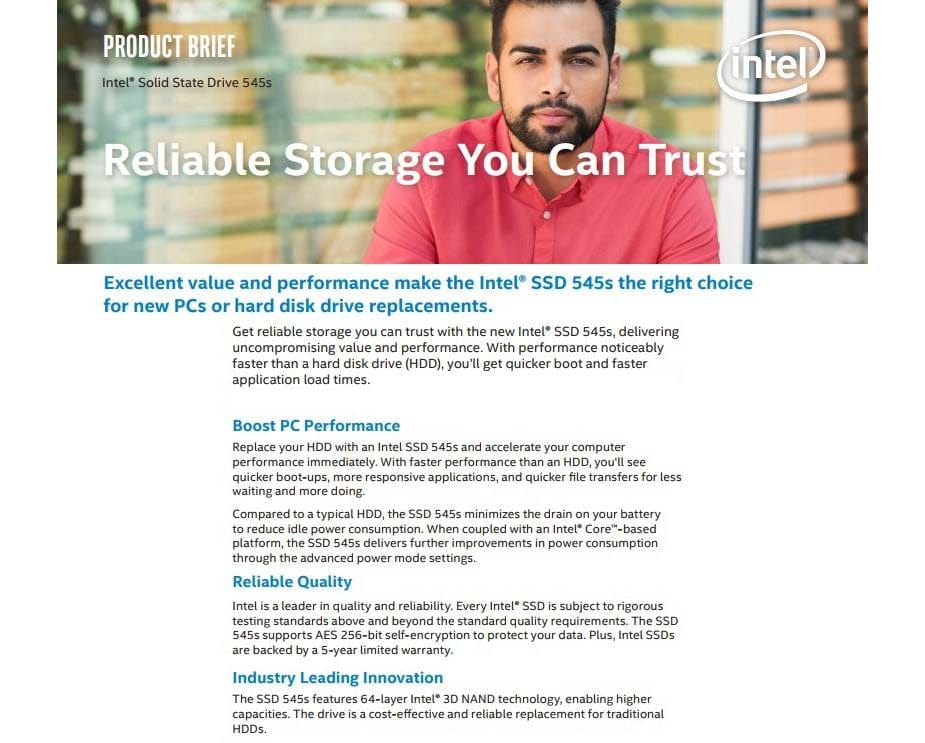

Boost PC PerformanceReplace your HDD with an Intel® SSD 545s and accelerate your computer performance immediately. With faster performance than an HDD, you'll see quicker boot-ups, more responsive applications, and quicker file transfers for less waiting and more doing.
Intel 545S Series 256GB M.2 80mm SATA 6Gb/s SSD - Boost PC PerformanceReplace your HDD with an Intel® SSD 545s and accelerate your computer performance immediately. With faster performance than an HDD, you'll see quicker boot-ups, more responsive applications, and quicker file transfers for less waiting and more doing.

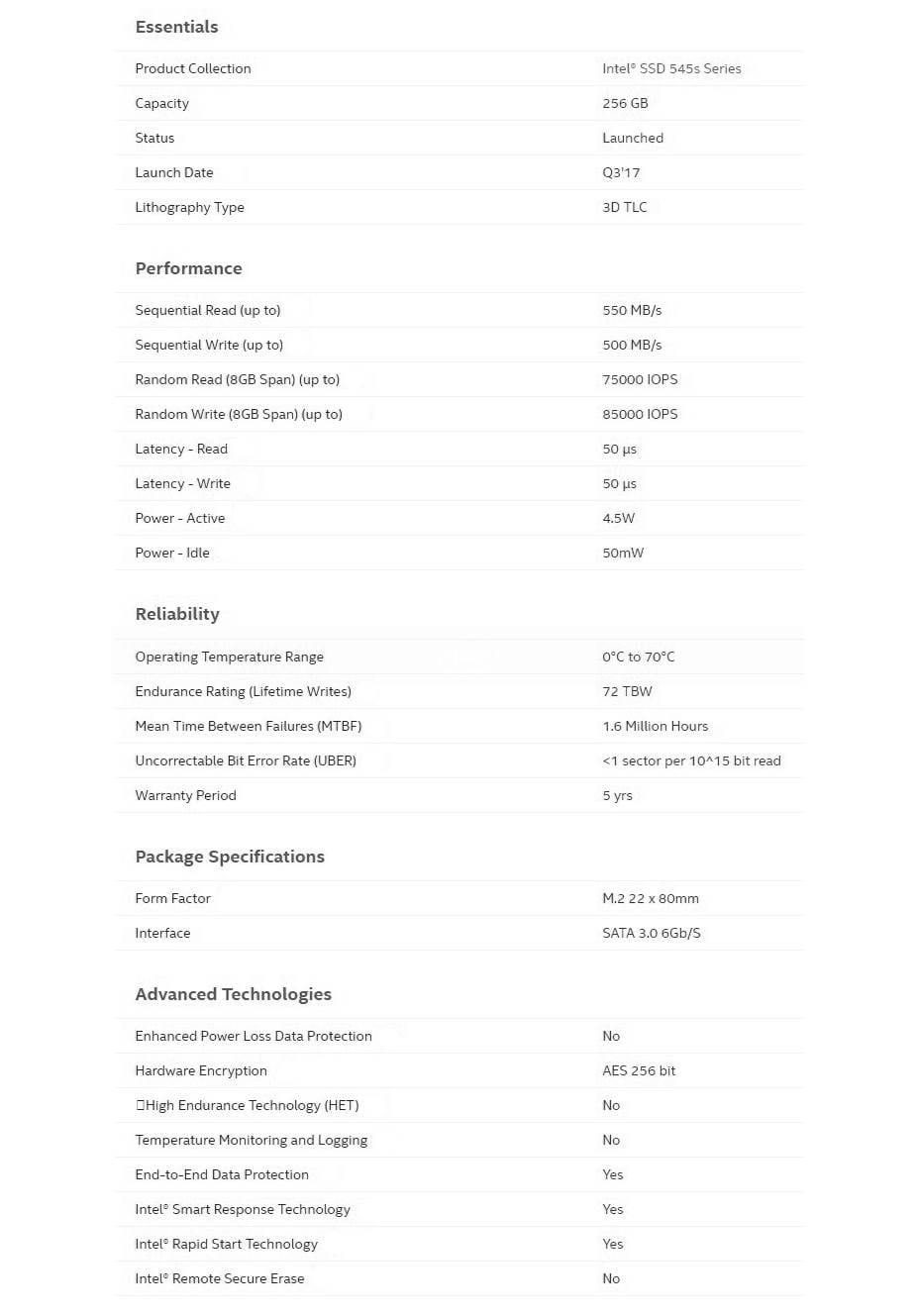

| Features | |
| NAND flash type | TLC (Triple Level Cell) |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 256-bit AES |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| SSD capacity The Solid State Drive's data storage capacity. | 256 GB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Serial ATA III |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D TLC |
| Component for What this product is used as a part of (component for). | PC/notebook |
| Hardware encryption |
 |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 6 Gbit/s |
| Read speed The speed at which a device can read data. | 550 MB/s |
| Write speed The speed at which a device can write data. | 500 MB/s |
| Read latency | 50 µs |
| Write latency | 50 µs |
| Lithography | 3D TLC |
| End-to-End Data Protection |
|
| Enhanced Power Loss Data Protection technology |
 |
| SSD temperature monitoring |
|
| Temperature monitoring and logging |
|
| Uncorrectable Bit Error Rate (UBER) | <1 sector per 10^15 bits read |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 1600000 h |
| Market segment | MBL |
| SSD usage tag | Consumer |
| SSD ARK ID | 125021 |
| Harmonized System (HS) code | 8471706000 |
| Power | |
| Power consumption (average) | 4.5 W |
| Power consumption (idle) | 0.05 W |
| Brand-specific features | |
| Intel High Endurance Technology (HET) |
|
| Intel® Rapid Start Technology <b>Get Up and Running in Seconds</b> Stop waiting for your PC to wake up, and get a computing experience that is instantly on and ready to go with Intel® Rapid Start Technology. This technology saves a snapshot of your activity on the SSD, preparing the system with previously saved active memory pages so that you can resume your work, Internet activity, or paused movie right where you left off. |
|
| Intel® Remote Secure Erase |
|
| Intel® Smart Response Technology <b>Fast Access to Frequently Used Applications</b> Intel® Smart Response Technology enables a high-performance, cost-effective storage solution using either a dual solid-state and hard drive or a solid state hybrid drive (SSHD). By recognizing which data and applications are used most, Intel Smart Response Technology boosts hard drive performance so that you can create, work, and play faster than ever. |
|
| Intel Smart Response Technology version | 1.00 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Maximum operating temperature | 70 °C |
| Operating / non-operating shock | 1500 G (Max) at 0.5 msec |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 22 mm |
| Depth The distance from the front to the back of something. | 80 mm |
| Other features | |
| Product colour The colour e.g. red, blue, green, black, white. | Green |
| Born on date | Q3'17 |
| Drive capacity | 256 GB |
| Launch date | Q3'17 |
| Product brief URL | https://www.intel.com/content/www/us/en/support/articles/000005884/memory-and-storage.html |
| Random write (8GB span) | 85000 IOPS |
| SSD endurance rating | 144 TBW |
| SSD hardware encryption | AES 256 bit |
| SSD power consumption (active) | 4.5W |
| SSD power consumption (idle) | 40mW |
| SSD shock | 1500 G (Max) at 0.5 msec |
| SSD weight | 6 grams |
| Sequential reading | 550 MB/s |
| Sequential writing speed | 500 MB/s |
| Status | Launched |
| Random read (8GB span) | 75000 IOPS |
| Last change | 63903513 |
| Intel Rapid Start Technology version | 1.00 |
| Remote Secure Erase (RSE) technology version | 0.00 |
| Product family | Consumer SSD |
| Product series | Intel® SSD 545s Series |
| Product codename | Liberty Harbor |
| SKU | 230888 |
| MPN | SSDSCKKW256G8X1 |
| Brand | Intel |
| Product Condition | Brand New/Unused |
| Product Use | Gaming, Business |
