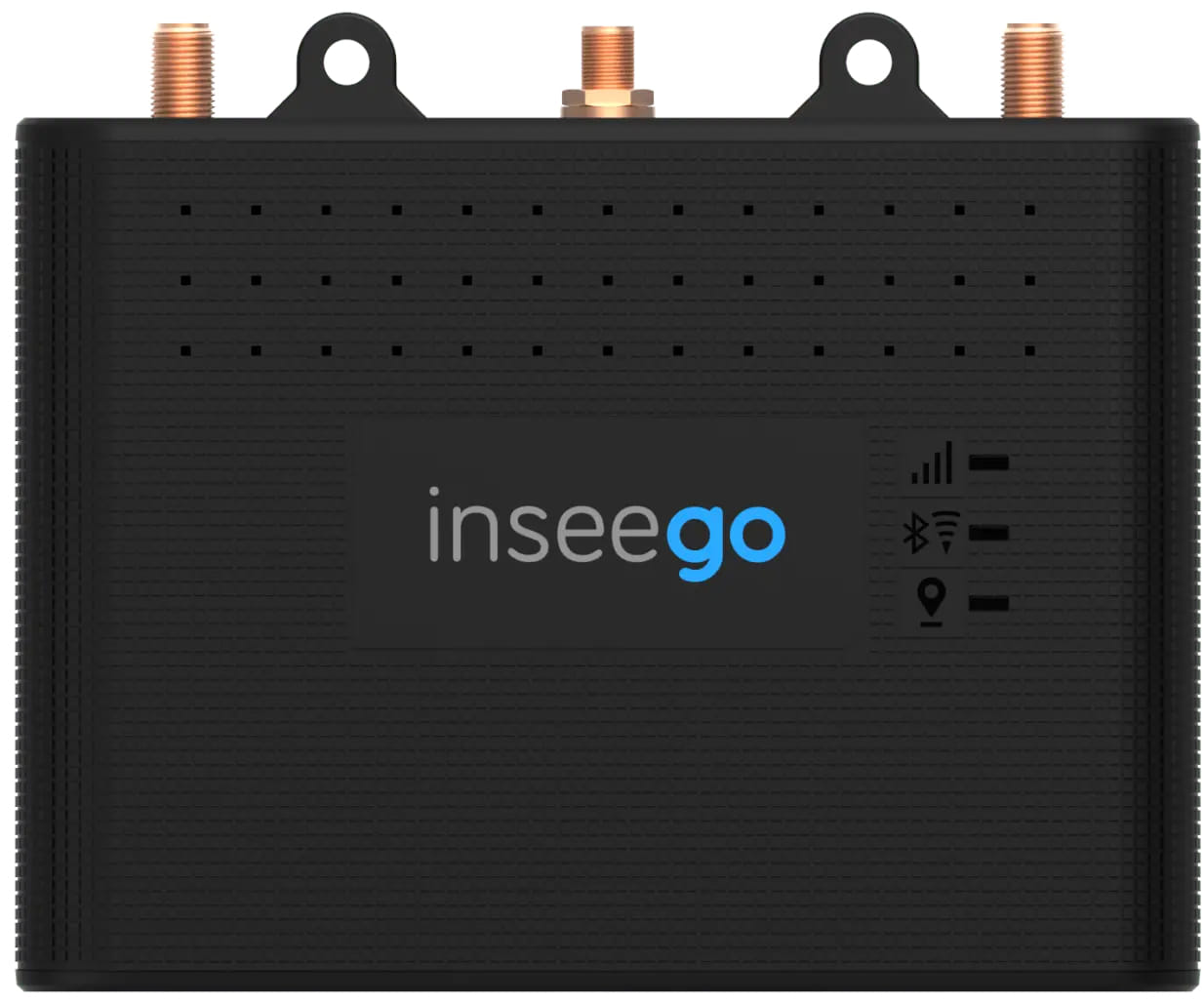

Inseego Skyus 160, Black, GCF, PTCRB (General), IC, cUL (Canada), CE RED, e-Mark, Halogen Free, REACH, RoHS, WEEE (EU), ..., External, SMA, Skyus Web UI, 10,100 Mbit/s
Multi-carrier support for demanding workloads and environments
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | GCF, PTCRB (General), IC, cUL (Canada), CE RED, e-Mark, Halogen Free, REACH, RoHS, WEEE (EU), FCC, UL, Ozone Depleting, CA BCS, CA Prop 65 (USA) |
| Features | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | External |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | SMA |
| Antennas quantity | 3 |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Skyus Web UI |
| GPS (satellite) Global Positioning System (GPS) is a space-based satellite navigation system that provides location and time information in all weather conditions, anywhere on or near the Earth where there is an unobstructed line of sight to four or more GPS satellites. The system provides critical capabilities to military, civil and commercial users around the world. It is maintained by the United States government and is freely accessible to anyone with a GPS receiver. |
 |
| Performance | |
| Control display unit |
 |
| Network | |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| 4G LTE category | 6 |
| Mobile network generation | 5G |
| Data network Telecommunications network that allows computers to exchange data. | 3G, 4G, 5G |
| Downlink/uplink speed | 300 - 50 Mbit/s |
| VPN support | VPN Passthrough |
| Security | |
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Ports & interfaces | |
| SIM card slot Whether the device features a SIM card slot. |
|
| SIM card type | NanoSIM |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 5 - 32 V |
| Input current | 1 A |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| DC input voltage | 9 - 32 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 118 mm |
| Depth The distance from the front to the back of something. | 98 mm |
| Height The measurement of the product from head to foot or from base to top. | 33 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 240 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| SKU | 756032 |
| MPN | 649496025380 |
| Brand | Inseego |
| Product Condition | Brand New/Unused |
| Wired/Wireless | Wired |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | N/A |
