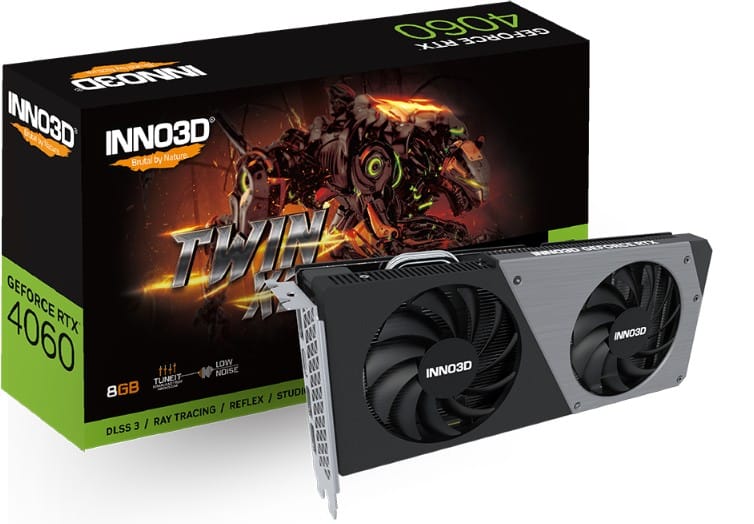

INNO3D nVidia GeForce RTX 4060 TWIN X2 V2 8G GDDR6, 2460MHz Boost Clock, RAM 17Gbps, 3xDP+HDMI, 250x118x42mm (4060)
INNO3D GEFORCE RTX 4060 TWIN X2
Technical Spec.
GPU Engine Specs:
CUDA Cores 3072
Boost Clock (MHz) 2460
Base Clock(MHz) 1830
Thermal and Power Spec:
Minimum System Power Requirement (W) 550
Supplementary Power Connectors 1x PCIe 8-pin cable
Memory Specs:
Memory Clock 17Gbps
Standard Memory Config 8GB
Memory Interface GDDR6
Memory Interface Width 128-bit
Memory Bandwidth (GB/sec) 272
Feature Support:
Real-Time Ray Tracing Yes
Ray Tracing Cores 3rd Generation
Tensor Cores 4th Generation
NVIDIA Architecture Ada Lovelace
Microsoft DirectX 12 Ultimate
NVIDIA DLSS 3
PCI Express Gen 4 Yes
NVIDIA GeForce Experience Yes
NVIDIA Ansel Yes
NVIDIA FreeStyle Yes
Bus Support PCI-E 4.0 X8
NVIDIA ShadowPlay Yes
OS Certification Windows 11 / 10, Linux, FreeBSDx86
NVIDIA Highlights Yes
NVIDIA G-SYNC-Ready Yes
Game Ready Drivers Yes
NVIDIA Studio Drivers Yes
NVIDIA GPU Boost Yes
Vulkan API Yes
OpenGL 4.6
DisplayPort 1.4a Yes
NVIDIA Encoder 1x 8th Generation
NVIDIA Decoder 5th Generation
HDMI 2.1a Yes
Accessories:
Installation Guide Yes
Power Guide Yes
Graphics Card Dimensions:
Length 250mm
Height 118mm
Width 42mm
Display Support:
Multi Monitor Yes
Maxmium Digital Resolution 7680x4320
HDCP 2.3
Standard Display Connectors HDMI 2.1a, 3x DisplayPort 1.4a
Technical Spec.
GPU Engine Specs:
CUDA Cores 3072
Boost Clock (MHz) 2460
Base Clock(MHz) 1830
Thermal and Power Spec:
Minimum System Power Requirement (W) 550
Supplementary Power Connectors 1x PCIe 8-pin cable
Memory Specs:
Memory Clock 17Gbps
Standard Memory Config 8GB
Memory Interface GDDR6
Memory Interface Width 128-bit
Memory Bandwidth (GB/sec) 272
Feature Support:
Real-Time Ray Tracing Yes
Ray Tracing Cores 3rd Generation
Tensor Cores 4th Generation
NVIDIA Architecture Ada Lovelace
Microsoft DirectX 12 Ultimate
NVIDIA DLSS 3
PCI Express Gen 4 Yes
NVIDIA GeForce Experience Yes
NVIDIA Ansel Yes
NVIDIA FreeStyle Yes
Bus Support PCI-E 4.0 X8
NVIDIA ShadowPlay Yes
OS Certification Windows 11 / 10, Linux, FreeBSDx86
NVIDIA Highlights Yes
NVIDIA G-SYNC-Ready Yes
Game Ready Drivers Yes
NVIDIA Studio Drivers Yes
NVIDIA GPU Boost Yes
Vulkan API Yes
OpenGL 4.6
DisplayPort 1.4a Yes
NVIDIA Encoder 1x 8th Generation
NVIDIA Decoder 5th Generation
HDMI 2.1a Yes
Accessories:
Installation Guide Yes
Power Guide Yes
Graphics Card Dimensions:
Length 250mm
Height 118mm
Width 42mm
Display Support:
Multi Monitor Yes
Maxmium Digital Resolution 7680x4320
HDCP 2.3
Standard Display Connectors HDMI 2.1a, 3x DisplayPort 1.4a
| Processor | |
| CUDA CUDA (aka Compute Unified Device Architecture) is a parallel computing platform and programming model created by NVIDIA and implemented by the graphics processing units (GPUs) that they produce. CUDA gives program developers direct access to the virtual instruction set and memory of the parallel computational elements in CUDA GPUs. |
 |
| CUDA cores | 3072 |
| Graphics processor family The category to which the graphics processor (GPU) belongs e.g. Southern Islands family of Radeon processors (made by AMD), GeForce 600 (made by NVIDIA). | NVIDIA |
| Graphics processor Also known as a graphics processing unit (GPU), this is a specialized electronic circuit designed to rapidly manipulate and alter memory to accelerate the creation of images in a frame buffer intended for output to a display. GPUs are used in embedded systems, mobile phones, personal computers, workstations, and game consoles. Modern GPUs are very efficient at manipulating computer graphics. | GeForce RTX 4060 |
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 1830 MHz |
| Processor boost clock speed | 2460 MHz |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 7680 x 4320 pixels |
| Parallel processing technology support Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally, parallel processing makes programs run faster because there are more engines (CPUs or Cores) running it. In practice, it is often difficult to divide a program in such a way that separate CPUs or cores can execute different portions without interfering with each other. Most computers have just one CPU, but some models have several, and multi-core processor chips are becoming the norm. There are even computers with thousands of CPUs. | Not supported |
| Memory | |
| Discrete graphics card memory | 8 GB |
| Graphics card memory type The type of memory used by the video card. Often a combination of dedicated memory (Video RAM or VRAM) and dynamic system memory is used. UMA stands for Unified Memory Architecture, and is a computer memory architecture that allows the graphics processing unit to share system memory. Other abreviations: RAM = Random Access Memory, SDRAM = synchronous dynamic RAM, DDR = double-data-rate. | GDDR6 |
| Memory bus Hardware and software that connects the main memory to the memory controller in computer systems. Originally, general-purpose buses like VMEbus and the S-100 bus were used, but to reduce latency, modern memory buses are designed to connect directly to DRAM chips, and thus are designed by chip standards bodies such as JEDEC. | 128 bit |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 17 Gbit/s |
| Memory bandwidth (max) | 272 GB/s |
| Ports & interfaces | |
| Interface type | PCI Express x16 4.0 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 2.1a |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 3 |
| DisplayPort version | 1.4a |
| Performance | |
| TV tuner integrated Device has an in-built TV tuner. |
 |
| DirectX version DirectX is a collection of APIs (application programming interfaces) for easily handling tasks related to game programming on the Microsoft Windows operating system. | 12 Ultimate |
| OpenGL version OpenGL (Open Graphics Library) is a specification defining a cross-language cross-platform API for writing applications that produce 3D computer graphics (and 2D computer graphics as well). The interface consists of over 250 different function calls which can be used to draw complex three-dimensional scenes from simple primitives. | 4.6 |
| Virtual Reality (VR) ready |
|
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| HDCP version | 2.3 |
| Dual Link DVI A dual-link DVI interface sends data over both of the DVI links to the monitor, and this is how higher resolutions are achieved. With dual-link DVI, a resolution of 2048 x 1536 is possible. |
|
| NVIDIA G-SYNC |
|
| NVIDIA Ansel |
|
| Design | |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 8.8 cm |
| Number of slots | 2 |
| SFF ready |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Minimum system power supply The lowest power that is needed. | 550 W |
| Supplementary power connectors | 1x 8-pin |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10, Windows 11 |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Other operating systems supported | FreeBSD |
| Weight & dimensions | |
| Length The measurement or extent of something from end to end. | 222 mm |
| Height The measurement of the product from head to foot or from base to top. | 120 mm |
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| Packaging content | |
| Quick installation guide |
|
| SKU | 825130 |
| MPN | N40602-08D6-173061N |
| Brand | Inno3D |
| Product Condition | Brand New/Unused |
| GPU Series | GeForce RTX 4060 |
| Graphics RAM Size | 8 GB |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.inno3d.com/ |
