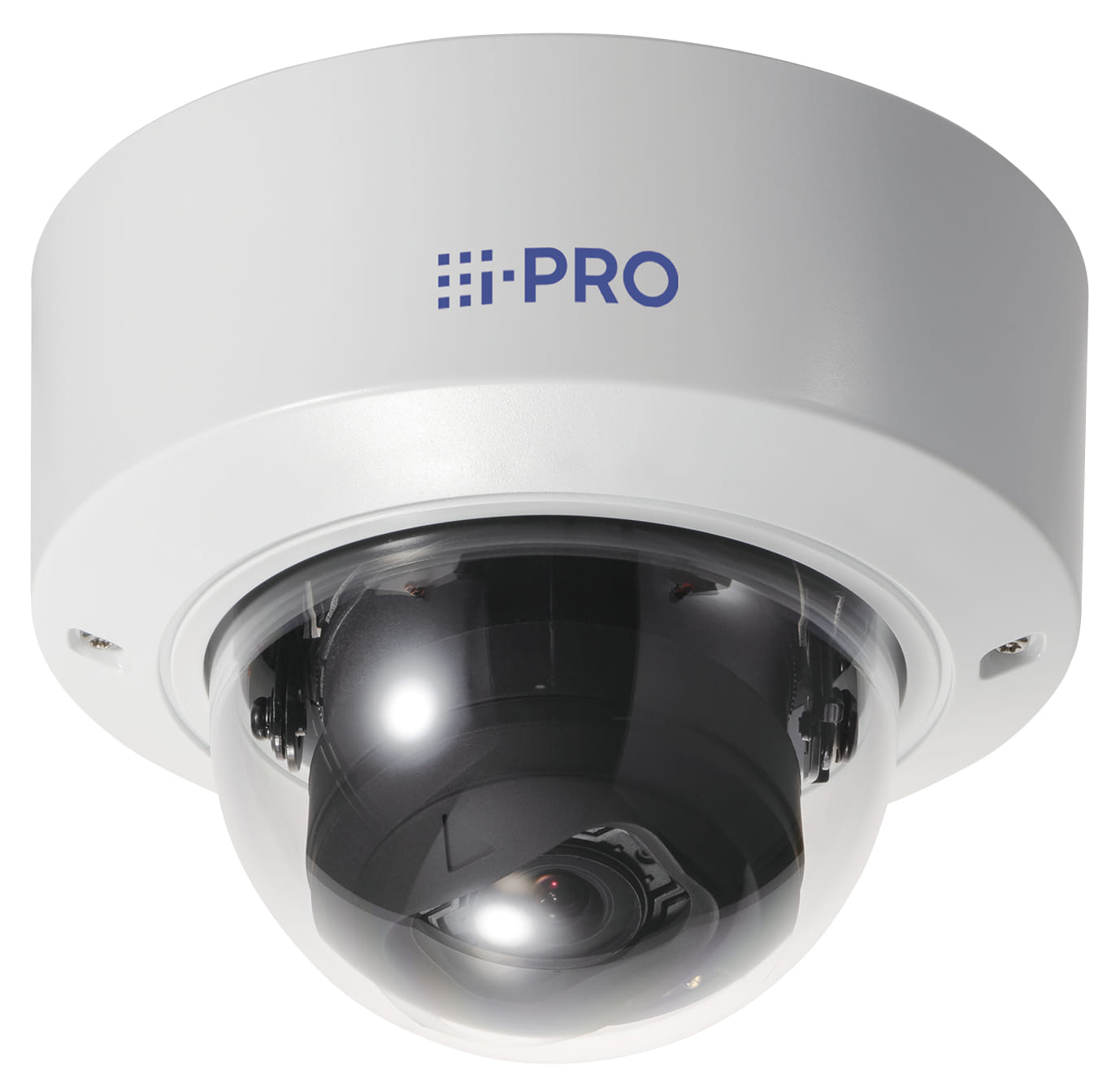

i-PRO WV-S22500-V3L, IP security camera, Indoor, Wired, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Portuguese, Russian, 132 dB, Ceiling
The 5MP/6MP/4K varifocal lens model, a high-resolution network camera will be added to the lineup of the well-established new S series.
Equipped with an AI processor, it can run up to three AI analytics applications (AI apps) simultaneously, which significantly improve the detection rate of people and vehicles and can be used in a wide range of surveillance scenes.
It realizes high-quality and clearer images even in low-light and wide-range shooting scenes. With the released of total 34 models, including fixed focus, black body, smoke dome, and derivative models such as heavy salt damage resistant models, to support a wide variety of security monitoring applications.
3 AI Apps operation at same time
Up to 3 AI apps can be operated at the same time from the wide variety.
Using AI processor which identifies object as people or vehicle, it will reduce false alarm compared to conventional model. As result, it can be used many industries.
High image quality / High compression
Our original smart coding technology compatible with H.264 and H.265 delivers high-resolution video at high image quality and low bit rate. Achieved useful images by combining with highly visible images by the intelligent auto (iA) function.
Easy setting and installation
Easy Kitting Package enabling installers to configure cameras easily while keeping the unit in the box.*
The grommet on the outdoor model can reduce the time and effort required for installation.
User-friendly GUI (setting while watching Live view, etc.) allows you to set comfortably.
iCT tool allows you to set multiple cameras, apps, and recorders all at once, reducing the camera setting time.
*The kitting process should be done within 1hour. The inside of the camera gets hot and may cause a malfunction.
High security standard
Highest level of security. In addition to digital certificates issued by a third-party organization (GlobalSign ),
FIPS 140-2 Level 3 certified EdgeLock SE050F secure element (NXP Semiconductors) is embeded.
Equipped with an AI processor, it can run up to three AI analytics applications (AI apps) simultaneously, which significantly improve the detection rate of people and vehicles and can be used in a wide range of surveillance scenes.
It realizes high-quality and clearer images even in low-light and wide-range shooting scenes. With the released of total 34 models, including fixed focus, black body, smoke dome, and derivative models such as heavy salt damage resistant models, to support a wide variety of security monitoring applications.
3 AI Apps operation at same time
Up to 3 AI apps can be operated at the same time from the wide variety.
Using AI processor which identifies object as people or vehicle, it will reduce false alarm compared to conventional model. As result, it can be used many industries.
High image quality / High compression
Our original smart coding technology compatible with H.264 and H.265 delivers high-resolution video at high image quality and low bit rate. Achieved useful images by combining with highly visible images by the intelligent auto (iA) function.
Easy setting and installation
Easy Kitting Package enabling installers to configure cameras easily while keeping the unit in the box.*
The grommet on the outdoor model can reduce the time and effort required for installation.
User-friendly GUI (setting while watching Live view, etc.) allows you to set comfortably.
iCT tool allows you to set multiple cameras, apps, and recorders all at once, reducing the camera setting time.
*The kitting process should be done within 1hour. The inside of the camera gets hot and may cause a malfunction.
High security standard
Highest level of security. In addition to digital certificates issued by a third-party organization (GlobalSign ),
FIPS 140-2 Level 3 certified EdgeLock SE050F secure element (NXP Semiconductors) is embeded.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Number of languages | 9 |
| Languages support The product has support (help) for languages. | Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Portuguese, Russian |
| Dynamic range | 132 dB |
| Design | |
| Form factor The shape or design of the product. | Dome |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Housing material What the casing of the product is made of. | Aluminium, Polycarbonate (PC) |
| Protection features Physical effects from which the product is protected e.g. water resistant, crash proof. | Shock resistant, Vandal proof |
| IK code | IK10 |
| Camera | |
| Angle of rotation | 270° |
| Lens viewing angle, horizontal | 33 - 105° |
| Lens viewing angle, vertical | 19 - 56° |
| Tilt angle range | -30 - 85° |
| Pan range | -240 - 120° |
| White balance Technique in photography and image processing, which involves a global adjustment of the intensities of the colors (typically red, green, and blue primary colors). An important goal of this adjustment is to render specific colors – particularly neutral colors including white – correctly. | ATW, AWC |
| Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure. | 1/30 - 1/10000 s |
| Number of Privacy masking areas | 8 |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.8 mm (1 / 2.8") |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Lens system | |
| Optical zoom Indicates the optical zoom capacity, which is the number of times that the picture can be enlarged with the optics of the camera. | 3.1x |
| Auto focus Device focusing a camera or other piece of equipment automatically. |
 |
| Focus | Motorized |
| Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′). | 2.9 - 9 mm |
| Detect distance (wide) | 47.1 m |
| Detect distance (tele) | 207.4 m |
| Observe distance (wide) | 18.9 m |
| Observe distance (tele) | 83 m |
| Recognize distance (wide) | 9.4 m |
| Recognize distance (tele) | 41.5 m |
| Identify distance (wide) | 4.7 m |
| Identify distance (tele) | 20.7 m |
| Closest focusing distance | 0.3 m |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| Night vision distance | 40 m |
| LED type | IR |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3072 x 2304 pixels |
| Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels). | 5 MP |
| Video compression formats | H.264, H.265, M-JPEG |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 320 x 180, 320 x 240, 400 x 300, 640 x 360, 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440, 2560 x 1920, 3072 x 1728, 3072 x 2304 |
| Frame rate | 30 fps |
| Noise reduction |
|
| Image quality adjustment | Brightness |
| Privacy masking |
|
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) |
|
| Highlight Compensation (HLC) |
|
| Audio | |
| Audio system full duplex |
|
| Voice codecs | AAC, G.711, G.726 |
| Audio detection |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, SFTP, MQTT, LLDP |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Number of users The number of people that use or can use this product. | 14 user(s) |
| Streaming method | Multicast, Unicast |
| Storage | |
| Built-in HDD The product has a hard drive built into it. |
|
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | SD, SDHC, SDXC |
| Maximum memory card size The maximum size of memory card that can be used with this device. | 512 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Composite video out The socket in the device for the composite video, which is an analog video transmission (no audio) that carries standard definition video typically at 480i or 576i resolution. The cables for composite video are normally yellow. | 1 |
| Microphone in The socket where a microphone is connected to the device. |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| Security | |
| Alarm input channels | 3 |
| Video motion detection |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 802.1x RADIUS, FIPS 140-2 |
| HTTPS encryption |
|
| Alert notification type | E-mail, Push notification |
| Intelligent Video Surveillance (IVS) system features | Face detection, Human detection, Scene change, Vehicle detection |
| Management features | |
| Web browser |
|
| Power | |
| Power source type What the power source is. | DC, PoE |
| Power consumption | 240 mA |
| Power consumption (max) The maximum amount of power used by the device. | 12 W |
| Power consumption (Power over Ethernet (PoE)) | 11.5 W |
| DC output voltage | 12 |
| DC output current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 50 °C |
| Weight & dimensions | |
| Height The measurement of the product from head to foot or from base to top. | 102.5 mm |
| Diameter Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body. | 12.9 cm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 800 g |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| SKU | 754553 |
| MPN | WV-S22500-V3L |
| Brand | I-Pro |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://i-pro.com/ |
