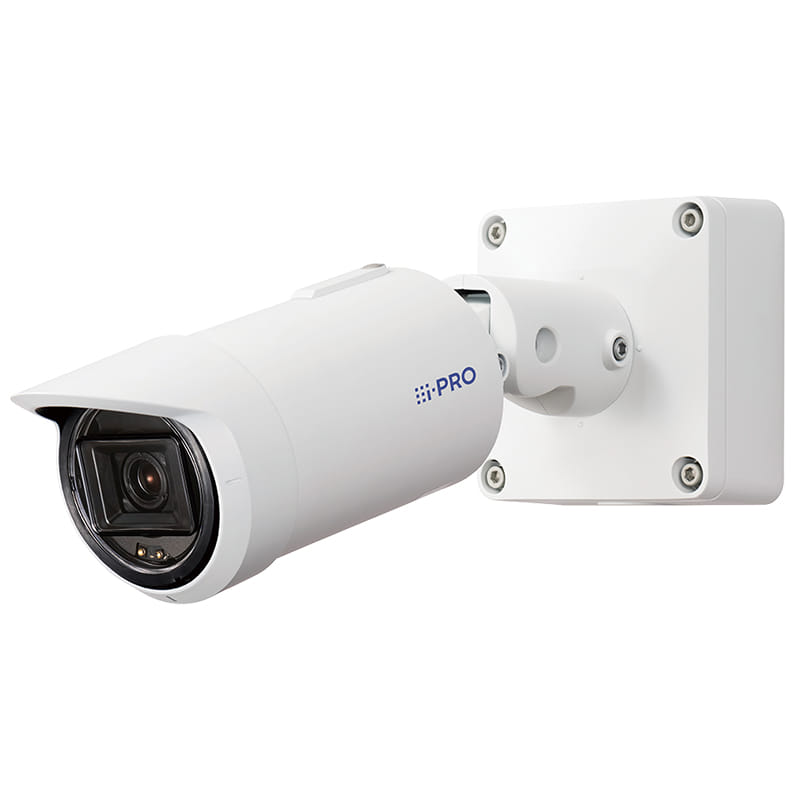

i-PRO WV-S15700-V2LN, IP security camera, Indoor & outdoor, Wired, German, English, Spanish, French, Italian, Japanese, Portuguese, Russian, 132 dB, UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 ClassA,...
S-series High resolution Network camera with AI engine
The 5MP/6MP/4K varifocal lens model, a high-resolution network camera will be added to the lineup of the well-established new S series. Equipped with an AI processor, it can run up to three AI analytics applications (AI apps) simultaneously, which significantly improve the detection rate of people and vehicles and can be used in a wide range of surveillance scenes. It realizes high-quality and clearer images even in low-light and wide-range shooting scenes. With the released of total 34 models,including fixed focus, black body, smoke dome, and derivative models such as heavy salt damage resistant models, to support a wide variety of security monitoring applications.
Up to 3 AI apps can be operated at the same time from the wide variety.
Using AI processor which identifies object as people or vehicle, it will reduce false alarm compared to conventional model. As result, it can be used many industries.
High image quality / High compression
Our original smart coding technology compatible with H.264 and H.265 delivers high-resolution video at high image quality and low bit rate. Achieved useful images by combining with highly visible images by the intelligent auto (iA) function.
Easy setting and installation
- Easy Kitting Package enabling installers to configure cameras easily while keeping the unit in the box.
- The grommet on the outdoor model can reduce the time and effort required for installation.
- User-friendly GUI (setting while watching Live view, etc.) allows you to set comfortably.
- iCT tool allows you to set multiple cameras, apps, and recorders all at once, reducing the camera setting time.
High security standard
- Highest level of security. In addition to digital certificates issued by a third-party organization (GlobalSign), FIPS 140-2 Level 3 certified EdgeLock SE050F secure element (NXP Semiconductors) is embeded.
The 5MP/6MP/4K varifocal lens model, a high-resolution network camera will be added to the lineup of the well-established new S series. Equipped with an AI processor, it can run up to three AI analytics applications (AI apps) simultaneously, which significantly improve the detection rate of people and vehicles and can be used in a wide range of surveillance scenes. It realizes high-quality and clearer images even in low-light and wide-range shooting scenes. With the released of total 34 models,including fixed focus, black body, smoke dome, and derivative models such as heavy salt damage resistant models, to support a wide variety of security monitoring applications.
Up to 3 AI apps can be operated at the same time from the wide variety.
Using AI processor which identifies object as people or vehicle, it will reduce false alarm compared to conventional model. As result, it can be used many industries.
High image quality / High compression
Our original smart coding technology compatible with H.264 and H.265 delivers high-resolution video at high image quality and low bit rate. Achieved useful images by combining with highly visible images by the intelligent auto (iA) function.
Easy setting and installation
- Easy Kitting Package enabling installers to configure cameras easily while keeping the unit in the box.
- The grommet on the outdoor model can reduce the time and effort required for installation.
- User-friendly GUI (setting while watching Live view, etc.) allows you to set comfortably.
- iCT tool allows you to set multiple cameras, apps, and recorders all at once, reducing the camera setting time.
High security standard
- Highest level of security. In addition to digital certificates issued by a third-party organization (GlobalSign), FIPS 140-2 Level 3 certified EdgeLock SE050F secure element (NXP Semiconductors) is embeded.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor & outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Alarm input/output |
 |
| Number of languages | 9 |
| Languages support The product has support (help) for languages. | German, English, Spanish, French, Italian, Japanese, Portuguese, Russian |
| Dynamic range | 132 dB |
| Certification | UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035 |
| Design | |
| Form factor The shape or design of the product. | Bullet |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling/wall |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| Housing material What the casing of the product is made of. | Aluminium, Polycarbonate (PC), Resin |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| IK code | IK10 |
| Fog proof |
|
| Camera | |
| Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality. | 0.03 lx |
| Lens viewing angle, horizontal | 53 - 104° |
| Lens viewing angle, vertical | 30 - 56° |
| Tilt angle range | -100 - 100° |
| Pan range | -180 - 180° |
| White balance Technique in photography and image processing, which involves a global adjustment of the intensities of the colors (typically red, green, and blue primary colors). An important goal of this adjustment is to render specific colors – particularly neutral colors including white – correctly. | ATW, AWC |
| Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure. | 1/30 - 1/10000 s |
| Number of Privacy masking areas | 8 |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 1.8 mm (1 / 1.8") |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Lens system | |
| Zoom capability The amount that the camera lens can zoom. |
|
| Optical zoom Indicates the optical zoom capacity, which is the number of times that the picture can be enlarged with the optics of the camera. | 6x |
| Number of lenses The number of lenses installed in the device. | 1 |
| Auto focus Device focusing a camera or other piece of equipment automatically. |
|
| Focus | Motorized |
| Maximum aperture number | 2.4 |
| Identify distance | 6 m |
| Minimum aperture number The minimum size of the hole through which light enters a camera. | 1.5 |
| Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′). | 4.3 - 8.6 mm |
| Detect distance (wide) | 60 m |
| Detect distance (tele) | 154 m |
| Observe distance (wide) | 24 m |
| Observe distance (tele) | 61.6 m |
| Recognize distance (wide) | 12 m |
| Recognize distance (tele) | 30.8 m |
| Identify distance (wide) | 6 m |
| Identify distance (tele) | 15.4 m |
| Closest focusing distance | 10 m |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| Night vision distance | 70 m |
| LED type | IR |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Video formats supported The type of video formats that can be used by this device. | H.264, H.265 |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 320 x 180, 640 x 360, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160 |
| Frame rate | 30 fps |
| Video intelligence analytic |
|
| Analog signal format system The supported protocols for exchanging analog signals. | NTSC, PAL |
| Noise reduction |
|
| Text caption overlay |
|
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) |
|
| Highlight Compensation (HLC) |
|
| Audio | |
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | AAC-LC, G.711, G.726 |
| Audio detection |
|
| Bit rate range | 16 - 128 Kbit/s |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Fast Ethernet |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, SFTP, MQTT, LLDP |
| Number of users The number of people that use or can use this product. | 14 user(s) |
| Storage | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | SD, SDHC, SDXC |
| Maximum memory card size The maximum size of memory card that can be used with this device. | 512 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Microphone in The socket where a microphone is connected to the device. |
|
| Security | |
| Video motion detection |
|
| Alert notification type | |
| Privacy protection |
|
| Intelligent Video Surveillance (IVS) system features | Face detection, Scene change, Vehicle detection |
| Management features | |
| Web browser |
|
| Power | |
| Power source type What the power source is. | DC, PoE |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 12 W |
| Power consumption (Power over Ethernet (PoE)) | 11.5 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 133 mm |
| Depth The distance from the front to the back of something. | 383 mm |
| Height The measurement of the product from head to foot or from base to top. | 133 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.4 kg |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| SKU | 754550 |
| MPN | WV-S15700-V2LN |
| Brand | I-Pro |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://i-pro.com/ |
