HP Z4 Workstation G5 Xeon W3-2425, 32GB RAM, 1TB SSD, 1TB HDD, RTX A2000, Windows 11 Pro
Item No:
774683
MPN:
A0PT6PA
$7,016.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
HP Z4 G5, XEON W3-2425, 32GB, 1TB SSD + 1TB HDD, NVIDIA RTX A2000 12GB, W11P64, 3YR (Replaces 8C287PA)

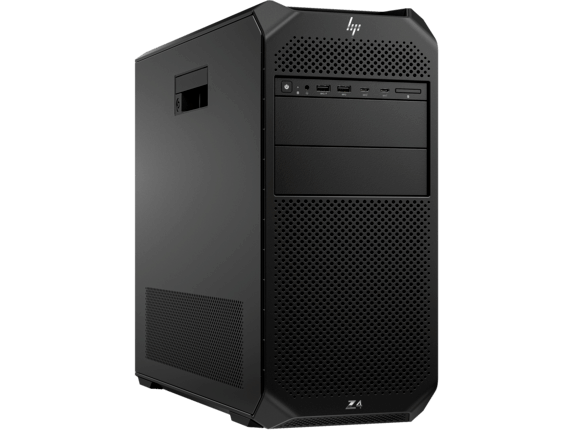

HP Z4 G5 Workstation PC
This high-performance desktop workstation does it all. Tackle advanced workflows "from rendering and simulation to advanced video editing and massive dataset preparation. The Z4 G5 accelerates workflows across a wide range of professional apps and provides plenty of room to expand as work evolves.
Professional performance. Whisper quiet acoustics
Render, simulate or analyze faster with high-end GPUs, an Intel® Xeon® CPU, and impressive memory and storage.
Upgrade and expand with ease
Evolve your PC with space for high-end GPUs, loads of memory and storage, plus front-accessible NVMe drives.
Comprehensive security. Reliability you can trust
Trust the 360K hours of testing, certifications for pro apps, and world-class HP Wolf Security for Business.
Maximize your IT lifecycle
Designed for simpler IT management, the Z4 is built for longevity with a 3 year lifecycle "longer than entry workstations. Plan for the future and avoid re-qualifying devices every year, saving you serious time and money.
* Optional, configurable features. Configurations for 76TB storage and for front accessible NVME bays is planned to be available in the first half of 2023. Configuration for 76TB requires after-market purchase. Two front accessible NVMe bays require a 5.25 bay carrier.
* Testing is not intended to demonstrate fitness of U.S. Department of Defense (DoD) contract requirements or for military use. Test results are not a guarantee of future performance under these test conditions. Accidental damage requires an optional HP Accidental Damage Protection Care Pack.
* HP Wolf Security for Business requires Windows 10 or 11 Pro or higher, includes various HP security features and is available on HP Pro, Elite and Workstation products. See product details for included security features and OS requirement.
| Name | Value |
|---|---|
| Storage | N/A |
| Mouse / Trackpad | N/A |
| Processor | Intel® Xeon® W3-2425 (up to 4.2 GHz with Intel® Turbo Boost Technology, 15 MB L3 cache, 6 cores, 12 threads) |
| Memory | 32GB (2x16GB) DDR5 4800 DIMM ECC REG 1CPU Memory |
| Storage Capacity | Z Turbo 1TB PCIe-4x4 2280 TLC M.2 Solid State Drive + 1TB 7200RPM SATA 3.5in Enterprise |
| Wireless | No |
| Card Reader | SD Card Reader |
| CPU & GPU | N/A |
| Form Factor | Tower |
| LAN | 1 RJ-45 Integrated LAN Port (1GbE AMT) |
| Ethernet | N/A |
| Expansion Slot | 1 PCIe 5 x16; 2 PCIe 4 x16; 2 PCIe 4 x4 |
| Graphics | NVIDIA RTX A2000 12 GB 4mDP Graphics |
| Dimensions | 386mm x 169mm x 445mm |
| Keyboard | N/A |
| Power Supply | 775W EPA90 Power Supply |
| Storage Type | Z Turbo 1TB PCIe-4x4 2280 TLC M.2 Solid State Drive + 1TB 7200RPM SATA 3.5in Enterprise |
| Warranty | HP 3 year Care Onsite |
| Operating System | Windows 11 Pro |
| Optical Drive | No Included ODD |
| Weight | Starting at 10.5 kg |
| Colour | N/A |
| Drive Bay | One 3.5"; Four PCIe® M.2 SSD; Three 3.5" HDD (Internal); Two NVMe M.2 SSD; Two 3.5" HDD; Two 9.5 mm ODD (External) |
| Front/Rear Ports | Front I/O Entry: 4 SuperSpeed USB Type-A 5 Gbps signaling rate [leftmost Type-A ports supports BC1.2 (Battery Charging)] |
| Product Family | HP |
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel Xeon W |
| Processor model The model number for the processor in a computer. | w3-2425 |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 6 |
| Processor threads | 12 |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 4,2 GHz |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 3 GHz |
| Performance cores | 6 |
| Processor cache | 15 MB |
| Processor cache type | L3 |
| Processor base power | 130 W |
| Maximum turbo power | 156 W |
| Memory | |
| Internal memory A computer's memory which is directly accessible to the CPU. | 32 GB |
| Maximum internal memory The maximum internal memory which is available in the product. | 512 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR5-SDRAM |
| Memory layout (slots x size) The slots and size of the memory for the CPU. | 2 x 16 GB |
| Memory slots Number and type of memory expansion slots, including connector and memory module descriptions. | 8x DIMM |
| Memory clock speed The frequency at which the memory (e.g. RAM) runs. | 4800 MHz |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
 |
| Storage | |
| Total storage capacity The total amount of data that can be stored on the device. | 2 TB |
| Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive). | HDD+SSD |
| Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM. |
 |
| Number of storage drives installed Amount of storage drives built into the device. | 1 |
| Total HDDs capacity | 1 TB |
| Number of HDDs installed The number of hard drives built into the device. | 1 |
| HDD capacity The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB. | 1 TB |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | SATA |
| HDD speed The rotational speed of a hard disk expressed in rotations per minute. The faster the better. | 7200 RPM |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity The Solid State Drive's data storage capacity. | 1 TB |
| SSD memory type | TLC |
| SSD interface The type of interface(s) with which the Solid State Drive is connected to other hardware. | PCI Express 4.0 |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
|
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| Graphics | |
| Discrete graphics card |
|
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
|
| Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters. | NVIDIA RTX A2000 |
| Discrete graphics card memory | 12 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Not available |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 2 |
| USB Power Delivery |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Line-out |
|
| Line-in |
|
| Combo headphone/mic port |
|
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Tower |
| Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks. | 4 |
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Introduction year | 2024 |
| Country of origin Country where the device is made. | China |
| Performance | |
| Market positioning Under which category can the device be positioned in the market, e.g. camera phone. | Performance |
| Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard. | Intel W790 |
| Audio chip | Realtek ALC3205-CG |
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| Password protection type | BIOS, Power on, User |
| Trusted Platform Module (TPM) |
|
| Product type The sub-category of the product. | Workstation |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Windows 11 Pro |
| Brand-specific features | |
| HP Support Assistant Get answers to everyday support questions about your HP PC and printers with this free self-help tool built into your computer. Optimized to provide an enhanced support experience, it’s automatically updated and ready to go the first time you boot up. And when you need hands-on help, you can use the tool to directly connect to HP Support. |
|
| HP Artificial Intelligence | AI Workstation |
| HP segment | Business |
| Power | |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency The frequency of the electricity, usually measured in Hertz (Hz), which is supplied by the power supply. Mains electricity in many parts of the world is 50Hz. | 50 - 60 Hz |
| Certificates | |
| Low halogen |
|
| Sustainability | |
| Sustainability compliance |
|
| Sustainability certificates | TCO |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 168,9 mm |
| Depth The distance from the front to the back of something. | 444,5 mm |
| Height The measurement of the product from head to foot or from base to top. | 386,1 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 10,5 kg |
| Package width The distance from one side of the packaging to the other. | 314 mm |
| Package depth The distance from the front to the back of the packaging. | 572 mm |
| Package height The distance from the top to the bottom of the packaging. | 563 mm |
| Package weight Weight of the packaged product. | 14,3 kg |
| Packaging content | |
| Keyboard included A keyboard is part of the bundle/set. |
|
| Display | |
| Display included This product includes a display. |
|
| Other features | |
| Keyboard type | USB |
| SKU | 774683 |
| MPN | A0PT6PA |
| Brand | Hewlett Packard |
| Product Condition | Brand New/Unused |
| Processor | XEON W3-2425 |
| Operating System | Windows 11 Pro |
| Graphics Card | RTX A2000 |
| RAM | 32GB RAM |
| Desktop Type | Branded Computers |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.hp.com/ |
