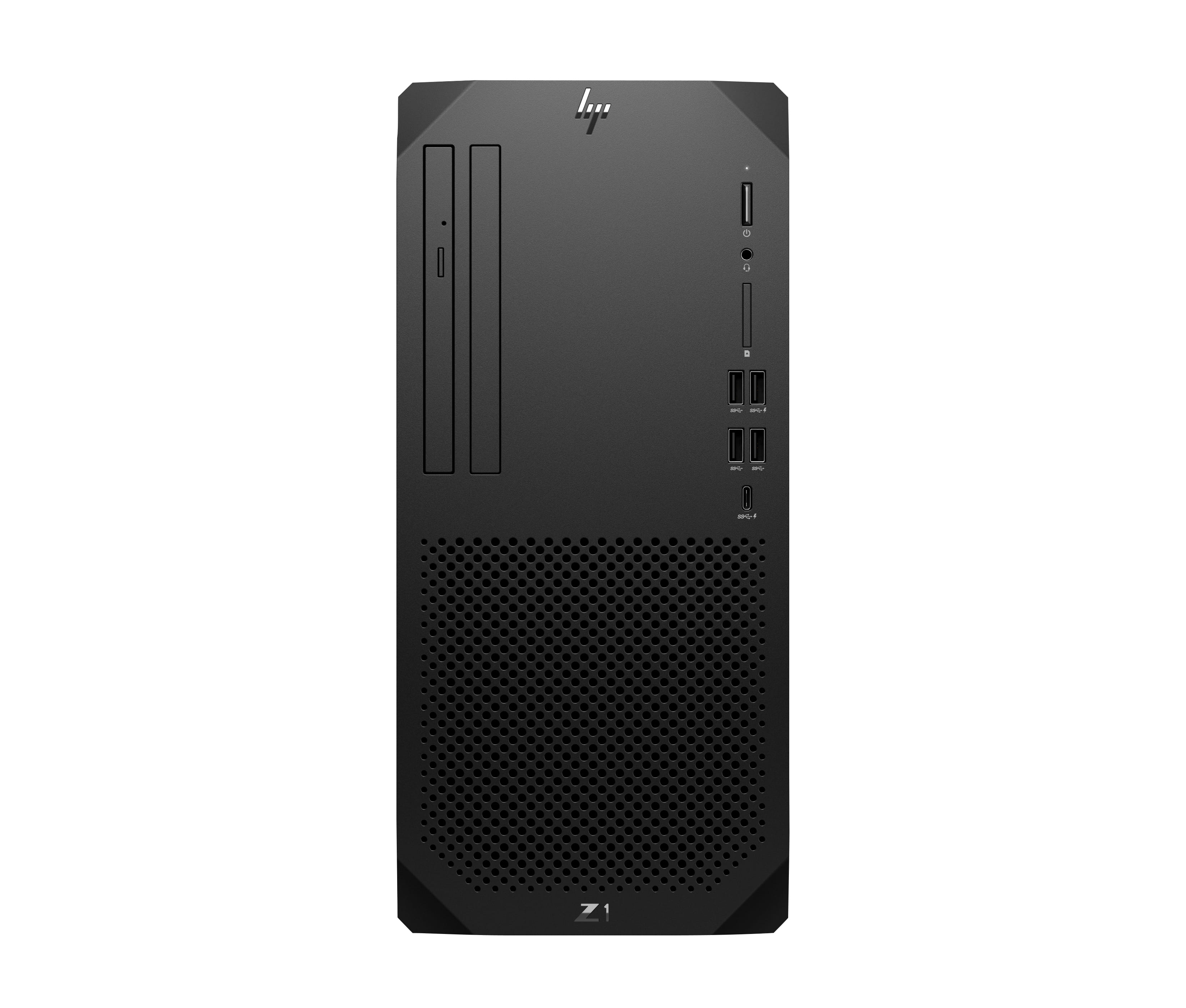

HP Z1 Tower G9 i7-14700, 32GB RAM, 1TB SSD, RTX 5060, Windows 11 Pro

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel® Core™ i7
Processor model The model number for the processor in a computer.	i7-14700
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	20
Processor threads	28
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	5,4 GHz
Processor cache	33 MB
Processor cache type	L3

Memory
Internal memory A computer's memory which is directly accessible to the CPU.	32 GB
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR5-SDRAM
Memory layout (slots x size) The slots and size of the memory for the CPU.	1 x 32 GB
Memory slots Number and type of memory expansion slots, including connector and memory module descriptions.	4x DIMM
Memory clock speed The frequency at which the memory (e.g. RAM) runs.	4800 MHz

Storage
Number of storage drives installed Amount of storage drives built into the device.	1

Graphics
Discrete graphics card
Discrete GPU manufacturer	NVIDIA
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.	NVIDIA GeForce RTX 5060
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR7
Number of discrete graphics cards	1
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Intel UHD Graphics 770

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Cabling technology Type of cable technology performance.	10/100/1000Base-T(X)
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 6 (802.11ax)
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	Wi-Fi 6 (802.11ax)
WLAN controller manufacturer	Realtek
WLAN controller model	Realtek RTL8852AE
Antenna type Type of antenna, also known an aerial, e.g. external, internal.	2x2
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	5.2

Ports & interfaces
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	7
USB 3.2 Gen 2x2 Type-C ports quantity	1
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	1
HDMI version	1.4
Line-out

Expansion slots
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots Places where PCI Express x16 (Gen 3.x) are placed inside and connected to the computer motherboard.	1
PCI Express x16 (Gen 4.x) slots	1

Design
Chassis type The type of rigid framework onto which is the hosuing for device components.	Tower
Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.

Performance
Market positioning Under which category can the device be positioned in the market, e.g. camera phone.	Performance
Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard.	Intel Q670
Audio chip	Realtek ALC3205
Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
Password protection type	BIOS, Power on, User
Trusted Platform Module (TPM)
Product type The sub-category of the product.	Workstation
Trusted Platform Module (TPM) version	2.0

Software
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Windows 11 Pro

Brand-specific features
HP JumpStart When you boot up your PC for the first time, get a personal walkthrough during the setup and get an informative overview of your PC’s features.
HP Support Assistant Get answers to everyday support questions about your HP PC and printers with this free self-help tool built into your computer. Optimized to provide an enhanced support experience, it’s automatically updated and ready to go the first time you boot up. And when you need hands-on help, you can use the tool to directly connect to HP Support.
HP Artificial Intelligence	AI Workstation
HP segment	Business

Certificates
Low halogen

Sustainability
Sustainability compliance
Sustainability certificates	ENERGY STAR, TCO

Weight & dimensions
Width The measurement or extent of something from side to side.	337 mm
Depth The distance from the front to the back of something.	308 mm
Height The measurement of the product from head to foot or from base to top.	155 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	5,7 kg
Package width The distance from one side of the packaging to the other.	287 mm
Package depth The distance from the front to the back of the packaging.	400 mm
Package height The distance from the top to the bottom of the packaging.	499 mm
Package weight Weight of the packaged product.	9,24 kg

Packaging content
Keyboard included A keyboard is part of the bundle/set.
