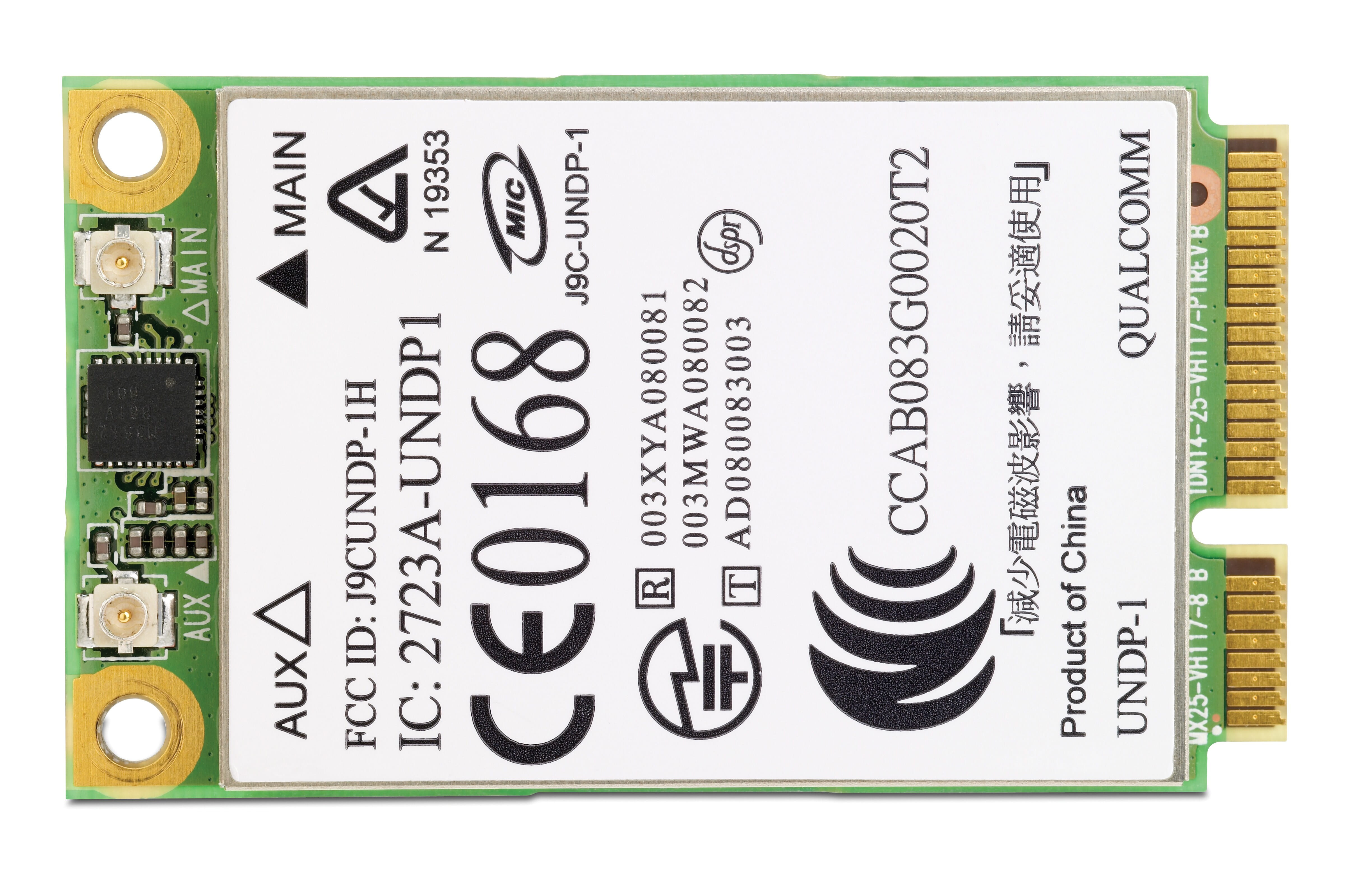

HP WD301AA EV-DO-HSDPA Mobile Broadband Module

HP un2420 EV-DO-HSDPA Mobile Broadband Module

Description

The HP un2420 EV-DO/HSPA Mobile Broadband Module is a WWAN module for select HP notebooks that, after installation, provides connection to and permits roaming on wireless networks in many countries worldwide. Multi-mode broadband solution that can support both GSM & CDMA networks, allowing you to choose the service provider that works best for you. No protruding PC cards that can damage the notebook. Connect easily with preloaded HP Connection Manager software. Enhance security by avoiding connections at hotels, airports and hotspots and with built-in support for VPN applications. Not supported on HP Mobile Workstations (8730w) with Dream Color Panel option.

Service and Support provided by:

Hewlett Packard

Technical: 800.334.5144

CompatibilityThis product is compatible with the following HP hardware:Show all|Hide allHP Business DesktopsHP Compaq 8000 Elite Desktop PCHP Compaq 8000 Elite Ultra-slim PC Accessories for this modelHP Business Laptops & NetbooksHP EliteBook 2500 Notebook PC seriesHP EliteBook 2540p Notebook PC Accessories for this modelHP EliteBook 2540p Notebook PC (ENERGY STAR) Accessories for this modelHP EliteBook 2700 Notebook PC seriesHP EliteBook 2740p Tablet PC Accessories for this modelHP EliteBook 2740p Tablet PC (ENERGY STAR) Accessories for this modelHP EliteBook 8400 Mobile Workstation seriesHP EliteBook 8460w Mobile Workstation Accessories for this modelHP EliteBook 8460w Mobile Workstation (ENERGY STAR) Accessories for this modelHP EliteBook 8400 Notebook PC seriesHP EliteBook 8440p Notebook PC Accessories for this modelHP EliteBook 8440p Notebook PC (ENERGY STAR) Accessories for this modelHP EliteBook 8440w Mobile Workstation Accessories for this modelHP EliteBook 8440w Mobile Workstation (ENERGY STAR) Accessories for this modelHP EliteBook 8460p Notebook PC Accessories for this modelHP EliteBook 8460p Notebook PC (ENERGY STAR) Accessories for this modelHP EliteBook 8500 Mobile Workstation seriesHP EliteBook 8560w Mobile Workstation Accessories for this modelHP EliteBook 8560w Mobile Workstation (ENERGY STAR) Accessories for this modelHP EliteBook 8500 Notebook PC seriesHP EliteBook 8540p Notebook PC Accessories for this modelHP EliteBook 8540p Notebook PC (ENERGY STAR) Accessories for this modelHP EliteBook 8540w Mobile Workstation Accessories for this modelHP EliteBook 8540w Mobile Workstation (ENERGY STAR) Accessories for this modelHP EliteBook 8560p Notebook PC Accessories for this modelHP EliteBook 8560p Notebook PC (ENERGY STAR) Accessories for this modelHP EliteBook 8700 Mobile Workstation seriesHP EliteBook 8760w Mobile Workstation Accessories for this modelHP EliteBook 8760w Mobile Workstation (ENERGY STAR) Accessories for this modelHP EliteBook 8700 Notebook PC seriesHP EliteBook 8740w Mobile Workstation Accessories for this modelHP EliteBook 8740w Mobile Workstation (ENERGY STAR) Accessories for this modelHP ProBook 5300 Notebook PC seriesHP ProBook 5310m Notebook PC Accessories for this modelHP ProBook 5310m Notebook PC (ENERGY STAR) Accessories for this modelHP ProBook 5330m Notebook PC Accessories for this modelHP ProBook 5330m Notebook PC (ENERGY STAR) Accessories for this model

Antenna Dual high efficiency 5 band antennae with spatial diversity, mounted in the display enclosure Connector Description PCI-Express MiniCard, USB 2.0 interface LED LED Off - Radio Off; Solid LED On - Radio On Manufacturer Warranty HP un2420 EV-DO/HSDPA Mobile Broadband Module has a one-year limited warranty or the warranty remaining for the HP product in which it is installed. Technical support is available seven days a week, 24 hours a day, as well as in online support forums. Certain restrictions and exclusions apply. Network Controller EV-DO/HSDPA Network interface Integrated Qualcomm Gobi technology Product dimensions (W x D x H) 2.01 x 1.18 x 0.18 in Standard connectivity GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS), 1900MHz (PCS); UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I), 1900MHz (UTRA FDD Band II), 900MHz (UTRA FDD Band VIII), 850MHz (UTRA FDD Band V); 1xEVDO/1xRTT with receive diversity: 850MHz (Band Class0-Cell), 1900MHz (Band Class1-PCS) Transfer Rate UMTS (HSPA) – 7.2 Mbps (Download ), 5.76 Mbps (Upload); CDMA (EVDO Release A) – 3.1 Mbps (Download), 1.8 Mbps (Upload) Warranty HP un2420 EV-DO/HSDPA Mobile Broadband Module has a one-year limited warranty or the warranty remaining for the HP product in which it is installed. Technical support is available seven days a week, 24 hours a day, as well as in online support forums. Certain restrictions and exclusions apply. Weight ( Imperial ) 0.41 oz Weight ( Metric ) 11.5 g Wireless technologies GSM/GPRS/EDGE: Class B, Multi-slot operation, coding schemes CS1 – CS4 and MSC1 – MSC9.; UMTS/WCDMA: Release 99 and Release 6; CDMA: 1xEVDO Release 0 and Release A, IS-95A, IS-95B, IS-2000

Extended specifications

Physical Characteristics

Weight (Approximate) 0.41 oz

Miscellaneous

Additional Information Preloaded HP Connection Manager software
