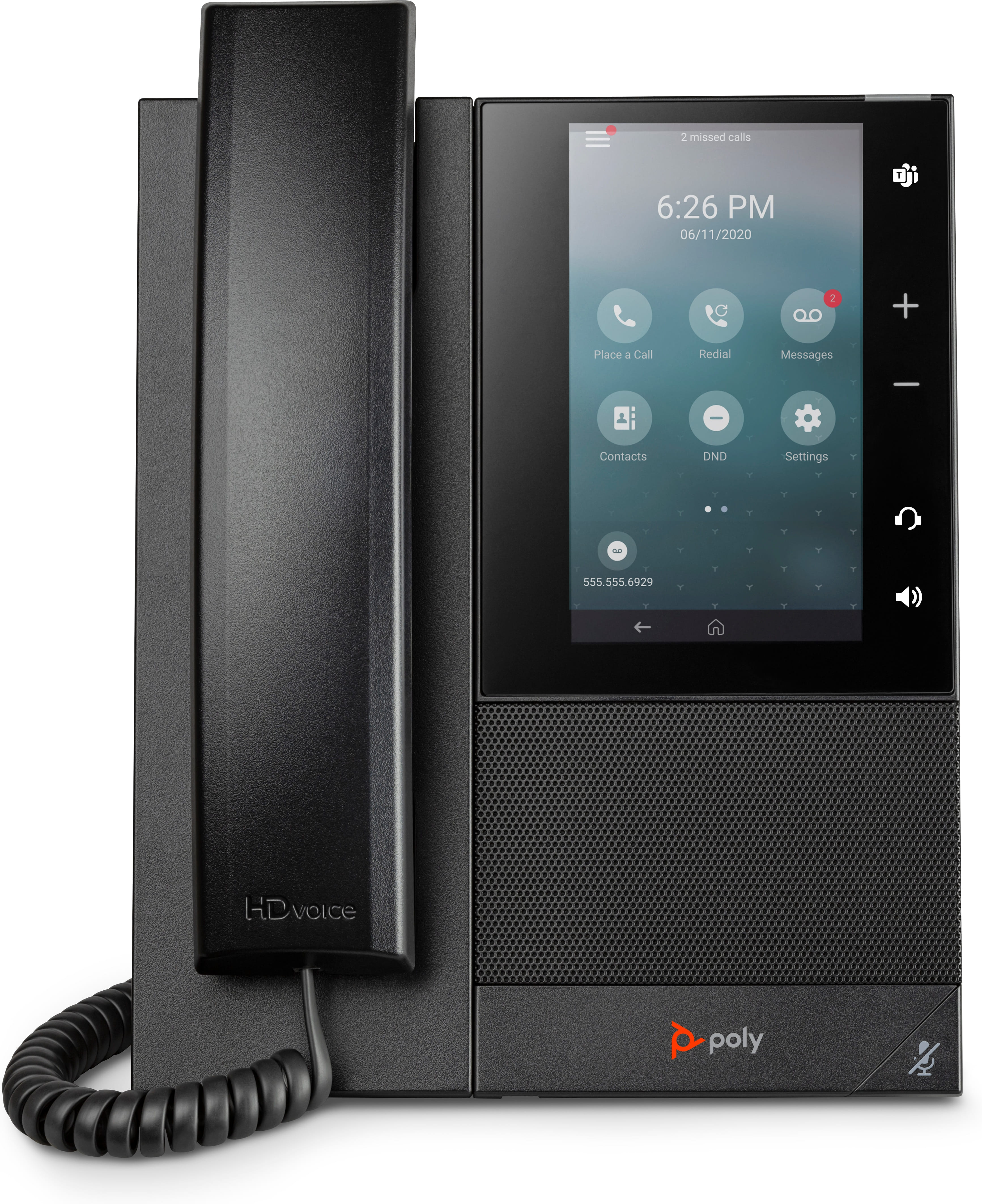

HP Polycom CCX 505 Media Phone Open SIP PoE

Design
Product type The sub-category of the product.	IP Phone
Handset type	Wired handset
Product colour The colour e.g. red, blue, green, black, white.	Black

Performance
Compatible operating systems List of desktop operating systems tested as compatible with this product.	Android 12

Phone features
Lines quantity The number of lines in the phone.	24 lines
Caller ID The name and/or number of the caller comes up on screen when they ring the phone. You also send your caller ID when you call someone else unless you choose to deactivate it.

Display
Display The description of display that can includes display type, resolution, size etc.	LCD
Display diagonal Size of the display for this product, measured diagonally, usually in inches.	12.7 cm (5")
Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.	720 x 1280 pixels
Aspect ratio The aspect ratio is the ratio of the width of a shape to its height. For example, 4:3 is common for standard displays and 16:9 is the ratio for Widescreen TV.	9:16
Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.

Audio
Speakerphone Device has a microphone and loudspeaker provided separately from those in the handset. This device allows multiple persons to participate in a conversation. The loudspeaker broadcasts the voice or voices of those on the other end of the telephone line, while the microphone captures all voices of those using the speakerphone.
Voice codecs	G.722, G.729ab, G.711alaw, iLBC, G.711ulaw, OPUS

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Gigabit Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	4.2
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	HTTPS

Technical details
Total carbon footprint (kg of CO2e) The total mean carbon footprint value generated across various lifecycle stages (manufacturing, transportation / logistics, use and end of life) per unit (for one single product) i.e., measured in kilograms CO2e.	60

Ports & interfaces
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1
USB Type-C ports quantity	1
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	2
RJ-9 ports quantity	1

Certificates
Sustainability certificates	ENERGY STAR
Compliance certificates Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.	EAC, RoHS, Federal Communications Commission (FCC), CE

Power
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C

Weight & dimensions
Package width The distance from one side of the packaging to the other.	263 mm
Package depth The distance from the front to the back of the packaging.	243 mm
Package height The distance from the top to the bottom of the packaging.	70 mm
Package weight Weight of the packaged product.	300 g

Packaging content
Handset
Number of handles included The amount of handles, which are the part by which a thing is held, carried or controlled.	1 pc(s)
Cables included	LAN (RJ-45)
Stand included

Logistics data
UNSPSC-code	43191508
Country of origin Country where the device is made. Aka Country of manufacture (COM).	China, Vietnam, Taiwan
Pallet gross weight	357 kg
