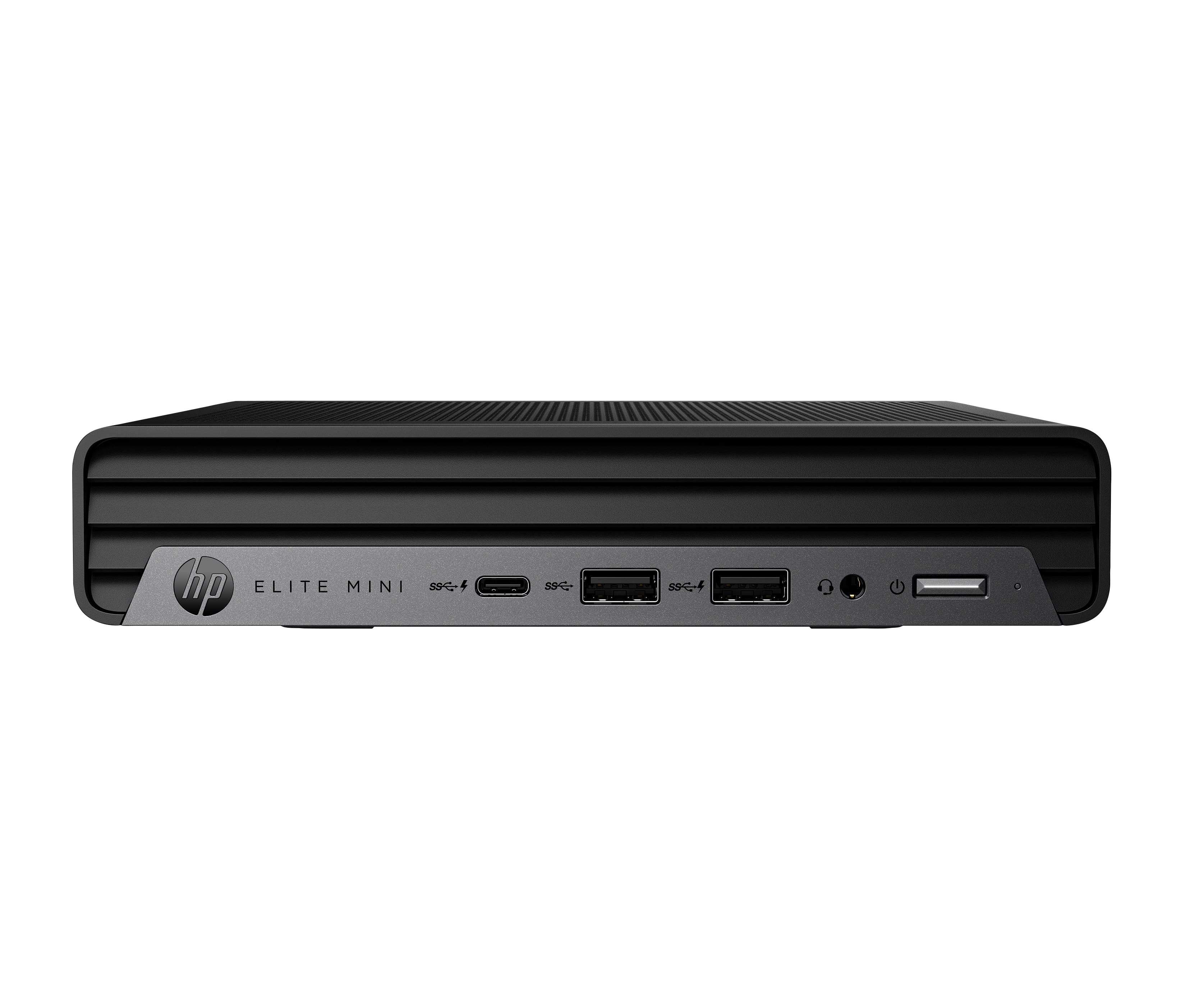

HP Elite Mini 800 G9 Desktop PC, i7-14700T, 32GB RAM, 1TB SSD, Windows 11 Pro

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel® Core™ i7
Processor generation	Intel® Core™ i7 (14th gen)
Processor model The model number for the processor in a computer.	i7-14700T
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	20
Processor threads	28
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	5,2 GHz
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5 GHz
Efficient-core Max Turbo Frequency	3,7 GHz
Performance-core base frequency	1,3 GHz
Efficient-core base frequency	0,9 GHz
Processor cache	33 MB
Processor cache type	Smart Cache
Processor base power	35 W
Maximum turbo power	106 W

Memory
Internal memory A computer's memory which is directly accessible to the CPU.	32 GB
Maximum internal memory The maximum internal memory which is available in the product.	64 GB
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR5-SDRAM
Memory layout (slots x size) The slots and size of the memory for the CPU.	1 x 32 GB
Memory slots Number and type of memory expansion slots, including connector and memory module descriptions.	2x SO-DIMM
Memory clock speed The frequency at which the memory (e.g. RAM) runs.	4800 MHz

Storage
Total storage capacity The total amount of data that can be stored on the device.	1 TB
Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).	SSD
Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.
Number of storage drives installed Amount of storage drives built into the device.	1
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity The Solid State Drive's data storage capacity.	1 TB
SSD interface The type of interface(s) with which the Solid State Drive is connected to other hardware.	PCI Express
NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.
SSD form factor The size of the solid-state drive, given in inches	M.2

Graphics
Discrete graphics card
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Intel UHD Graphics 770

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 6E (802.11ax)
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Antenna type Type of antenna, also known an aerial, e.g. external, internal.	2x2
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	5.3

Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2x2 Type-C ports quantity	1
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	1
HDMI version	2.1
DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.	2
DisplayPort version	1.4
Headphone outputs Number of sockets /ports where headphones are connected.	1

Design
Chassis type The type of rigid framework onto which is the hosuing for device components.	Mini PC
Colour name	Jack black
Number of 2.5" bays	1
Product colour The colour e.g. red, blue, green, black, white.	Black
Country of origin Country where the device is made.	China

Performance
Market positioning Under which category can the device be positioned in the market, e.g. camera phone.	Premium
Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard.	Intel Q670
Audio chip	Realtek ALC3252
Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
Password protection type	BIOS, Power on, User
Trusted Platform Module (TPM)
Product type The sub-category of the product.	Mini PC
Trusted Platform Module (TPM) version	2.0

Software
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Windows 11 Pro

Brand-specific features
HP Support Assistant Get answers to everyday support questions about your HP PC and printers with this free self-help tool built into your computer. Optimized to provide an enhanced support experience, it’s automatically updated and ready to go the first time you boot up. And when you need hands-on help, you can use the tool to directly connect to HP Support.
HP Software provided	HP Notifications; HP PC Hardware Diagnostics UEFI; HP Connection Optimizer; HP Privacy Settings; HP PC Hardware Diagnostics Windows; HP Desktop Support Utilities; MyHP; HP Easy Clean; Touchpoint Customizer for Commercial; HP Easy Clean Keyboard Driver; HSA Fusion for Commercial; HSA Telemetry for Commercial
HP segment	Business

Power
Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.	90 W
Power supply input voltage	100 - 240 V
Power supply input frequency The frequency of the electricity, usually measured in Hertz (Hz), which is supplied by the power supply. Mains electricity in many parts of the world is 50Hz.	50/60 Hz

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	10 - 35 °C
Operating relative humidity (H-H)	10 - 90%

Sustainability
Sustainability compliance
Sustainability certificates	ENERGY STAR

Weight & dimensions
Width The measurement or extent of something from side to side.	177 mm
Depth The distance from the front to the back of something.	175 mm
Height The measurement of the product from head to foot or from base to top.	34 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	1,42 kg
Package width The distance from one side of the packaging to the other.	498 mm
Package depth The distance from the front to the back of the packaging.	132 mm
Package height The distance from the top to the bottom of the packaging.	235 mm
Package weight Weight of the packaged product.	2,95 kg

Packaging content
Keyboard included A keyboard is part of the bundle/set.

Display
Display included This product includes a display.
