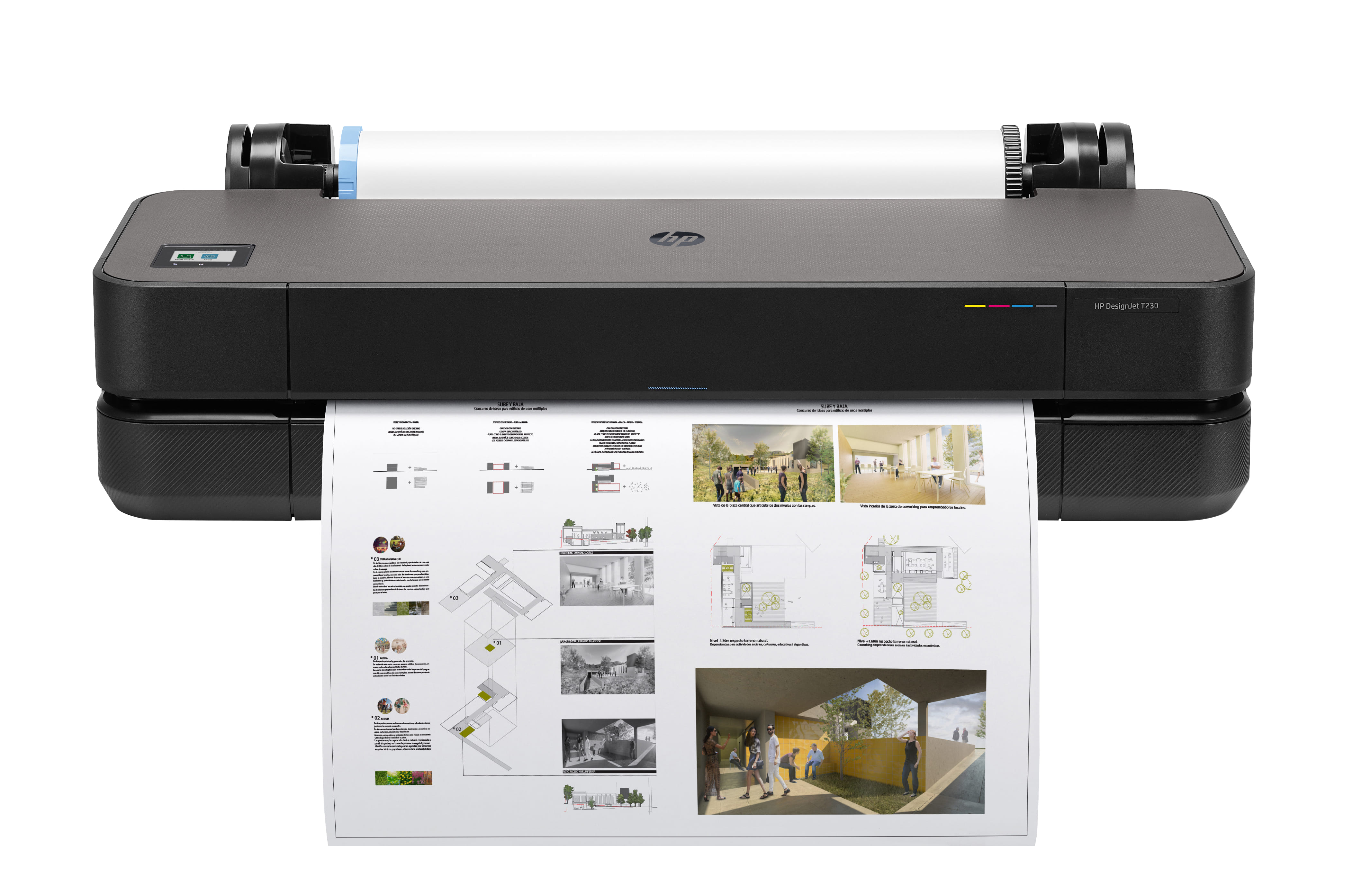

HP DesignJet T230 24" Large Format A1 Printer

Printing
Print resolution colour	2400 x 1200 DPI
Print technology Indicates the method used to print by this product.	Thermal inkjet
Colour The main colour of the product.
Maximum resolution Maximum printing resolution.	2400 x 1200 DPI
Number of print cartridges The amount of print cartridges. A print cartridge is a container holding a quantity of ink which is inserted into a inkjet printer mechanism.	4
Page description languages	URF, JPEG
Printing colours The colours that can be produced by the printer.	Black, Yellow, Cyan, Magenta
Print head Component of a printer that applies the mark or image to the paper.	1 (cyan , magenta, yellow, black)
Print speed (normal quality, A1)	68 pph

Copying
Copying Description of copying function (colour or monochrome).

Scanning
Scanning To convert a document or picture into digital form for storage or processing on a computer, by scanning it using a scanner.

Paper handling
Maximum print size The maximum size that an image can be printed with a good resolution.	610 x 1897 mm
Paper tray media types	Bond paper, Coated paper, Glossy paper, Heavy paper, Matte paper, Photo paper, Plain paper, Satin paper, Semi-glossy paper
ISO A-series sizes (A0...A9) Different sizes of paper from A0 (big) to A9 (small). A4 is the most common size used for printing documents.	A1, A2, A3, A4
Cut sheets
Media thickness	0.3 mm
Maximum roll diameter The maximum size of roll that can be used, measured by the diameter which is the distance from one side to the other with a straight line passing through the centre of the roll.	10 cm
Roll weight (rear roll)	4.1 kg

Ports & interfaces
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
USB port The device features a socket into which a USB cable can be plugged.
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Direct printing With direct printing it is possible to print your photographs or other documents directly to a printer from a compatible device, without the use of a computer.
Wi-Fi Direct
Mobile printing technologies Apps etc. which allow users to send a print job from a smartphone or tablet to a printer via a wireless network.	Apple AirPrint

Performance
Product colour The colour e.g. red, blue, green, black, white.	Grey
Built-in display A display which is part of the product, so you do not need to attach another display.
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	512 MB
Introduction year	2024
Country of origin Country where the device is made. Aka Country of manufacture (COM).	China
Certification	Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC)
HP segment	Business

Brand-specific features
HP Dynamic security Cartridges with non-HP chips might not work today or in the future.

Power
Power consumption (standby) The amount of electricity that is consumed when the product is on standby.	0.2 W
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	35 W
Power consumption (sleep)	2.1 W
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50/60 Hz

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	5 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-25 - 55 °C

System requirements
Windows operating systems supported Windows vesions wich can be used with the device.
Mac operating systems supported Mac operating systems e.g. OS X can be used with the device.

Sustainability
Sustainability compliance
Sustainability certificates	ENERGY STAR

Weight & dimensions
Width The measurement or extent of something from side to side.	1013 mm
Depth The distance from the front to the back of something.	440 mm
Height The measurement of the product from head to foot or from base to top.	285 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	21.5 kg

Packaging data
Package width The distance from one side of the packaging to the other.	1155 mm
Package depth The distance from the front to the back of the packaging.	575 mm
Package height The distance from the top to the bottom of the packaging.	405 mm
Package weight Weight of the packaged product.	27 kg
Bundled software Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer.	HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS
