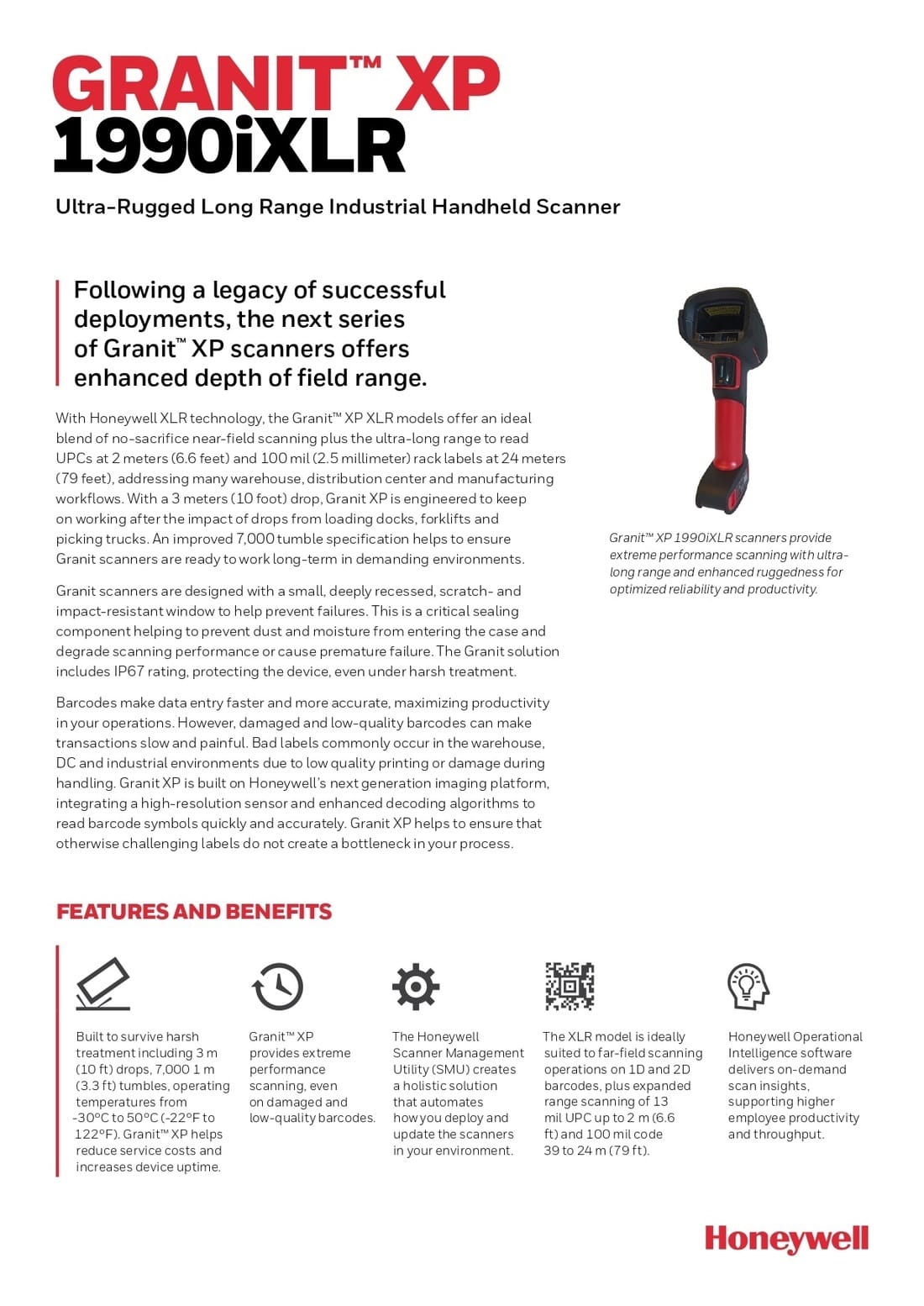

Handheld scanner; 2D imager, extra long range; Vibration; Multi-interface: RS232, KBW, USB, IP65, IP67, incl RS232 cable
| Scanning | |
| Type Characteristics of the device. | Handheld bar code reader |
| Scanner type Indicates the type of scanner this product is. | 1D/2D |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | LED |
| Linear (1D) barcodes supported The product can read linear (1D) barcordes. | PDF417, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported The product can read matrix (2D) barcordes. | Code 39, Data Matrix, PDF417, QR Code |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Pitch reading angle | -45 - 45° |
| Yaw reading angle | -65 - 65° |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | Keyboard wedge, RS-232, USB |
| Performance | |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP67 |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Red |
| Power | |
| Power source type What the power source is. | Battery, DC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 2.35 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 0.5 W |
| Battery type Description of battery supplied with the product, such battery form factor (e.g. AA/AAA). | Built-in battery |
| Input voltage The voltage (V) which is required to power the product. | 4 - 5.5 V |
| Power consumption | 2.35 mA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 100 mm |
| Depth The distance from the front to the back of something. | 76 mm |
| Height The measurement of the product from head to foot or from base to top. | 192 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 320 g |
| Packaging data | |
| Cables included | RS-232 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| SKU | 685307 |
| MPN | 1990IXLR-3SER-R |
| Brand | Honeywell |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
