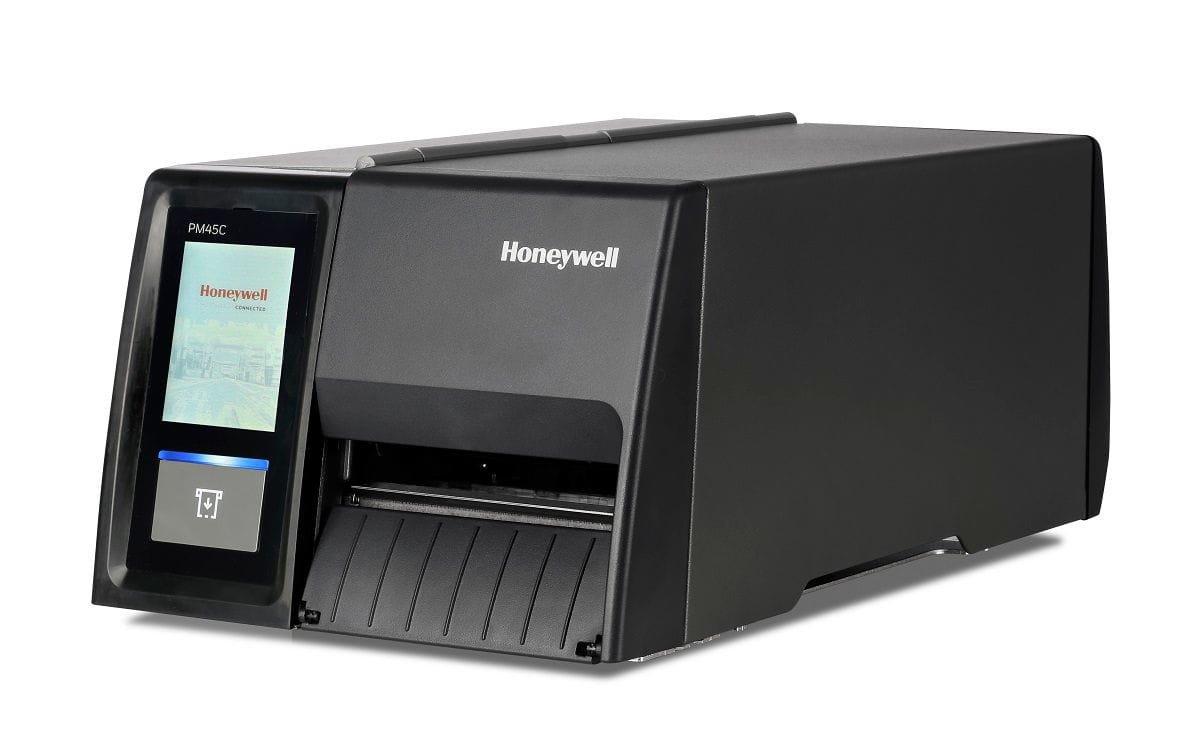

Honeywell PM45C, Thermal transfer, 203 x 203 DPI, 350 mm/sec, Wired, Black
The Honeywell PM45 is built for smart label solutions that help enterprises enhance automation and intelligence in manufacturing and supply chain management for high operating efficiency.
Enterprises today are facing increasing challenges on production flexibility, inventory turnover, and cost control. The Honeywell PM45 industrial printer is designed to give businesses the flexibility and precision for high-volume printing. The PM45 printer's track-and-trace functionality is aimed at improving print efficiency and supply chain transparency within a variety of industries, including food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management.
Built on the Honeywell print platform, the durable PM45 printer offers print speeds of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45 printer can ensure high-quality prints for barcodes, texts, and images, even on small electronic components and medical device labels.
As a highly connected industrial printer, the PM45 is packed with enhanced WWAN connectivity to enable deployment with minimal limitation from site network topology. The PM45 printer's versatility allows the user to incorporate RFID, parallel, industrial, and applicator interfaces to address unpredictable future business needs. To help your transformation to intelligent manufacturing and supply chain management, the PM45 printer supports variable network protocols and multiple print languages to enable easy integration into your system, whether it is cloud-based or on a local server.
Embedded with Honeywell's Smart Parse software, the PM45 allows for quick position changes, sizing of objects and barcodes, or font type on labels, without the need for backend system changes or programming skills. With Honeywell's Operational Intelligence software, users can remotely manage and monitor the PM45 printer's diagnostics and output performance. The PM45 supports a wide range of media
Enterprises today are facing increasing challenges on production flexibility, inventory turnover, and cost control. The Honeywell PM45 industrial printer is designed to give businesses the flexibility and precision for high-volume printing. The PM45 printer's track-and-trace functionality is aimed at improving print efficiency and supply chain transparency within a variety of industries, including food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management.
Built on the Honeywell print platform, the durable PM45 printer offers print speeds of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45 printer can ensure high-quality prints for barcodes, texts, and images, even on small electronic components and medical device labels.
As a highly connected industrial printer, the PM45 is packed with enhanced WWAN connectivity to enable deployment with minimal limitation from site network topology. The PM45 printer's versatility allows the user to incorporate RFID, parallel, industrial, and applicator interfaces to address unpredictable future business needs. To help your transformation to intelligent manufacturing and supply chain management, the PM45 printer supports variable network protocols and multiple print languages to enable easy integration into your system, whether it is cloud-based or on a local server.
Embedded with Honeywell's Smart Parse software, the PM45 allows for quick position changes, sizing of objects and barcodes, or font type on labels, without the need for backend system changes or programming skills. With Honeywell's Operational Intelligence software, users can remotely manage and monitor the PM45 printer's diagnostics and output performance. The PM45 supports a wide range of media
| Printing | |
| Print technology Indicates the method used to print by this product. | Thermal transfer |
| Colour The main colour of the product. |
 |
| Maximum resolution Maximum printing resolution. | 203 x 203 DPI |
| Number of printable dots | 8 dot |
| Print speed The maximum speed at which a printer can print. | 350 mm/sec |
| Printing colours The colours that can be produced by the printer. | Black |
| Maximum printing width The maximum width of the image that can be printed. | 10.8 cm |
| Margin depth settings | Fixed |
| Printing characters | 2D barcode, Barcode, Graphic, Text |
| Maximum print length | 4.8 m |
| Paper handling | |
| Maximum label width | 11.4 cm |
| Maximum roll diameter The maximum size of roll that can be used, measured by the diameter which is the distance from one side to the other with a straight line passing through the centre of the roll. | 21.3 cm |
| Core diameter | 7.62 cm |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Performance | |
| Page description languages | DP, DPL, IPL, XML, ZPL II |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 256 MB |
| Flash memory | 512 MB |
| Built-in barcodes | 1D, 2D |
| Image formats supported The type of image files that the device can use/display e.g. gif, JPEG (jpg). | BMP, GIF, PCX, PNG |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| Control type The way in which the device is controlled. | Touch |
| Power | |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 9.6 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Mobile operating systems supported The operating systems e.g. Android, iOS, that can be used with the mobile device. | Android, iOS |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 253 mm |
| Depth The distance from the front to the back of something. | 432 mm |
| Height The measurement of the product from head to foot or from base to top. | 181 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 12.6 kg |
| Logistics data | |
| Harmonized System (HS) code | 84433210 |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | CE, RoHS |
| Other features | |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP/IP suite (TCP, UDP, ICMP, IGMP), LPR/ LPD, Telnet/SSH, FTP/SFTP, BOOTP, DHCP, HTTP/HTTPS, SNMPv1/2c/3, SNMP-MIBII supported – over UDP/IP (private enterprise MIB included), SMTP Supports IPv4 and IPv6 |
| Languages support The product has support (help) for languages. | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian, Thai |
| SKU | 824844 |
| MPN | PM45CA1000030210 |
| Brand | Honeywell |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
