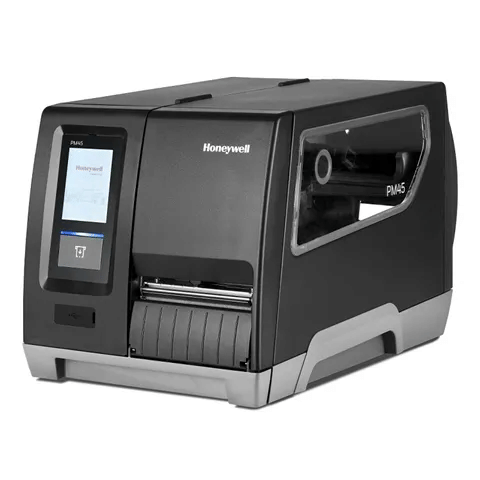

Honeywell PM45A, Full Touch Display, Ethernet, Fixed Hanger, TT, 203 DPI, No Power Cord
- Requires CAIEC The Honeywell PM45 series industrial printer is designed for high quality label printing in harsh industrial environments. The WWAN connective printer enables 24/7 data communication and real-time visibility of critical data from a wide range of locations.
Features and Benefits:
• The common software platform managed by Honeywell Cyber Security provides security updates throughout the entire lifecycle.
• The PM45 printer offers a scalable and upgradable solution to minimize the business constraints that may be faced in the future.
• The PM45 printer is the first industrial printer with WWAN connectivity designed for M2M and IoT applications.
• Operational Intelligence MDM tool provides predictive analytics and data on printer health, while SOTI and PrintSet MC are also supported.
• Smart printing capability allows users to configure and print without the need for a host computer.
Features and Benefits:
• The common software platform managed by Honeywell Cyber Security provides security updates throughout the entire lifecycle.
• The PM45 printer offers a scalable and upgradable solution to minimize the business constraints that may be faced in the future.
• The PM45 printer is the first industrial printer with WWAN connectivity designed for M2M and IoT applications.
• Operational Intelligence MDM tool provides predictive analytics and data on printer health, while SOTI and PrintSet MC are also supported.
• Smart printing capability allows users to configure and print without the need for a host computer.
| Printing | |
| Print technology Indicates the method used to print by this product. | Thermal transfer |
| Colour The main colour of the product. |
 |
| Maximum resolution Maximum printing resolution. | 203 x 203 DPI |
| Printable dot numbers | 8 dot |
| Print speed The maximum speed at which a printer can print. | 350 mm/sec |
| Printing colours The colours that can be produced by the printer. | Black |
| Maximum printing width The maximum width of the image that can be printed. | 10.8 cm |
| Margin depth settings | Fixed |
| Paper handling | |
| Maximum label width | 11.4 cm |
| Maximum roll diameter The maximum size of roll that can be used, measured by the diameter which is the distance from one side to the other with a straight line passing through the centre of the roll. | 21.3 cm |
| Core diameter | 7.6 cm |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Performance | |
| Page description languages | DP, DPL, IPL, XML, ZPL II |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 256 MB |
| Flash memory | 512 MB |
| Built-in barcodes | 1D, 2D, EAN128 |
| Built-in RFID module |
|
| Image formats supported The type of image files that the device can use/display e.g. gif, JPEG (jpg). | BMP, GIF, PCX, PNG |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | LEAP, PEAP, TLS, TTLS, WEP, WPA, WPA2 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| Control type The way in which the device is controlled. | Touch |
| Power | |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 9.6 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Mobile operating systems supported The operating systems e.g. Android, iOS, that can be used with the mobile device. | Android, iOS |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 284 mm |
| Depth The distance from the front to the back of something. | 483 mm |
| Height The measurement of the product from head to foot or from base to top. | 295 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 13.2 kg |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | RoHS, CE |
| SKU | 560378 |
| MPN | PM45A10000000200 |
