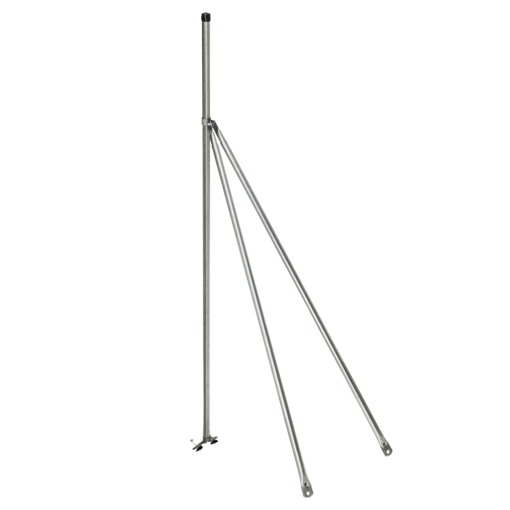

The Hills FB607286 tin tripod mount is suitable for tin roof installations. It is a highly economical solution for installing antennas at up to 1.8 metres above roof height.
Installations that will benefit from using this mount are ones that are faced with issues such as areas with high wind speeds or require extra load bearing capacity due to the weight or size of the antenna.
It is designed for applications such as:
Suitable for corrugated cladding profiles and deep-rib profiles such as TrimDEK. Not suitable for tile or light-gauge metal-framed roofs. All roof fixings must be through the crest of the cladding flutes.
SPECIFICATIONS:
Pole Diameter: 28 mm OD
Max. Roof Slope: 30Deg
Max. roof height: 8.5 m AGL
Cladding Rib Heights: 16 to 30 mm
Rafter & Batten Spacing: 900 to 1200 mm
| SKU | 669606 |
| MPN | FB607286 |
| Brand | Hills |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | N/A |
| Stock Availability | Available for Shipping |
