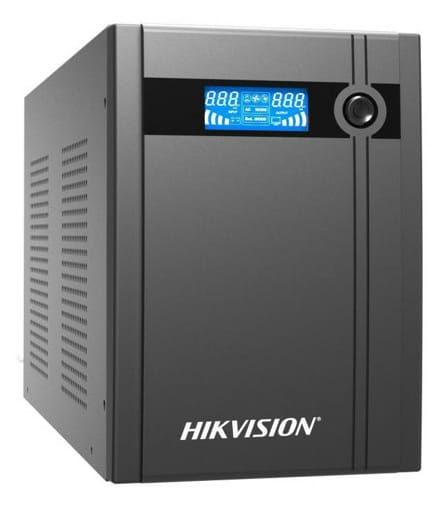

Hikvision DS-UPS3000, 3 kVA, 1800 W, Pulse width modulation (PWM), 140 V, 290 V, 50/60 Hz
Hikvision DS-UPS3000. Output power capacity: 3 kVA, Output power: 1800 W, Waveform: Pulse width modulation (PWM). AC outlet types: Type B, Power plug: Type B, AC outlets quantity: 6 AC outlet(s). Battery technology: Lead-Acid, Battery capacity: 9 Ah, Battery voltage: 12 V. Form factor: Mini Tower, Product colour: Black, Cooling type: Active. Certification: CB;CE-EMC;CE-LVD;RCM
| Features | |
| Output power capacity The maximum power that the device can produce. | 3 kVA |
| Output power The power that the device can produce. | 1800 W |
| Waveform | Pulse width modulation (PWM) |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 140 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 290 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 210 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 235 V |
| Output frequency | 50/60 Hz |
| Automatic Voltage Regulation (AVR) |
 |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 10 ms |
| Surge protection |
|
| Power protection features Features that protect the device against power problems e.g. overload. | Overload, Short circuit |
| Audible alarm(s) Alarms that make a sound when they are activated (set off). |
|
| Audible alarm modes | Fault, Low battery alarm, Overload alarm |
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | Type B |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | Type B |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 6 AC outlet(s) |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB port type | USB Type-B |
| Battery | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Lead-Acid |
| Battery capacity The amount of electric charge a battery can deliver at the rated voltage. The more electrode material contained in the cell the greater its capacity. A small cell has less capacity than a larger cell with the same chemistry, although they develop the same open-circuit voltage. Capacity is measured in units such as amp-hour (A·h). | 9 Ah |
| Battery voltage The voltage (V) of the battery. | 12 V |
| Number of batteries supported The number of batteries that can be used with the product. | 4 |
| Battery recharge time (90%) | 8 h |
| Design | |
| Form factor The shape or design of the product. | Mini Tower |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Built-in fan |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Control type The way in which the device is controlled. | Buttons |
| Display type Type of display (screen) e.g. LCD. | LCD |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 30 - 90% |
| Certificates | |
| Certification | CB;CE-EMC;CE-LVD;RCM |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 145 mm |
| Depth The distance from the front to the back of something. | 412 mm |
| Height The measurement of the product from head to foot or from base to top. | 210 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 18.5 kg |
| Packaging data | |
| Package weight Weight of the packaged product. | 21.5 kg |
| Logistics data | |
| Harmonized System (HS) code | 314001130 |
| Other features | |
| Overload protection |
|
| SKU | 794729 |
| MPN | 314001134 |
| Brand | Hikvision |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.hikvision.com/ |
