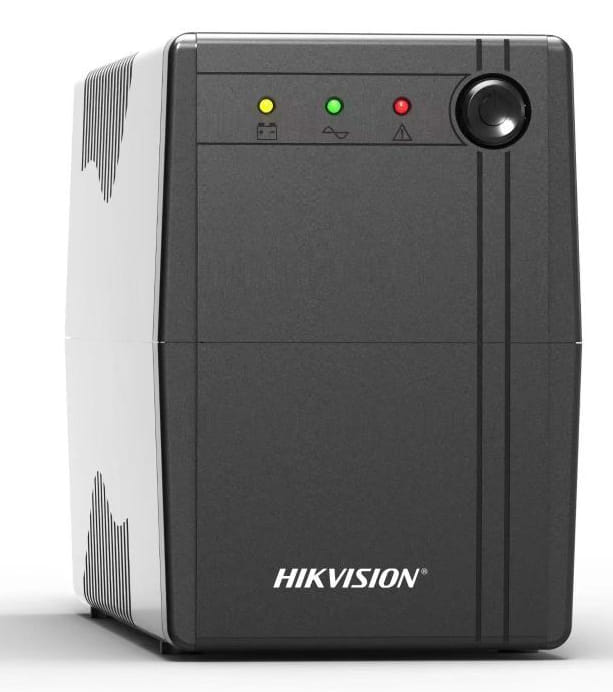

Hikvision DS-UPS1000, 1 kVA, 600 W, Pulse width modulation (PWM), 140 V, 290 V, 50/60 Hz
Hikvision DS-UPS1000. Output power capacity: 1 kVA, Output power: 600 W, Waveform: Pulse width modulation (PWM). AC outlets quantity: 6 AC outlet(s). Battery capacity: 9 Ah, Battery voltage: 12 V, Battery recharge time: 16 h. Form factor: Mini Tower, Product colour: Black. Width: 95 mm, Depth: 274 mm, Height: 139 mm
| Features | |
| Output power capacity The maximum power that the device can produce. | 1 kVA |
| Output power The power that the device can produce. | 600 W |
| Waveform | Pulse width modulation (PWM) |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 140 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 290 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 210 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 235 V |
| Output frequency | 50 Hz |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 10 ms |
| Surge protection |
 |
| Power protection features Features that protect the device against power problems e.g. overload. | Battery discharge, Overcharge, Overload, Short circuit |
| Audible alarm(s) Alarms that make a sound when they are activated (set off). |
|
| Audible alarm modes | Fault, Low battery alarm, Overload alarm |
| Power source type What the power source is. | AC |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 6 AC outlet(s) |
| Battery | |
| Battery capacity The amount of electric charge a battery can deliver at the rated voltage. The more electrode material contained in the cell the greater its capacity. A small cell has less capacity than a larger cell with the same chemistry, although they develop the same open-circuit voltage. Capacity is measured in units such as amp-hour (A·h). | 9 Ah |
| Battery voltage The voltage (V) of the battery. | 12 V |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 16 h |
| Design | |
| Form factor The shape or design of the product. | Mini Tower |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 50 °C |
| Operating relative humidity (H-H) | 30 - 90% |
| Storage relative humidity (H-H) | 20 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 95 mm |
| Depth The distance from the front to the back of something. | 274 mm |
| Height The measurement of the product from head to foot or from base to top. | 139 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 5.4 kg |
| SKU | 774245 |
| MPN | 304901288 |
| Brand | Hikvision |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.hikvision.com/ |
