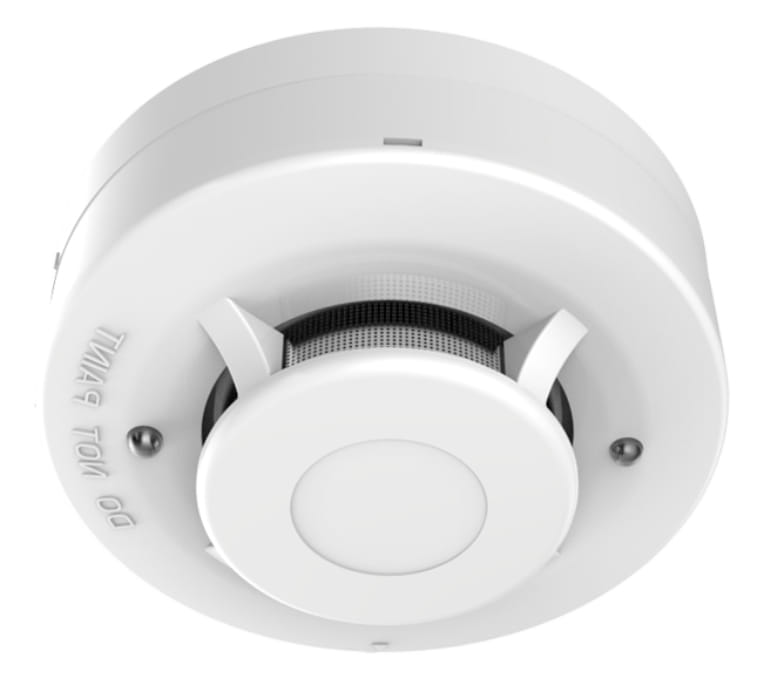

Hikvision DS-PDSMK-4BAR, Photoelectrical reflection detector, Wired, White, Alarm, IP42, Surface-mounted
Hikvision DS-PDSMK-4BAR. Detector type: Photoelectrical reflection detector, Connectivity technology: Wired, Product colour: White. Power source: DC, Input voltage: 10.2 - 13.8 V. Diameter: 10 cm, Height: 35 mm
| Features | |
| Detector type The technology of detector e.g. optical. | Photoelectrical reflection detector |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| LED indicators | Alarm |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP42 |
| Mounting type Type of mounting e.g. wall mounting. | Surface-mounted |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | DC |
| Input voltage The voltage (V) which is required to power the product. | 10.2 - 13.8 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -25 - 80 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 98% |
| Weight & dimensions | |
| Diameter Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body. | 10 cm |
| Height The measurement of the product from head to foot or from base to top. | 35 mm |
| SKU | 823457 |
| MPN | 314300029 |
| Brand | Hikvision |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
