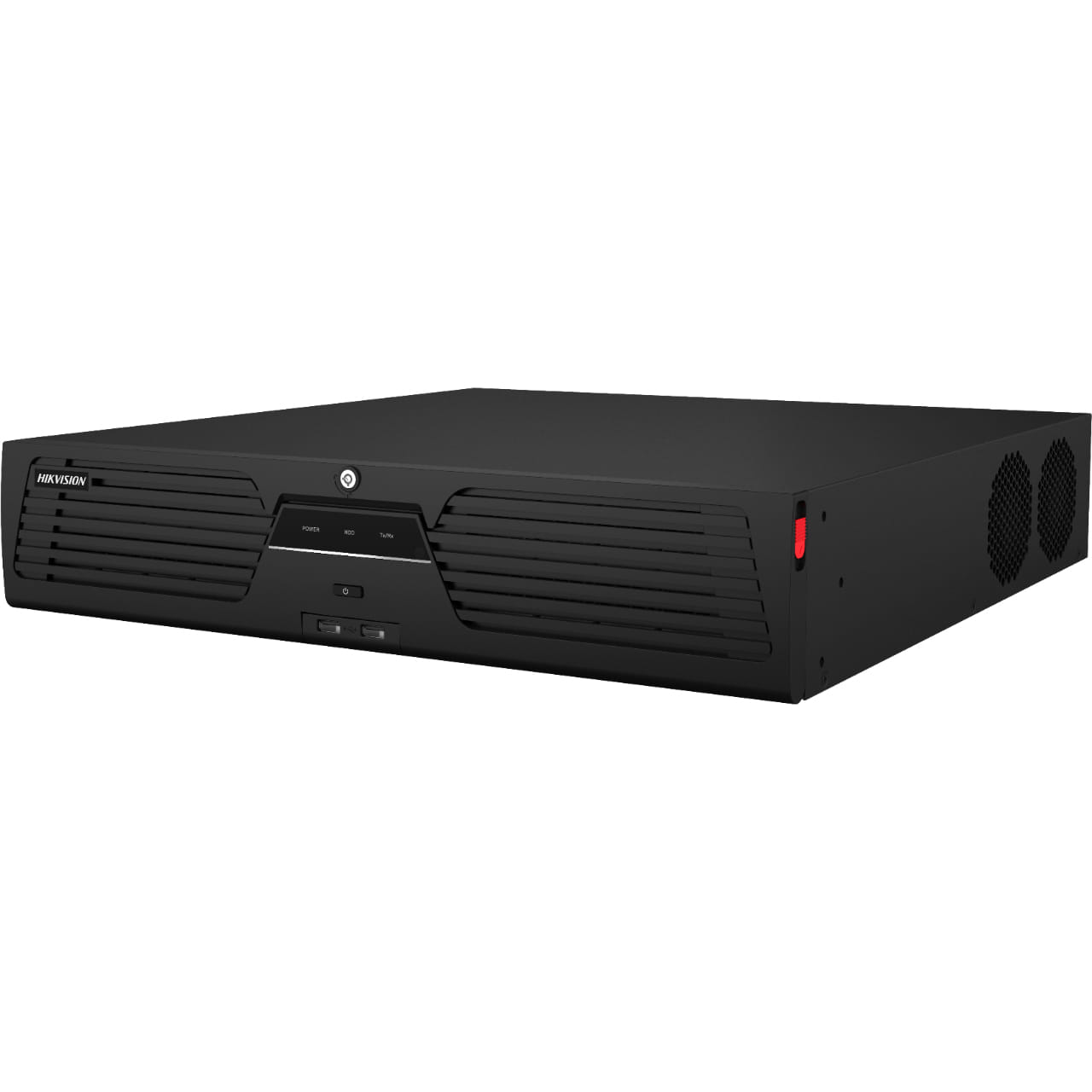

Hikvision DS-9632NI-M8, 32 channels, 7680 x 4320 pixels, 16 channels, 8K (7680 4320)/30Hz, 4K (3840 2160)/60Hz, 4K (3840 2160)/30Hz, 2K (2560 1440)/60Hz,..., H.265+/H.265/H.264+/H.264, G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
The Ultra Series is designed for extensive projects that require a large number of cameras, as well as a rack-mounted installation for back-end NVRs. The optimized H.265+ compression codec provides maximally efficient bandwidth and storage usage.
| Performance | |
| Video input channels The number of channels for video input that the device features. | 32 channels |
| Alarm input channels | 16 |
| Alarm output channels | 9 |
| Number of simultaneously playbacked channels | 16 channels |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 7680 x 4320 pixels |
| Supported resolutions | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Video codecs | H.265+/H.265/H.264+/H.264 |
| Audio codecs | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Input bandwidth | 320 Mbit/s |
| Output bandwidth | 400 Mbit/s |
| Hard drive | |
| Maximum storage capacity The maximum amount of data that can be stored in the device. | 14 TB |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | SATA, eSATA |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
 |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0, 1, 5, 6, 10 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| HDMI output The device features an HDMI output. |
|
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| VGA (D-Sub) output ports | 2 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio RCA outputs | 2 |
| eSATA ports quantity The number of ports (interfaces) for eSATA. eSATA is a a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. | 1 |
| BNC audio output |
|
| Internal SATA ports quantity | 8 |
| RS-485 ports | 1 |
| RS-232 interface |
|
| eSATA |
|
| Audio output The type of audio output that the device produces, and the connector(s). | 2-way |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Features | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 2U |
| Brand compatibility What other brands this brand can be used with. | Hikvision Digital Technology |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | CE, FCC Part 15 Subpart B, ANSI C63.4-2014 EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 50 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 445 mm |
| Depth The distance from the front to the back of something. | 465 mm |
| Height The measurement of the product from head to foot or from base to top. | 92 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 10 kg |
| SKU | 818730 |
| MPN | DS-9632NI-M8-NO HDD |
| Brand | Hikvision |
| Product Condition | Brand New/Unused |
| Product Use | General |
