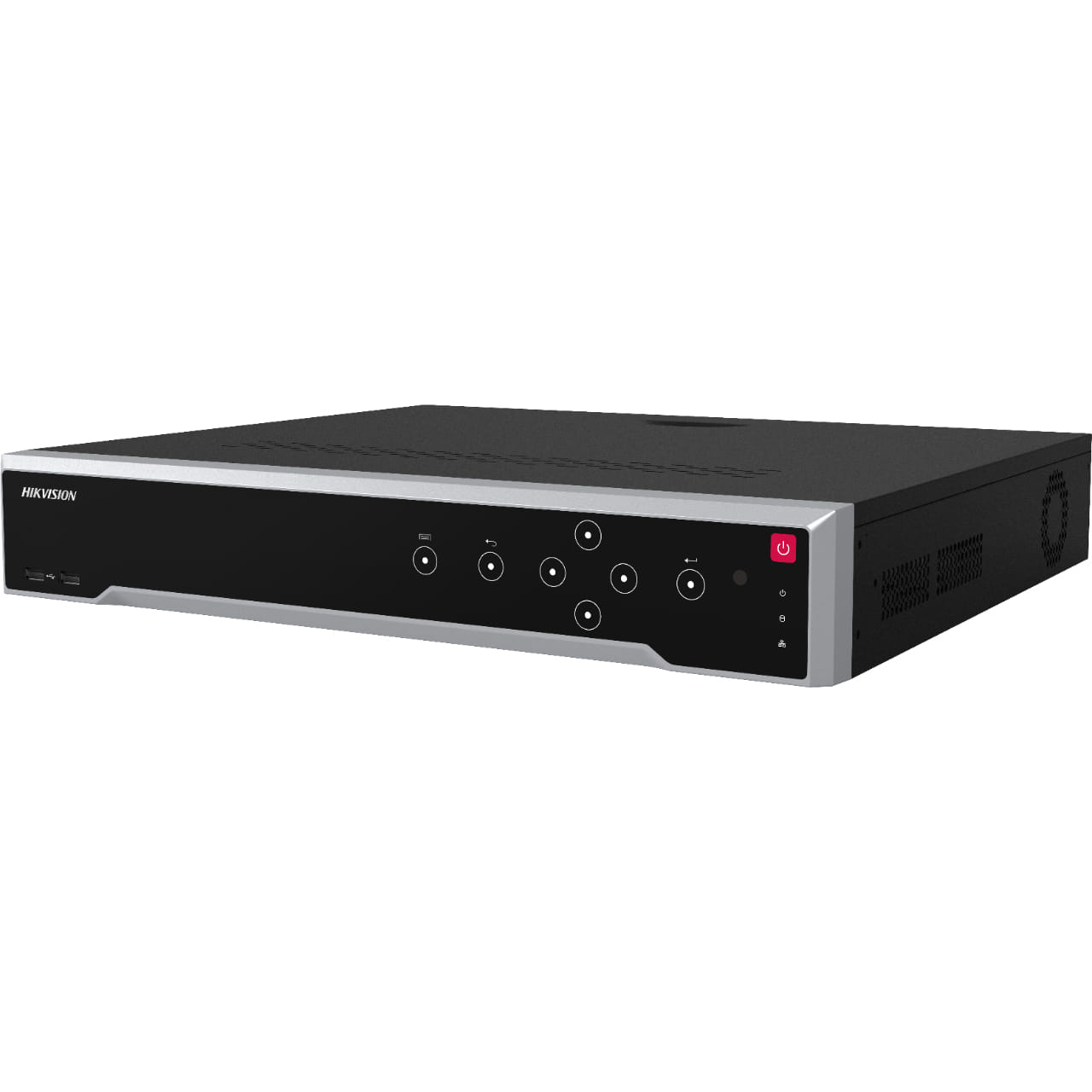

Hikvision DS-7732NI-M4/16P-4TB, 32 channels, 7680 x 4320 pixels, 16 channels, 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF, AAC, G.711 A-law, G.711 ?-law, G.722, G.726, H.264, H.264+, H.265, H.265+
Professional and Reliability
- H.265+ compression effectively reduces the storage space by up to 75%
- Dual-stream recording saves bandwidth
- Adopt stream over TLS encryption technology which provides more secure stream transmission service
- Support double verification for playback and downloading
HD Video Output
- Provide independent HDMI and VGA outputs
- HDMI video output at up to 8K resolution
- Dual 4K HDMI output resolution
Storage and Playback
- Up to 4 SATA interfaces for HDD connection
- 16-ch synchronous playback
Smart & POS Function
- Support multiple VCA (Video Content Analytics) events
- Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
- POS information overlay on live view and playback, and POS triggered recording and alarm
Network & Ethernet Access
- 16 independent PoE network interfaces
- 1 self-adaptive 10/100/1000 Mbps Ethernet interface
- Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
- Smooth streaming technology
- Support web access without plug-in
- H.265+ compression effectively reduces the storage space by up to 75%
- Dual-stream recording saves bandwidth
- Adopt stream over TLS encryption technology which provides more secure stream transmission service
- Support double verification for playback and downloading
HD Video Output
- Provide independent HDMI and VGA outputs
- HDMI video output at up to 8K resolution
- Dual 4K HDMI output resolution
Storage and Playback
- Up to 4 SATA interfaces for HDD connection
- 16-ch synchronous playback
Smart & POS Function
- Support multiple VCA (Video Content Analytics) events
- Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
- POS information overlay on live view and playback, and POS triggered recording and alarm
Network & Ethernet Access
- 16 independent PoE network interfaces
- 1 self-adaptive 10/100/1000 Mbps Ethernet interface
- Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
- Smooth streaming technology
- Support web access without plug-in
| Performance | |
| Video input channels The number of channels for video input that the device features. | 32 channels |
| Alarm input channels | 16 |
| Alarm output channels | 9 |
| Number of simultaneously playbacked channels | 16 channels |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 7680 x 4320 pixels |
| Supported resolutions | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF |
| Two-way talk |
 |
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | AAC, G.711 A-law, G.711 μ-law, G.722, G.726 |
| Video formats supported The type of video formats that can be used by this device. | H.264, H.264+, H.265, H.265+ |
| Input bandwidth | 320 Mbit/s |
| Output bandwidth | 400 Mbit/s |
| Wireless LAN features | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Hard drive | |
| Number of HDDs installed The number of hard drives built into the device. | 1 |
| HDD capacity The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB. | 4 TB |
| Number of HDDs supported The total number of hard drives that can be used in/with this product. | 5 |
| Total installed storage capacity As is, how much storage capacity does the product have. | 4 TB |
| Maximum storage capacity The maximum amount of data that can be stored in the device. | 14 TB |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | SATA, eSATA |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 17 |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) ports quantity | 16 |
| BNC video output |
|
| HDMI output The device features an HDMI output. |
|
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| eSATA ports quantity The number of ports (interfaces) for eSATA. eSATA is a a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. | 1 |
| Internal SATA ports quantity | 4 |
| RS-485 ports | 2 |
| RS-232 interface |
|
| eSATA |
|
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| Features | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 1.5U |
| Brand compatibility What other brands this brand can be used with. | Hikvision Digital Technology |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Power | |
| Power consumption (max) The maximum amount of power used by the device. | 15 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output current | 1 A |
| Output voltage | 12 V |
| Total Power over Ethernet (PoE) budget | 200 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 445 mm |
| Depth The distance from the front to the back of something. | 400 mm |
| Height The measurement of the product from head to foot or from base to top. | 75 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 5 kg |
| SKU | 818729 |
| MPN | DS-7732NI-M4-16P-4TB |
| Brand | Hikvision |
| Product Condition | Brand New/Unused |
| Product Use | General |
