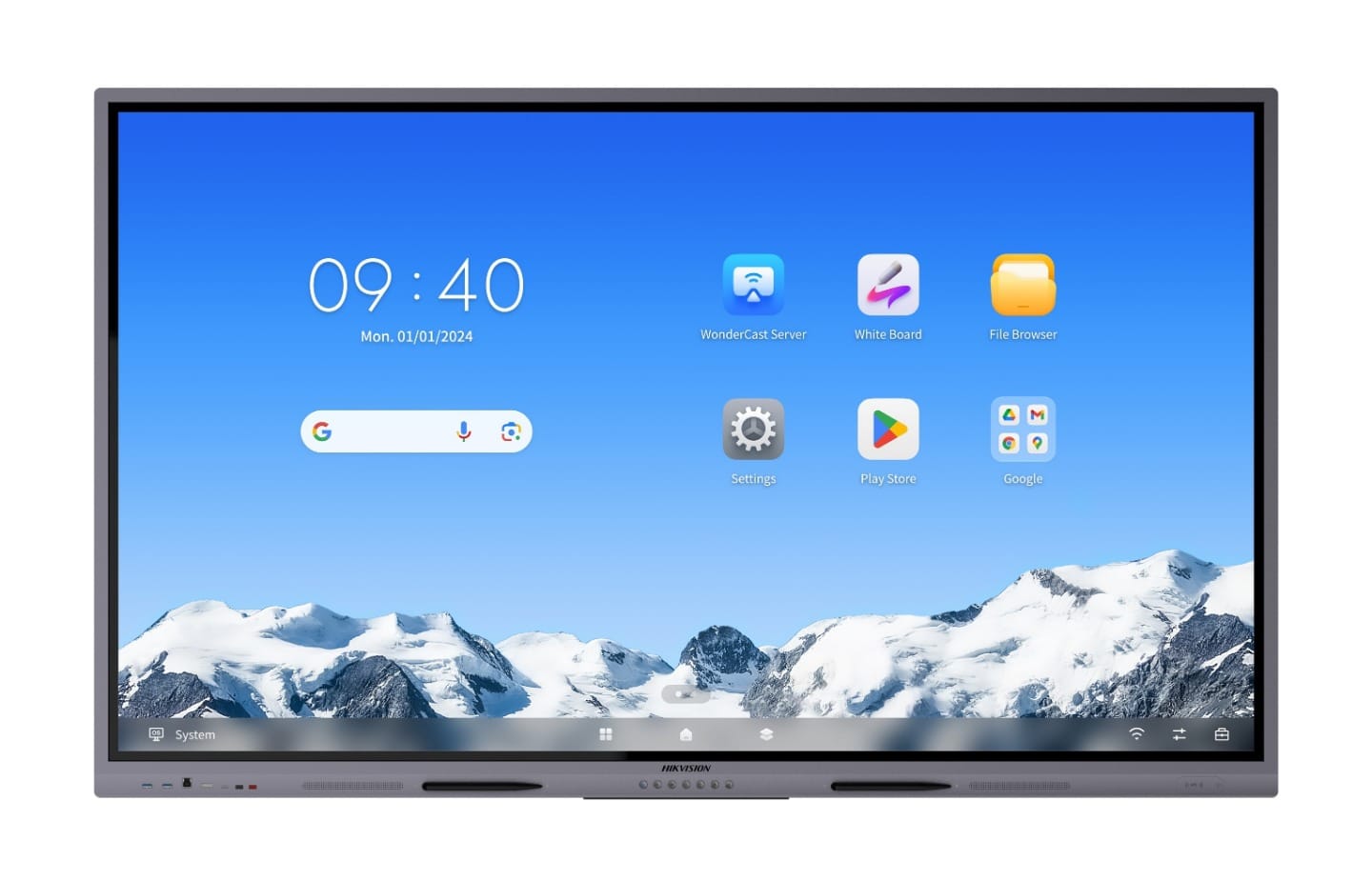

Hikvision DS-D5C86RB/A2L 86" 4K UHD Interactive Display

Display
Panel type	VA
LED backlight A backlight is a form of illumination used in liquid crystal displays (LCDs). One type of backlight is made by LEDs, which can be either white or RGB (red green blue). White LEDs are used most often in notebooks and desktop screens, and in virtually all mobile LCD screens. RGB LEDs for backlighting are found in high-end color proofing displays such as HP DreamColor LP2480zx monitor or selected HP EliteBook notebooks, as well as newer consumer grade displays such as Dell's Studio series laptops which have an optional RGB LED display.
LED backlighting type Backlighting is the illumination of a screen e.g. LCD (liquid crystal display). There are several types of backlighting with LEDs, e.g. full array, edge lit.	Direct-LED
Display diagonal Size of the display for this product, measured diagonally, usually in inches.	2.18 m (86")
Display technology The technology used in the display e.g. plasma, LED.	LED
Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.	3840 x 2160 pixels
Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.	480 cd/m²
HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD).	4K Ultra HD
Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.
Touchscreen technology	Infrared
Number of simultaneous touchpoints	50
Multi-touch
Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.	16:9
Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)	5 ms
Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black.	5000:1
Contrast ratio (dynamic) A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing.	30000:1
Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance.	178°
Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance.	178°
Display number of colours	1.07 billion colours
Pixel pitch This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image.	0.164 x 0.493 mm
Active display area (W x H)	1065.96 x 1895.04 mm
Display diagonal (metric) This is the size of the display screen, measured diagonally.	217 cm
Panel life The length of time that the panel can be used for.	50000 h
Colour depth	10 bit
Native refresh rate	60 Hz
Haze rate	25%
Surface hardness	9H
Touch response time	2 ms
RGB colour space	NTSC
Colour gamut	72%

Ports & interfaces
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	3
HDMI version	2.0
DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.
VGA (D-Sub) input ports Sockets in the device for VGA (D-Sub) inputs, which are sockets with 15 holes. The 15-pin VGA connector is found on many video cards, computer monitors, and high definition television sets.	1
USB port The device features a socket into which a USB cable can be plugged.
USB ports quantity	7
USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.	2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type The type of USB connector/port that this product has.	USB Type-A, USB Type-B, USB Type-C
USB 2.0 Type-B ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB Type-C DisplayPort Alternate Mode
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	2
Audio (L/R) in The two sockets (ports) for receiving left audio signal (white cable) and right audio signal (red cable).	1
Audio (L/R) out The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable).	1
RS-232 interface
Card reader integrated A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.

Audio
Built-in speaker(s) The device contains speaker(s) to produce sound.
Number of built-in speakers	3
RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.	65 W

Design
Product design The creation of a plan or convention for the construction of an object or a system.	Interactive flat panel
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Indoor
Orientation	Horizontal
Product colour The colour e.g. red, blue, green, black, white.	Grey
Screen shape	Flat
VESA mounting
Panel mounting interface The product can be used wih VESA mounting interfaces.	800 x 400 mm
Anti-glare screen Always gives an optimal view, even in direct sunlight.
Mounting type Type of mounting e.g. wall mounting.	Wall

Performance
Purpose What the product is used for.	Universal
Operating hours (hours/days)	16/7
HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
HDCP version	2.3
Optical bonding
Automatic gain control

Power
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	274 W
Power consumption (standby) The amount of electricity that is consumed when the product is on standby.	0.5 W
Power consumption (off)	0.3 W
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	274 kWh
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G

Computer system
Computer system
Computer system type	System on Chip (SoC)
Built-in processor Whether or not a processor is built into the device.
Processor manufacturer The manufacturer that produced the processor.	ARM
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	ARM Cortex
Processor architecture	ARM Cortex-A76+Cortex-A55
Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.	2.4 GHz
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	8
Internal memory A computer's memory which is directly accessible to the CPU.	8 GB
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Mali G610 MC4
Internal storage capacity The amount e.g of data which can be stored inside the device.	128 GB
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Android
Operating system version The version of the operating system used e.g. 4.1, 4.2 for Android.	14

Weight & dimensions
Display width	1960.4 mm
Display depth	82.5 mm
Display height	1158.2 mm
Display weight	58.5 kg

Packaging data
Package width The distance from one side of the packaging to the other.	2157 mm
Package depth The distance from the front to the back of the packaging.	223 mm
Package height The distance from the top to the bottom of the packaging.	1345 mm
Package weight Weight of the packaged product.	78.5 kg

Packaging content
Cables included	AC, HDMI, USB
Mounting kit

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%

Sensors
Ambient light sensor

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	1000 Mbit/s
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	WEP, WPA, WPA2

Other features
Manual
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	5.4
Built-in subwoofer The product has built-in subwoofer, which is a loudspeaker component designed to reproduce very low bass frequencies.
Subwoofer RMS power This is a measure of the continuous power (RMS power) produced by a subwoofer.	25 W
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1
Power supply type The type of power supply which this product uses.	Internal
Bluetooth Low Energy (BLE)
