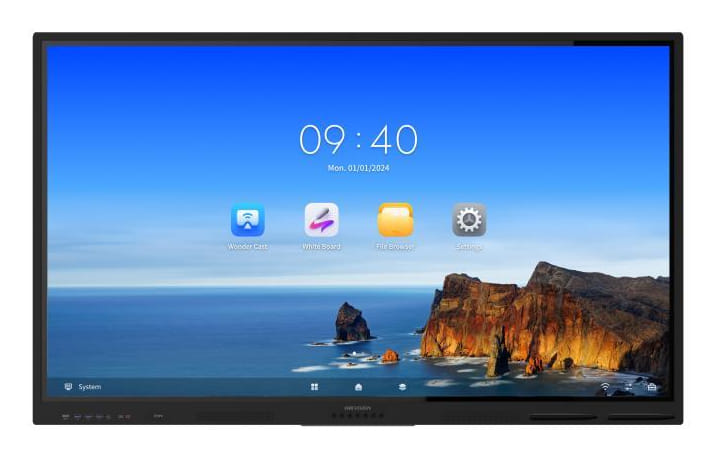

Hikvision DS-D5B75RB-EL 75" 4K Interactive Display

Display
Display diagonal Size of the display for this product, measured diagonally, usually in inches.	190.5 cm (75")
Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.	400 cd/m²
Display number of colours	1.07 billion colours
Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.	3840 x 2160 pixels
Anti-glare screen Always gives an optimal view, even in direct sunlight.
HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD).	4K Ultra HD
Panel type	IPS
LED backlight A backlight is a form of illumination used in liquid crystal displays (LCDs). One type of backlight is made by LEDs, which can be either white or RGB (red green blue). White LEDs are used most often in notebooks and desktop screens, and in virtually all mobile LCD screens. RGB LEDs for backlighting are found in high-end color proofing displays such as HP DreamColor LP2480zx monitor or selected HP EliteBook notebooks, as well as newer consumer grade displays such as Dell's Studio series laptops which have an optional RGB LED display.
LED backlighting type Backlighting is the illumination of a screen e.g. LCD (liquid crystal display). There are several types of backlighting with LEDs, e.g. full array, edge lit.	Direct-LED
Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.	16:9
Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black.	1200:1
Contrast ratio (dynamic) A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing.	15000:1
Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)	8 ms
Maximum refresh rate	60 Hz
Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.
Touch technology Technology of touch sensetive screen e.g. dual-touch.	Multi-touch
Touchscreen type There are a variety of touchscreen technologies that have different methods of sensing touch, including resistive and capacitive.	Infrared
Number of simultaneous touchpoints	40
Touch resolution	32768 x 32768 pixels
Touch system response time	5 ms
Touch object size (min)	2 mm
Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance.	178°
Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance.	178°
Pixel pitch This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image.	0.143 x 0.43 mm
Colour gamut	72%
Working area The area that can be worked on.	1652.2 x 930.8 mm
Haze rate	25%
Low Blue Light technology
Hardness A measure of how solid/firm/rigid something is.	9H

Computer system
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Android
Operating system version The version of the operating system used e.g. 4.1, 4.2 for Android.	13
Built-in processor Whether or not a processor is built into the device.
Processor architecture	ARM Cortex-A55
Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.	1.92 GHz
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	4
Maximum internal memory The maximum internal memory which is available in the product.	64 GB
User memory	64 GB
RAM capacity	4 GB
Graphics card	Mali-G52 MP2

Audio
Built-in speaker(s) The device contains speaker(s) to produce sound.
Number of built-in speakers	2
Speaker power	20 W

Projector
Built-in projector The device has an internal projector, to show images.

Network
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 5 (802.11ac)
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a, 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n)
Antenna type Type of antenna, also known an aerial, e.g. external, internal.	2x2
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	5.2
Bluetooth Low Energy (BLE)
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	100 Mbit/s
Near Field Communication (NFC)

Ports & interfaces
Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.	HDMI
HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
HDCP version	1.4/2.2/2.3
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	3
USB connector type The type of USB connector/port that this product has.	USB Type-A, USB Type-C
USB 2.0 Type-A hub ports quantity	3
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	2
USB Type-C ports quantity	1
HDMI version	2.0
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	2
Line-in
Line-out
OPS slot	1
RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports.	1

Ergonomics
Product colour The colour e.g. red, blue, green, black, white.	Black
VESA mounting
Panel mounting interface The product can be used wih VESA mounting interfaces.	800 x 400 mm
Wall mountable The product can be mounted on (attached to ) a wall.

Performance
Ambient light sensor
Temperature sensor
Operating hours (hours/days)	16/7

Power
Power consumption (max) The maximum amount of power used by the device.	217 W
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	175 W
Power consumption (standby) The amount of electricity that is consumed when the product is on standby.	0.5 W
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50/60 Hz

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	1713.2 mm
Depth The distance from the front to the back of something.	82.5 mm
Height The measurement of the product from head to foot or from base to top.	1025.5 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	49.1 kg

Packaging data
Package width The distance from one side of the packaging to the other.	1907 mm
Package depth The distance from the front to the back of the packaging.	223 mm
Package height The distance from the top to the bottom of the packaging.	1160 mm
Package weight Weight of the packaged product.	63 kg
Quantity per pack	1 pc(s)

Packaging content
Manual
Cables included	AC
Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
Mounting kit
Stylus included
Number of stylus pens	2
