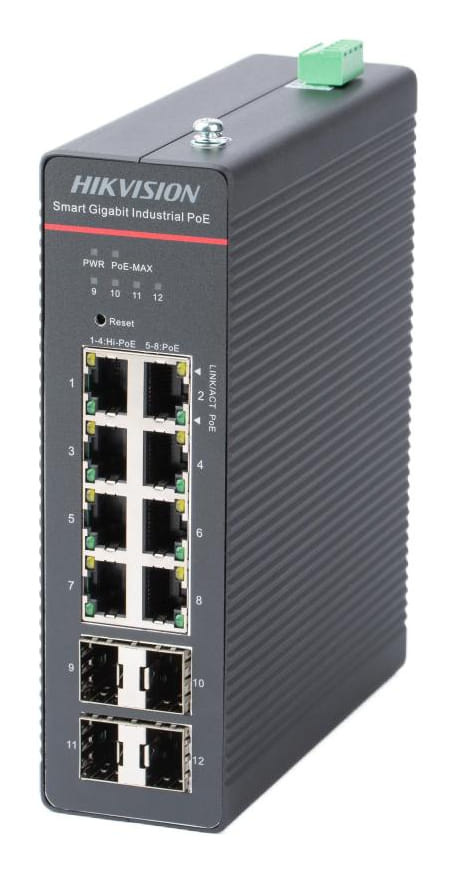

Hikvision DS-3T1512HP-SI-8P4F 8-Port GIG POE Switch

Management features
Switch type What switch device has, managed or unmanaged.	Managed
Quality of Service (QoS) support
Web-based management Using a website/web application to manage something.

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	8
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
SFP module slots quantity	4
Power connector	Terminal block (4-pin)

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Port mirroring
Link aggregation
Broadcast storm control
Rate limiting
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	1000 Mbit/s
VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Virtual LAN features	VLAN Identifier ( VLAN ID)
Number of VLANs	4094

Optical fiber
Switching optical modules type	Gigabit Ethernet

Data transmission
Switching capacity The data transfer capacity of the switch per second.	56 Gbit/s
Forwarding rate	41.66 Mpps
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	8000 entries
Packet buffer memory	4.1 MB

Security
DHCP features	DHCP client, DHCP snooping
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	SNMP, SNMPv2
Loop protection

Protocols
IP Source Guard (IPSG)

Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Stackable Devices can be placed on top of each other.
Product colour The colour e.g. red, blue, green, black, white.	Black
Housing material What the casing of the product is made of.	Metal
LED indicators
International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".	IP40
DIN rail mounting
Safety List of regulatory safety standards for all countries in which this product has been certified.	CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368- 1: 2014+A11: 2017)

Performance
Fanless

Power
Power source What is providing power for the product e.g. mains electricity.	DC
DC input voltage	48 - 57 V
Input current	7.5 A
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	7 W
Power consumption (max) The maximum amount of power used by the device.	307 W
Surge protection
Surge protection voltage	6 kV
Power protection features Features that protect the device against power problems e.g. overload.	Surge protection

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet (PoE) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	300 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-40 - 75 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions
Width The measurement or extent of something from side to side.	155 mm
Depth The distance from the front to the back of something.	130 mm
Height The measurement of the product from head to foot or from base to top.	46 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	840 g

Packaging content
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Packaging data
Package weight Weight of the packaged product.	1.16 kg

Sustainability
Sustainability compliance

Certificates
Compliance certificates Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.	CB, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), REACH, RoHS, WEEE
