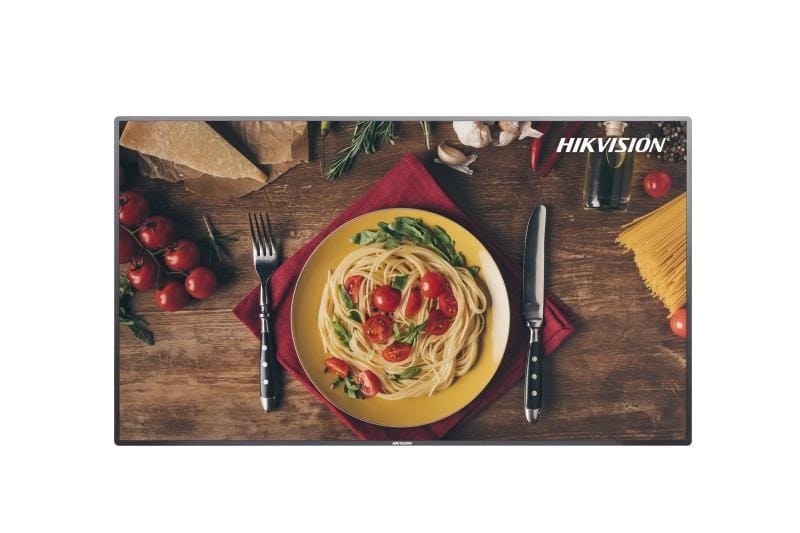

Hikvision D6032FN-B 32" FHD Digital Signage Display

Display
LED backlighting type Backlighting is the illumination of a screen e.g. LCD (liquid crystal display). There are several types of backlighting with LEDs, e.g. full array, edge lit.	Edge-LED
Display diagonal Size of the display for this product, measured diagonally, usually in inches.	80 cm (31.5")
Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.	1920 x 1080 pixels
Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.	380 cd/m²
HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD).	Full HD
Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.
Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.	16:9
Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)	8 ms
Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black.	1200:1
Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance.	178°
Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance.	178°
Display number of colours	16.78 million colours
Pixel pitch This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image.	0.36375 x 0.36375 mm
Active display area (W x H)	698.4 x 392.85 mm
Native refresh rate	60 Hz

Ports & interfaces
DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.
USB port The device features a socket into which a USB cable can be plugged.
USB ports quantity	2
USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.	2.0
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
Audio (L/R) in The two sockets (ports) for receiving left audio signal (white cable) and right audio signal (red cable).	1
Audio (L/R) out The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable).	1

Audio
Built-in speaker(s) The device contains speaker(s) to produce sound.
Number of built-in speakers	2
RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.	4 W

Design
Product design The creation of a plan or convention for the construction of an object or a system.	Digital signage flat panel
Orientation	Landscape
Product colour The colour e.g. red, blue, green, black, white.	Black
Mounting type Type of mounting e.g. wall mounting.	Wall

Performance
Purpose What the product is used for.	Universal

Power
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	75 W
Power consumption (standby) The amount of electricity that is consumed when the product is on standby.	0.3 W
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	31.5 kWh
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G

Computer system
Built-in processor Whether or not a processor is built into the device.
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	ARM Cortex
Processor model The model number for the processor in a computer.	A17
Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.	1.8 GHz
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	4
Internal memory A computer's memory which is directly accessible to the CPU.	2 GB
Internal storage capacity The amount e.g of data which can be stored inside the device.	8 GB
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Android 6.0.1
Video formats supported The type of video formats that can be used by this device.	3GP, ASF, AVI, DAT, MKV, MOV, MP4, MPG, TS, VOB, WEBM
Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4.	AAC, IMY, M4A, MP1, MP2, MP3, MXMF, OGA, OGG, OTA, RTTTL, RTX, WAV, WMA, XMF
Image formats supported The type of image files that the device can use/display e.g. gif, JPEG (jpg).	BMP, GIF, JPEG, JPG, PNG

Weight & dimensions
Width The measurement or extent of something from side to side.	723.2 mm
Depth The distance from the front to the back of something.	45.1 mm
Height The measurement of the product from head to foot or from base to top.	423.2 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	5.9 kg

Packaging data
Package width The distance from one side of the packaging to the other.	898 mm
Package depth The distance from the front to the back of the packaging.	152 mm
Package height The distance from the top to the bottom of the packaging.	544 mm
Package weight Weight of the packaged product.	8.6 kg

Packaging content
Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
Batteries included
Cables included	AC
Mounting kit

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 60 °C
Storage relative humidity (H-H)	10 - 80%

Logistics data
Harmonized System (HS) code	85285210

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Features
Wall mountable The product can be mounted on (attached to ) a wall.

Other features
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	2
Display viewable area (HxV)	698.4 x 392.85 mm
Power supply type The type of power supply which this product uses.	Internal
