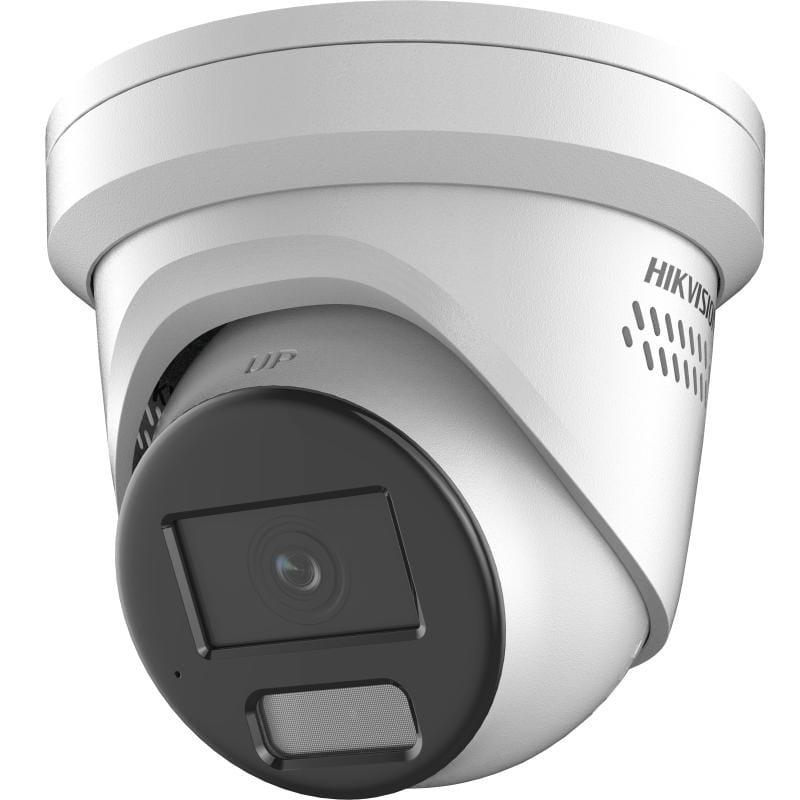

Hikvision 8MP ColorVu Fixed Turret Network Camera

Performance
Type Characteristics of the device.	IP security camera
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Indoor & outdoor
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wired
Wide Dynamic Range (WDR)
Day/night mode
Infrared (IR) cut-off filter
Alarm input/output
Built-in light There is a light which is inside/on the outside of the product.
Number of languages	33
Languages support The product has support (help) for languages.	Multi
Dynamic range	130 dB

Design
Form factor The shape or design of the product.	Turret
Mounting type Type of mounting e.g. wall mounting.	Ceiling
Product colour The colour e.g. red, blue, green, black, white.	White
Housing material What the casing of the product is made of.	Metal
Protection features Physical effects from which the product is protected e.g. water resistant, crash proof.	Dust resistant, Water resistant
International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".	IP67

Camera
Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality.	0 lx
Angle of rotation	360°
Lens viewing angle, horizontal	108.8°
Lens viewing angle, vertical	56.4°
Lens viewing angle, diagonal	134.3°
Tilt angle range	0 - 75°
Pan range	0 - 360°
Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure.	1/3 - 1/100000 s
Number of Privacy masking areas	4

Image sensor
Number of sensors	1
Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.	25.4 / 1.8 mm (1 / 1.8")
Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television).
Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.	CMOS

Lens system
Number of lenses The number of lenses installed in the device.	1
Detect distance	89 m
Observe distance	35 m
Recognize distance	17 m
Fixed focus
Maximum aperture number	1
Identify distance	8 m
Fixed focal length	2.8 mm

Night vision
Night vision Night vision is technology which allows you to see in low light conditions.
Night vision distance	30 m
LED type	IR/White
Infra-red wavelength	850 nm

Video
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	3840 x 2160 pixels
Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).	8 MP
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.	640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 3200 x 1800, 3840 x 2160
Frame rate	30 fps
Video streaming
Noise reduction
Noise reduction technology	3D noise reduction
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Privacy masking
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate	32 Kbps - 16 Mbps
Back Light Compensation (BLC)
Highlight Compensation (HLC)
Region of Interest (ROI) encoding

Audio
Audio input channels A channel is an electric circuit which acts as a path for a signal. Audio input channels allow audio signals to be communicated to the device.	1.0 channels
Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.	1.0 channels
Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4.	AAC-LC, G.711, G.722.1, G.726, MP2L2, MP3, PCM
Signal-to-Noise Ratio (SNR) This is the ratio of signal intensity to noise intensity.	52 dB
Built-in microphone Microphone that is found inside the product.
Bit rate range	8 - 320 Kbit/s
Sample rates	8 - 48 kHz

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type	Fast Ethernet
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Number of users The number of people that use or can use this product.	32 user(s)
User access level	Administrator, Operator, User
Quality of Service (QoS) support
Client interoperability	iVMS-4200, Hik-Connect
Live view
Number of simultaneous live view channels	6 channels

Storage
Built-in HDD The product has a hard drive built into it.
Card reader integrated A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Compatible memory cards Types of memory cards which can be used with this product.	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size The maximum size of memory card that can be used with this device.	512 GB

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
Terminal block port

Security
Alarm input channels	1
Alarm output channels	1
Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
Video motion detection
Active tampering alarm
IP address filtering
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	EAP-LEAP, EAP-MD5, EAP-TLS
HTTPS encryption
Privacy protection
Heartbeat
Mirror
Digital watermark
Password reset via email
Pixel counter
Flash log
Human and vehicle targets classification
Audit log
Automatic Network Replenishment (ANR)
Digest authentication
Network access storage (NAS)

Management features
Web-based management Using a website/web application to manage something.
Reset button
Behavior analysis	Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Power
Power source type What the power source is.	DC, PoE
Power consumption (max) The maximum amount of power used by the device.	9 W
Power consumption (Power over Ethernet (PoE))	10.5 W
DC output voltage	12
DC output current	0.75 A

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-30 - 60 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%

Weight & dimensions
Height The measurement of the product from head to foot or from base to top.	115.4 mm
Diameter Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body.	13.8 cm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	820 g

Packaging data
Package width The distance from one side of the packaging to the other.	170 mm
Package depth The distance from the front to the back of the packaging.	170 mm
Package height The distance from the top to the bottom of the packaging.	160 mm
Package weight Weight of the packaged product.	1.32 kg

Sustainability
Sustainability compliance
Compliance certificates	CB, CE, KC, RoHS

Packaging content
Number of cameras The quantity of cameras that product can support.	1

Technical details
Iris
Lens mount interface A lens mount is an interface — mechanical and often also electrical — between a photographic camera body and a lens. It is confined to cameras where the body allows interchangeable lenses, most usually the rangefinder camera, single lens reflex type or any movie camera of 16 mm or higher gauge.	M16
