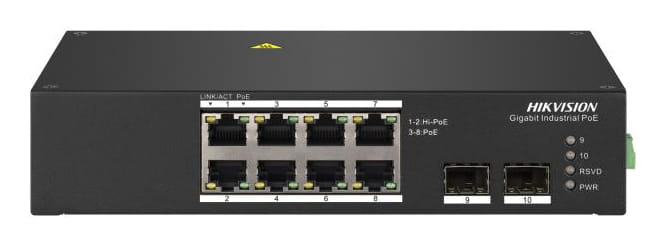

Hikvision DS-3T0510HP, Unmanaged, Gigabit Ethernet (10/100/1000), Gigabit Ethernet, Power over Ethernet (PoE)
The Hikvision DS-3T0510HP unmanaged industrial switch can support eight Gigabit PoE Ports and two Gigabit SFP Fiber Optical Ports. Designed for harsh industrial environments, it can provide an economical solution for your industrial Ethernet connection. The DS-3T0510HP PoE model supports centralized power supply and each port provides 30 W power. The operating temperature of industrial switches ranges from -40 DegC to 75 DegC. All models undergo rigorous aging tests to ensure they meet the specific needs of industrial automation control applications. In addition, the DS-3T0510HP unmanaged switch features a rugged aluminum alloy housing that ensures suitability for industrial environments and an option for fiber connection.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 8 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| SFP module slots quantity | 2 |
| Power connector | DC-in jack |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 1000 Mbit/s |
| Optical fiber | |
| Switching optical modules type | Gigabit Ethernet |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 4000 entries |
| Packet buffer memory | 1.5 MB |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Stackable Devices can be placed on top of each other. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Aluminium |
| LED indicators |
 |
| DIN rail mounting |
|
| Safety List of regulatory safety standards for all countries in which this product has been certified. | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368- 1: 2014+A11: 2017) |
| Performance | |
| Fanless |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | DC |
| DC input voltage | 48 - 57 V |
| Input current | 2.5 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 10 W |
| Power consumption (max) The maximum amount of power used by the device. | 120 W |
| Surge protection |
|
| Surge protection voltage | 6 kV |
| Power protection features Features that protect the device against power problems e.g. overload. | Surge protection |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 110 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 75 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 197 mm |
| Depth The distance from the front to the back of something. | 42.2 mm |
| Height The measurement of the product from head to foot or from base to top. | 114.2 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 585 g |
| Packaging content | |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Packaging data | |
| Package weight Weight of the packaged product. | 1.11 kg |
| Sustainability | |
| Sustainability compliance |
|
| Certificates | |
| Compliance certificates Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies. | CB, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), REACH, RoHS, WEEE |
| SKU | 825584 |
| MPN | 301803167 |
| Brand | Hikvision |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.hikvision.com/ |
