4 FXO 4 FXS 2500 USERS

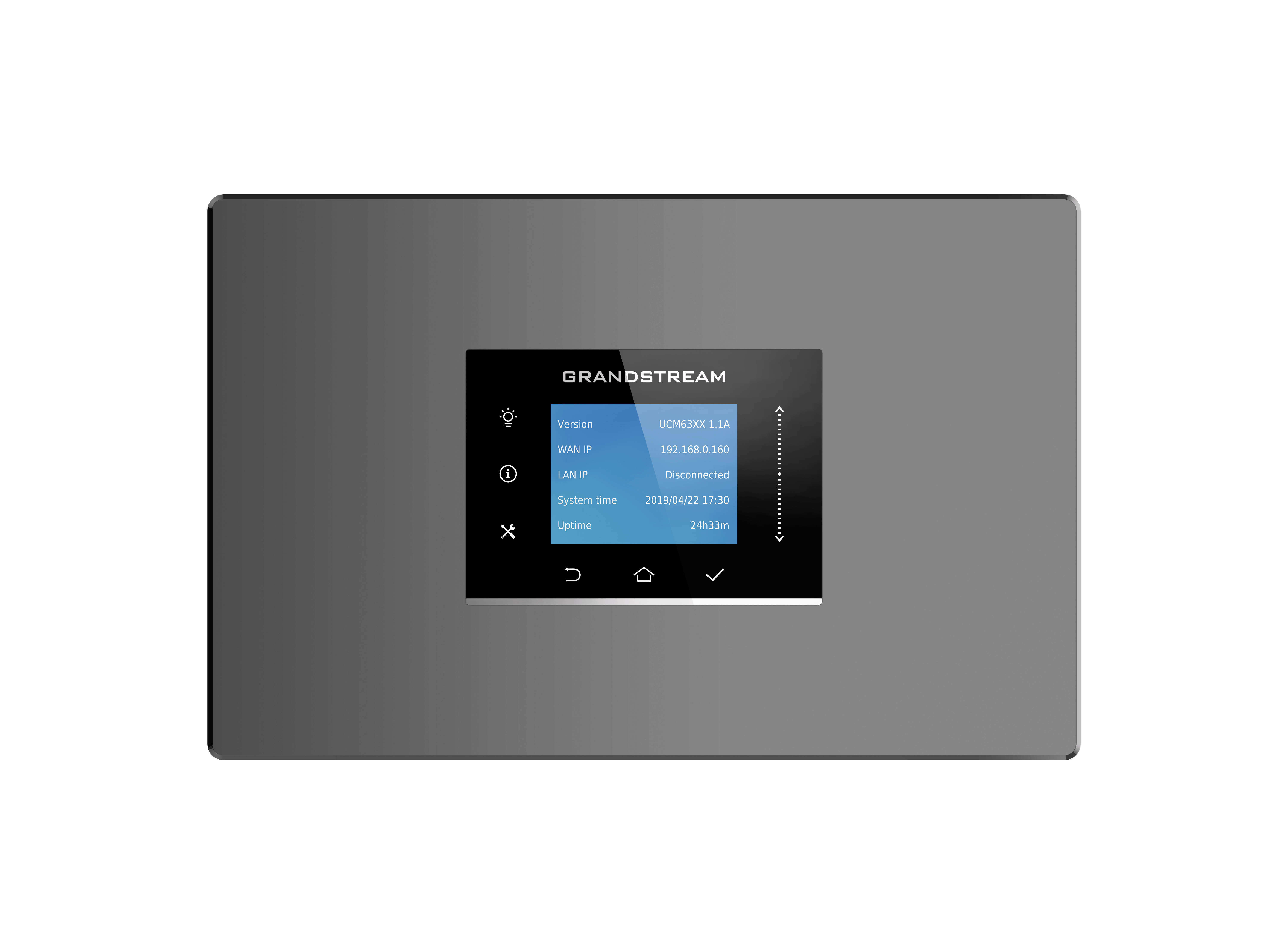

Grandstream UCM6304 is an innovative hybrid IP PBX for small and medium-sized businesses SMB. IP PBX with reliable system resources is a multifunctional high-tech solution for unified communications that meets customer needs in the combination of voice video facsimile data and video surveillance.
Features
Features
- Supports up to 5000 users
- Up to 400 simultaneous calls
| Features | |
| Number of users The number of people that use or can use this product. | 2000 user(s) |
| SIP trunking |
 |
| Product type The sub-category of the product. | IP Centrex (hosted/virtual IP) |
| Number of simultaneous calls (max) | 200 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN interface type The characteristics of the Ethernet LAN interface. | Gigabit Ethernet |
| Network address translation (NAT) |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 3 |
| RJ-11 ports quantity | 8 |
| Foreign eXchange Station (FXS) ports quantity | 4 |
| Foreign eXchange Office (FXO) ports quantity | 4 |
| Power over Ethernet (PoE) ports quantity | 1 |
| Call management | |
| Caller ID The name and/or number of the caller comes up on screen when they ring the phone. You also send your caller ID when you call someone else unless you choose to deactivate it. |
|
| Call forwarding |
|
| Call queueing |
|
| Call waiting |
|
| Conference call |
|
| Call park |
|
| Fax | |
| FAX server integrated |
|
| Storage | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 2 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 187.2 mm |
| Depth The distance from the front to the back of something. | 485 mm |
| Height The measurement of the product from head to foot or from base to top. | 46.2 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.49 kg |
| Package weight Weight of the packaged product. | 3.26 kg |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Display type Type of display (screen) e.g. LCD. | LCD |
| SKU | 616791 |
| MPN | UCM6304 |
| Brand | Grandstream |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | http://www.grandstream.com/ |
| Stock Availability | Available for Shipping |
