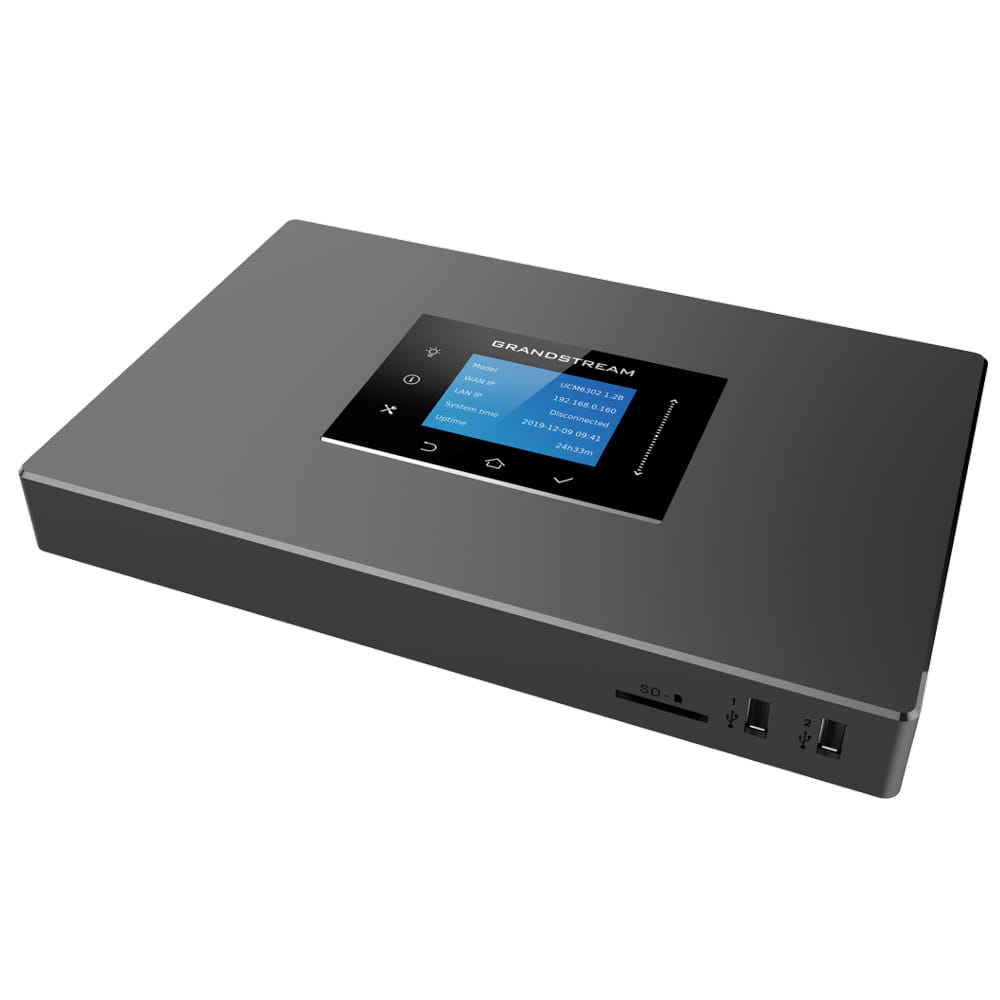

GrandstreamUCM6302 IP PBX supporting 2x FXO, 2x FXS ports, 1000 Users, Supports Full-Band Opus voice codec, H.264/H.263/ H.263+/H.265/VP8 video codec
Users: 1000
Concurrent calls (G.711): 150
Max concurrent SRTP calls
(G.711): 100
Concurrent calls (G.711): 150
Max concurrent SRTP calls
(G.711): 100
| Features | |
| Number of users The number of people that use or can use this product. | 1000 user(s) |
| Product type The sub-category of the product. | IP PBX (private & packet-switched) system |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Quality of Service (QoS) support |
 |
| Network | |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | SIP, TCP/UDP/IP, RTP/RTCP, IAX, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, STUN, SRTP, TLS, LDAP, HDLC, HDLC-ETH, PPP, Frame Relay, IPv6, OpenVPN |
| Ports & interfaces | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| RJ-11 ports quantity | 2 |
| Storage | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | SD |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 270 mm |
| Depth The distance from the front to the back of something. | 175 mm |
| Height The measurement of the product from head to foot or from base to top. | 36 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 725 g |
| Package weight Weight of the packaged product. | 1.22 kg |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Display type Type of display (screen) e.g. LCD. | LCD |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 320 x 240 pixels |
| SKU | 562996 |
| MPN | UCM6302 |
| Brand | Grandstream |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | http://www.grandstream.com/ |
