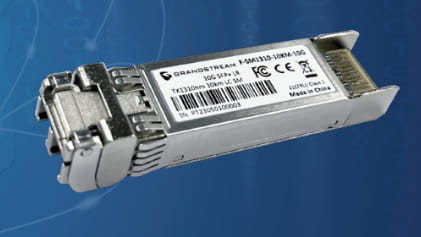

Grandstream Networks F-SM1310-10KM-10G, Fiber optic, 10000 Mbit/s, SFP+, LC, 10000 m, 1310 nm
Fiber Modules
SFP/SFP+ Modules
Grandstream Network offers a wide variety of fiber modules. All of them are hot-pluggable small-form factor transceiver modules integrated with the high sensitivity PIN receiver and signal conditioner for 1.25/10 Gigabit Ethernet applications. SFP modules support very low EMI and excellent ESD protection. Featuring low power consumption, these fiber modules are ideal for enterprise LAN networks and other optical links.
SFP/SFP+ Modules
Grandstream Network offers a wide variety of fiber modules. All of them are hot-pluggable small-form factor transceiver modules integrated with the high sensitivity PIN receiver and signal conditioner for 1.25/10 Gigabit Ethernet applications. SFP modules support very low EMI and excellent ESD protection. Featuring low power consumption, these fiber modules are ideal for enterprise LAN networks and other optical links.
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported |
 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | LC |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 10000 m |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 1310 nm |
| Tx power (min) | -8.2 dBmW |
| Tx power (max) | 0.5 dBmW |
| Rx power (min) | -14.4 dBmW |
| Rx power (max) | 0.5 dBmW |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | 10 Gigabit Ethernet |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3ae |
| Digital Diagnostics Monitoring (DDM) |
|
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| Form factor The shape or design of the product. | SFP+ |
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 3.3 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1 W |
| Operational conditions | |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 18.5 g |
| Technical details | |
| Sustainability certificates | RoHS |
| SKU | 753836 |
| MPN | F-SM1310-10KM-10G |
| Brand | Grandstream |
