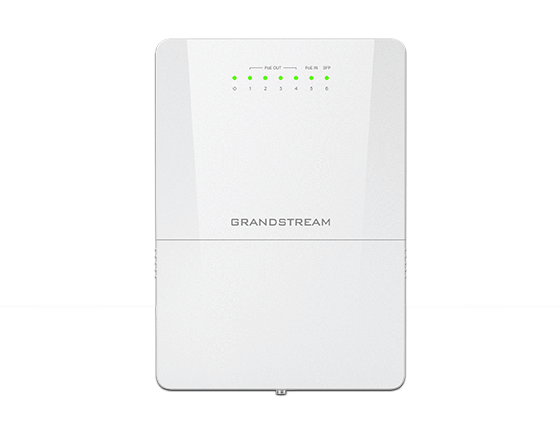

OUTDOOR LAYER 2 LITE MANAGED SWITCH
GR-GWN7710R
6-Port Outdoor Lite Managed PoE Switch
The GWN7710R is a 6-Port 5GE1SFP Outdoor Lite Managed PoE Switch with a professional outdoor shell design IP66 dustproof and waterproof which can easily cope with rain snow high temperatures and other harsh weather conditions. The GWN7710R can build scalable secure high-performance easy to use and manage business networks in scenic locations hotels restaurants and other similar areas.
Features- 5 Gigabit RJ45 ports 4 PoE output ports 1 PoE input port
- SFP Fiber Port for longdistance transmission
- IP66 dustproof and waterproof rating; Wide operating temperature range -40°C and 60°C
- Broadcast/Multicast/Unicast Storm Control to monitor traffic levels
- Built-in QoS allows for prioritization of network traffic
- Apart from these you can find manifold other smarter features and we at Cohesive Technologies give you the best options.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L2 |
| Quality of Service (QoS) support |
 |
| Web-based management Using a website/web application to manage something. |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 5 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T |
| Port mirroring |
|
| Flow control support |
|
| Link aggregation |
|
| Broadcast storm control |
|
| Rate limiting |
|
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Auto-negotiation |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 2000 entries |
| Store-and-forward |
|
| Number of queues | 4 |
| Jumbo frames support |
|
| Jumbo frames | 16000 |
| Packet buffer memory | 1 MB |
| Security | |
| IGMP snooping |
|
| Loop protection |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | White |
| LED indicators | Status |
| Performance | |
| Fanless |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | DC |
| Power supply included There is a power supply with this product. |
|
| DC input voltage | 12 - 57 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 24 W |
| Total Power over Ethernet (PoE) budget | 48 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 210 mm |
| Height The measurement of the product from head to foot or from base to top. | 52 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 750 g |
| Packaging content | |
| User guide |
|
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 286 mm |
| Package depth The distance from the front to the back of the packaging. | 466 mm |
| Package height The distance from the top to the bottom of the packaging. | 258 mm |
| Package weight Weight of the packaged product. | 1.35 kg |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 803066 |
| MPN | GWN7710R |
| Brand | Grandstream |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | http://www.grandstream.com/ |
