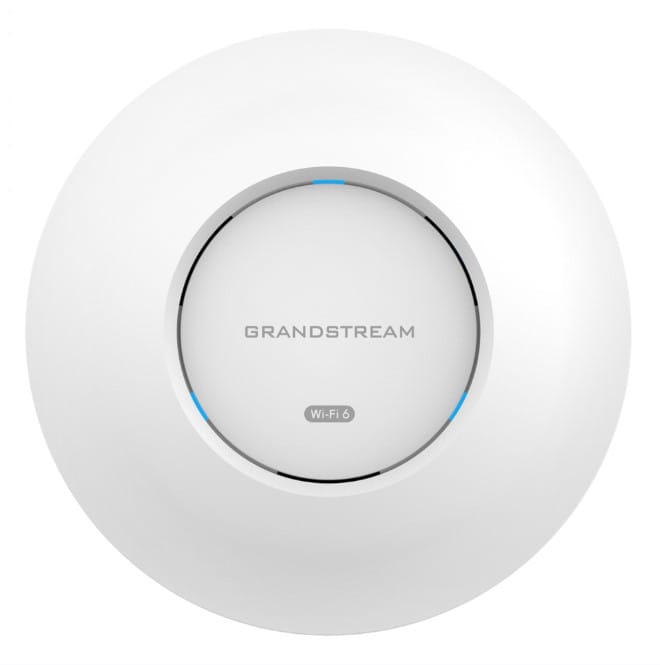

Grandstream GWN7660E GWN Enterprise-Grade Wi-Fi 6 Access Point, AX3000 Wi-Fi 6 Access Point, 5G 3x3:2 MU-MIMO Technology, 3Gbps, Up to 175-meter Cover
The GWN7660E is an enterprise-grade 802.11ax Wi-Fi 6 access point that allows businesses to build next-generation Wi-Fi networks for high-density environments. It offers 2x2:2 MU-MIMO technology on the 2.4G band and 3x3:2 MU-MIMO on the 5G band
3Gbps aggregate wireless throughput and 1 Gigabit wireline port
Dual-band 2.4G 2x2:2 and 5G 3x3:2 MU- MIMO with OFMDA and XTRA Range technology
Up to 175-meter coverage range
Supports 256 concurrent Wi-Fi client devices
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Self-power adaptation upon auto-detection of PoE or PoE+
Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise-based software controller
Specs
Client Devices Up to 256
2.4G Throughput 573.5Mbps (2x2:2 MU-MIMO)
5G Throughput 2.4Gbps (3x3:2 MU-MIMO)
6G THROUGHPUT N/A
Range Up to 175 Meters
Network Interfaces 1x autosensing 10/100/1000 Base-T Ethernet Port, 1x autosensing 10/100/2500 Base-T Ethernet Port
PoE/PoE+ Supports PoE 802.3af / 802.3at; Maximum Power Consumption: 12.95W
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax
SSIDs 32 SSIDs total, 16 per radio
Antennas 5 individual internal antennas
Wi-Fi and Security Systems WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate and random default password per device
Dimensions 180.4mm x 180.4mm x 40.8mm
Mounting Indoor wall mount or ceiling mount
3Gbps aggregate wireless throughput and 1 Gigabit wireline port
Dual-band 2.4G 2x2:2 and 5G 3x3:2 MU- MIMO with OFMDA and XTRA Range technology
Up to 175-meter coverage range
Supports 256 concurrent Wi-Fi client devices
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Self-power adaptation upon auto-detection of PoE or PoE+
Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise-based software controller
Specs
Client Devices Up to 256
2.4G Throughput 573.5Mbps (2x2:2 MU-MIMO)
5G Throughput 2.4Gbps (3x3:2 MU-MIMO)
6G THROUGHPUT N/A
Range Up to 175 Meters
Network Interfaces 1x autosensing 10/100/1000 Base-T Ethernet Port, 1x autosensing 10/100/2500 Base-T Ethernet Port
PoE/PoE+ Supports PoE 802.3af / 802.3at; Maximum Power Consumption: 12.95W
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax
SSIDs 32 SSIDs total, 16 per radio
Antennas 5 individual internal antennas
Wi-Fi and Security Systems WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate and random default password per device
Dimensions 180.4mm x 180.4mm x 40.8mm
Mounting Indoor wall mount or ceiling mount
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
|
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1770 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 573.5 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| MIMO |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Quality of Service (QoS) support |
|
| Maximum indoor range The maximum distance to which the signals are transmitted, when the device is used indoors. | 175 m |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | WEP, WPA, WPA2, WPA2-PSK, WPA3 |
| Number of SSID supported | 32 |
| Protocols | |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power consumption (max) The maximum amount of power used by the device. | 9 W |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| LED indicators | Status |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 4 dBi |
| Certificates | |
| Certification | FCC, CE, RCM, IC |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 180.4 mm |
| Depth The distance from the front to the back of something. | 180.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 40.8 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 443 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 228.5 mm |
| Package depth The distance from the front to the back of the packaging. | 220 mm |
| Package height The distance from the top to the bottom of the packaging. | 79 mm |
| Package weight Weight of the packaged product. | 774 g |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 60 °C |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 803057 |
| MPN | GWN7660E |
| Brand | Grandstream |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | http://www.grandstream.com/ |
