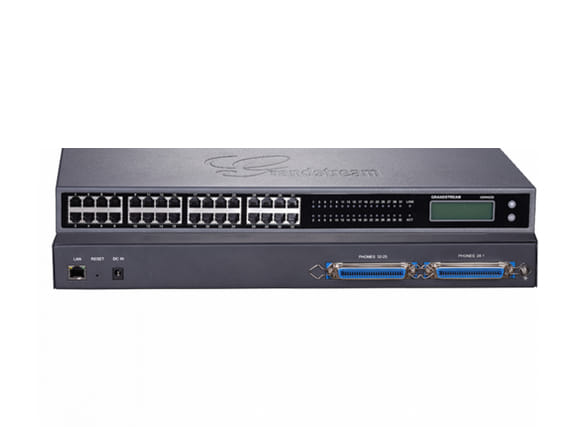

Grandstream Networks GXW4232, TCP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, PP-PoE, STUN, LLDP, 10,100,1000 Mbit/s, IEEE 802.3,IEEE 802.3ab,IEEE 802.3u, 1 Gbit/s, 3.21 kg, 440 x 185 x 44 mm
The GXW4200 high-density FXS gateway series enables businesses of all sizes to create an easy-to-deploy VoIP solution that takes advantage of Gigabit speeds. These FXS gateways offer the ability to seamlessly connect multiple locations and all devices within an office to any hosted or on premise IP PBX network to make deployments as easy as possible. The GXW4200 series includes 16/24/32/48 FXS ports and a Gigabit network port. Deploy the GXW4200 series to allow any businesses to create a cost-effective hybrid IP and analog telephone system that allows them to enjoy the benefits of VoIP communications while preserving investment on existing analog phones, Fax machines and legacy PBX systems.
| Protocols | |
| Supported protocols | TCP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, PP-PoE, STUN, LLDP |
| Network | |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 1 Gbit/s |
| Management features | |
| Web-based management Using a website/web application to manage something. |
 |
| Quality of Service (QoS) support |
|
| Ports & interfaces | |
| I/O ports An interface on a device to which you can connect another device. | 32 x RJ-11, 2 x Telco 50-pin |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.21 kg |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 440 x 185 x 44 mm |
| Power | |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Input voltage The voltage (V) which is required to power the product. | 100 - 240 V |
| Output voltage | 12 V |
| Output current | 5 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Technical details | |
| Voice codecs | G.711,G.723.1,G.726,G.729ab,iLBC |
| Wireless connection Wireless is a term used to describe telecommunications in which electromagnetic waves (rather than some form of wire) carry the signal over part or all of the communication path. |
 |
| Indication | |
| LED indicators |
|
| Power LED |
|
| Certificates | |
| Certification | FCC: Part 15 (CFR 47) Class B CE: EN55022 Class B, EN55024, EN61000-3-2, EN16000-3-3, EN60950-1, RoHS C-TICK; AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, AN/NZS 60950 ITU-T K.21 (Basic Test Level); UL 60950 |
| Design | |
| Mounting type Type of mounting e.g. wall mounting. | Rack mounting |
| SKU | 627816 |
| MPN | GXW4232 |
| Brand | Grandstream |
| Product Condition | Brand New/Unused |
| Wired/Wireless | Wired |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | http://www.grandstream.com/ |
