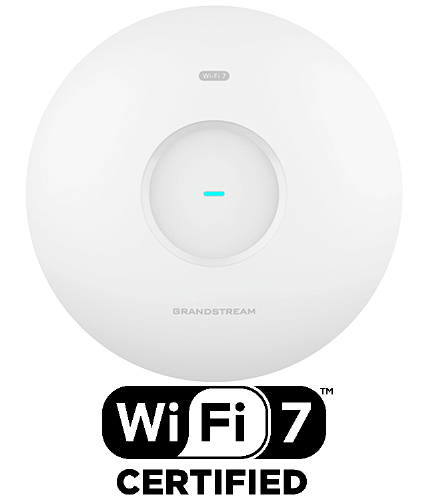

GR-GWN7670
Dual-Band Wi-Fi 7 Access Point
The GWN7670 is a new generation enterprise-grade 802.11be Wi-Fi 7 access point ideal for small-to-medium-sized businesses to build next-generation Wi-Fi networks.
- 3.6Gbps aggregate wireless throughput 5Gbps aggregate wired throughput
- Integrated Wi-Fi 7 & 2x22 MIMO with MLO 4KQAM MRU Preamble Puncturing Technology
- Up to 175-meter coverage range
- Supports 256 concurrent Wi-Fi client devices
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures unique security certificate/random default password per device
- Self-power adaptation upon auto-detection of PoE
- Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management & GWN Manager offers on-premise software AP management
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
|
| 6 GHz |
 |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 2882 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 5.3 |
| MIMO |
|
| Quality of Service (QoS) support |
|
| Maximum indoor range The maximum distance to which the signals are transmitted, when the device is used indoors. | 175 m |
| Maximum Tx power (2.4 GHz) | 26 dBmW |
| Maximum Tx power (5 GHz) | 26 dBmW |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | AES, SSID, TKIP, WEP, WPA, WPA2-PSK, WPA3 |
| Number of SSID supported | 32 |
| Protocols | |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6 |
| Management features | |
| Cloud-managed |
|
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet (PoE) type supported | PoE+ |
| Power consumption (max) The maximum amount of power used by the device. | 14.5 W |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Ceiling, Wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Housing material What the casing of the product is made of. | Plastic |
| Cable lock slot type | Kensington |
| Reset button |
|
| LED indicators | Status |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Antennas quantity | 5 |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 3.5 dBi |
| Certificates | |
| Compliance certificates Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies. | CE, Federal Communications Commission (FCC), RCM |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 185 mm |
| Depth The distance from the front to the back of something. | 185 mm |
| Height The measurement of the product from head to foot or from base to top. | 44.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 527 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 228.5 mm |
| Package depth The distance from the front to the back of the packaging. | 220 mm |
| Package height The distance from the top to the bottom of the packaging. | 79 mm |
| Package weight Weight of the packaged product. | 877 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting kit |
|
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -30 - 60 °C |
| SKU | 811499 |
| MPN | GWN7670 |
| Brand | Grandstream |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | http://www.grandstream.com/ |
