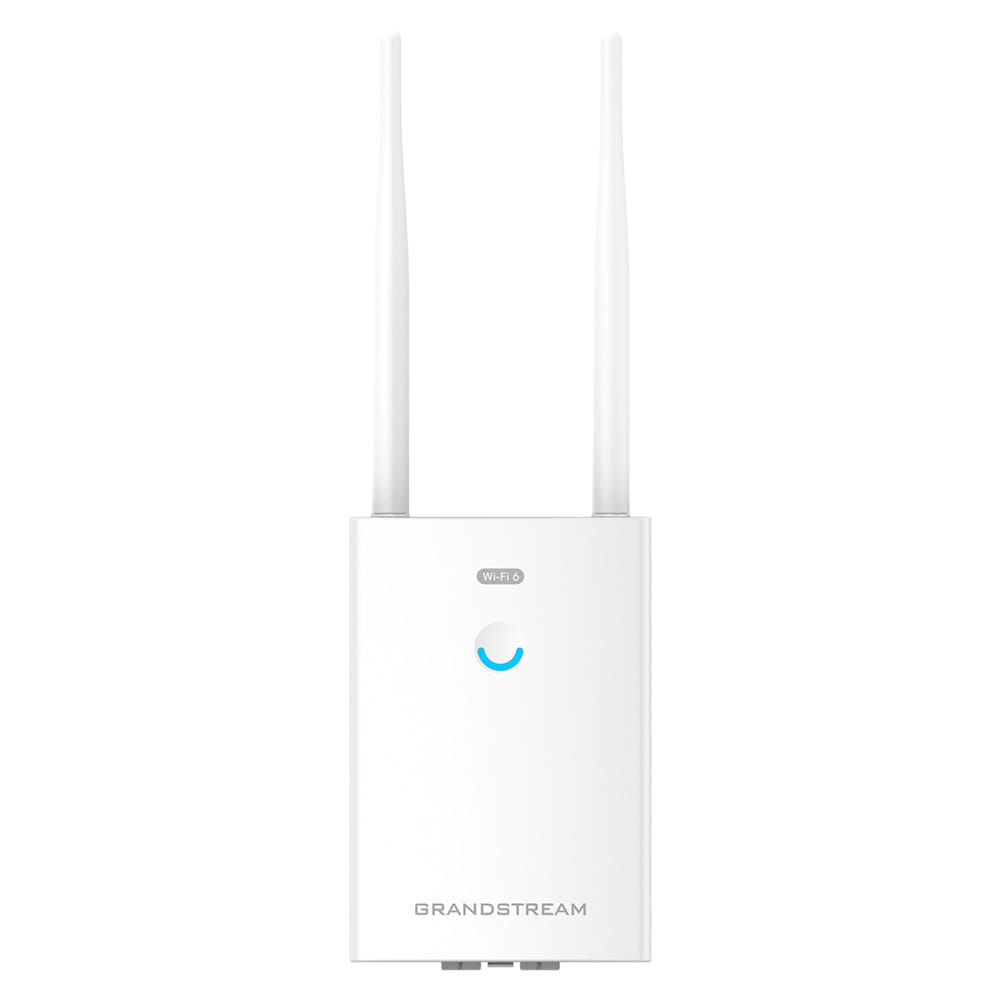

2X2 802.11AC WAVE-2 OUTDOOR LONG RANGE AP WiFi 6
The GWN7660LR is a long-range 802.11ax Wi-Fi 6 access point designed to provide next generation network coverage for indoor and outdoor environments. It offers IP66 weatherproof certified casing dual-band 2x22 MU-MIMO technology and a sophisticated antenna design for extended coverage range of up to 250 meters. The GWN7660LR is supported by GWN.Cloud and GWN Manager Grandstream’s cloud and on-premise Wi-Fi management platform that and makes managing your network or several networks across multiple locations easier than ever before. It also uses a controllerless network management architecture in which the controller is embedded within the product’s web user interface for easy administration of locally deployed Wi-Fi APs. The GWN7660LR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi capable voice and video IP phones. With support for advanced QoS low-latency real-time applications mesh networks captive portals and dual Gigabit networks ports with PoE/PoE; the GWN7660LR is an ideal outdoor Wi-Fi access point for enterprises multiple floor offices warehouses parks hospitals schools and more.
Features
Features
- 1.77Gbps aggregate wireless throughput and2x Gigabit Ethernet ports
- Dual-band 2×22 MU- MIMO with DL/UL OFDMA technology
- Self power adaptation upon auto detection of PoE or PoE
- Support 256 concurrent Wi-Fi client devices
- Up to 250-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown
- Flexibility of 2 detachable/changeable antennas for different application scenarios
- Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management & GWN Manager offers on-premise software AP management
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
|
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1201 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 573.5 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Number of users The number of people that use or can use this product. | 256 user(s) |
| Channel bandwidth | 80 MHz |
| MIMO |
|
| MIMO type | Multi User MIMO |
| Quality of Service (QoS) support |
|
| Maximum outdoor range The maximum distance to which the signals are transmitted, when the device is used outdoors. | 250 m |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | WEP,WPA,WPA2,WPA2-Enterprise,WPA2-PSK,WPA3 |
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 12.9 W |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Ceiling |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | External |
| Antennas quantity | 2 |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 3.5 dBi |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | BNC |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -30 - 70 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 115 mm |
| Depth The distance from the front to the back of something. | 358.3 mm |
| Height The measurement of the product from head to foot or from base to top. | 45.3 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 695 g |
| Packaging data | |
| Number of products included The number of products that are included in the package. | 1 pc(s) |
| SKU | 617407 |
| MPN | GWN7660LR |
| Brand | Grandstream |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | http://www.grandstream.com/ |
