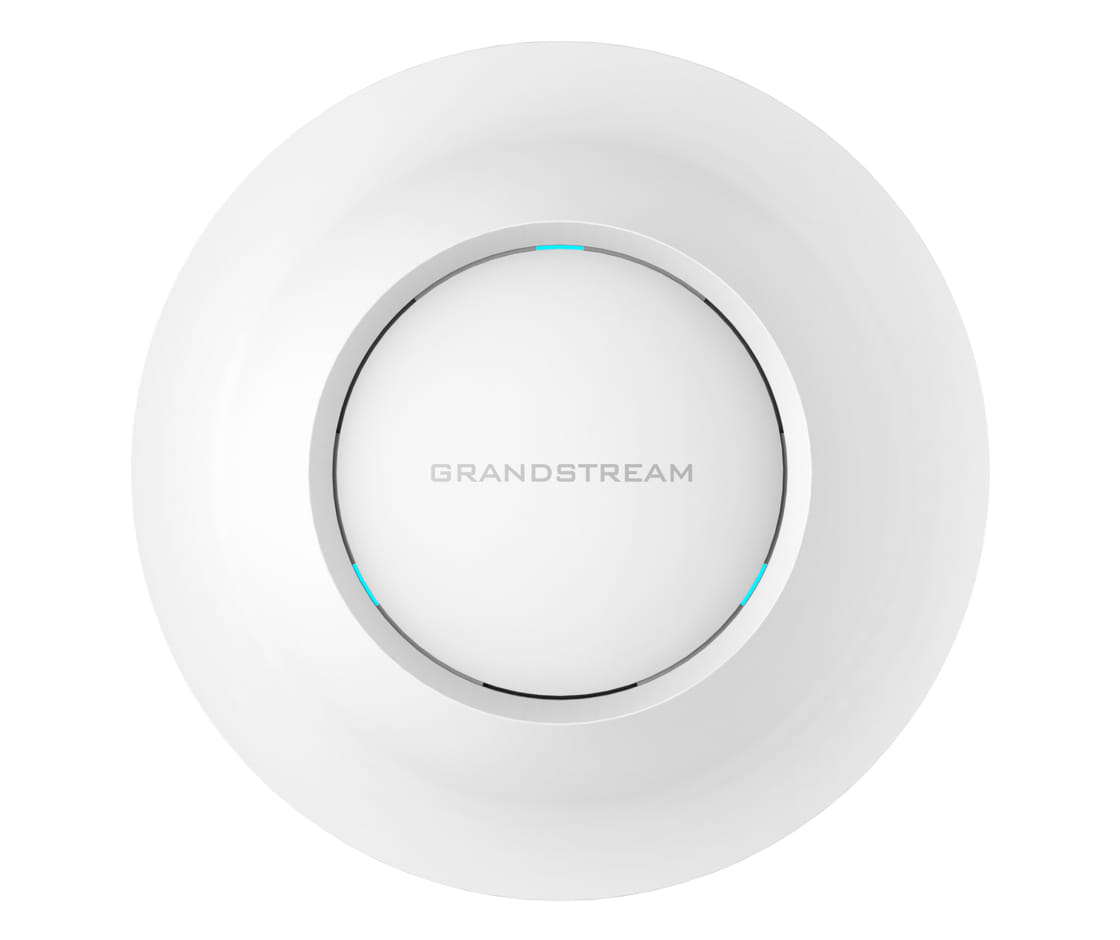

4X4 802.11AC WAVE-2 WIRELESS AP
The GWN7630 is a high-performance 802.11ac Wave-2 Wi-Fi access point for small to medium sized businesses multiple floor offices commercial locations and branch offices. It offers dual-band 4×44 MU-MIMO technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range.
The GWN7630 is a high-performance 802.11ac Wave-2 Wi-Fi access point for small to medium sized businesses multiple floor offices commercial locations and branch offices. It offers dual-band 4×44 MU-MIMO technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management the GWN7630 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. The GWN7630 is also supported by GWN.Cloud Grandstream’s free cloud Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi-capable IP phones. With support for advanced QoS low-latency real-time applications mesh networks captive portals 200 concurrent clients per AP and dual Gigabit network ports with PoE/PoE the GWN7630 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.
Features
The GWN7630 is a high-performance 802.11ac Wave-2 Wi-Fi access point for small to medium sized businesses multiple floor offices commercial locations and branch offices. It offers dual-band 4×44 MU-MIMO technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management the GWN7630 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. The GWN7630 is also supported by GWN.Cloud Grandstream’s free cloud Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi-capable IP phones. With support for advanced QoS low-latency real-time applications mesh networks captive portals 200 concurrent clients per AP and dual Gigabit network ports with PoE/PoE the GWN7630 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.
Features
- 2.33 Gbps wireless throughput and 2 Gigabit wireline ports
- Dual-band 4×44 MU-MIMO technology
- Self power adaptation upon auto detection of PoE or PoE
- Supports 200 concurrent Wi-Fi client devices
- Up to 175-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures unique security certificate/ random default password per device
- Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
|
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 2330 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.412 - 2.484; 5.18 - 5.825 GHz |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11e,IEEE 802.11g,IEEE 802.11n,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az |
| Number of users The number of people that use or can use this product. | 200 user(s) |
| Channel bandwidth | 80 MHz |
| MIMO |
|
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Quality of Service (QoS) support |
|
| Maximum outdoor range The maximum distance to which the signals are transmitted, when the device is used outdoors. | 175 m |
| Transmitting power | 27 dBmW |
| Receiver sensitivity | 2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
| Number of SSID supported | 15 |
| Protocols | |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power consumption (max) The maximum amount of power used by the device. | 16.5 W |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Ceiling, Wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| Reset button |
|
| LED indicators | Status |
| Certification | FCC, CE, RCM, IC |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Antennas quantity | 4 |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 5 dBi |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 205.3 mm |
| Depth The distance from the front to the back of something. | 205.3 mm |
| Height The measurement of the product from head to foot or from base to top. | 45.9 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 590 g |
| Packaging data | |
| Number of products included The number of products that are included in the package. | 1 pc(s) |
| Mounting kit |
|
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Package width The distance from one side of the packaging to the other. | 258 mm |
| Package depth The distance from the front to the back of the packaging. | 247 mm |
| Package height The distance from the top to the bottom of the packaging. | 86 mm |
| Package weight Weight of the packaged product. | 930 g |
| SKU | 616679 |
| MPN | GWN7630 |
| Brand | Grandstream |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | http://www.grandstream.com/ |
