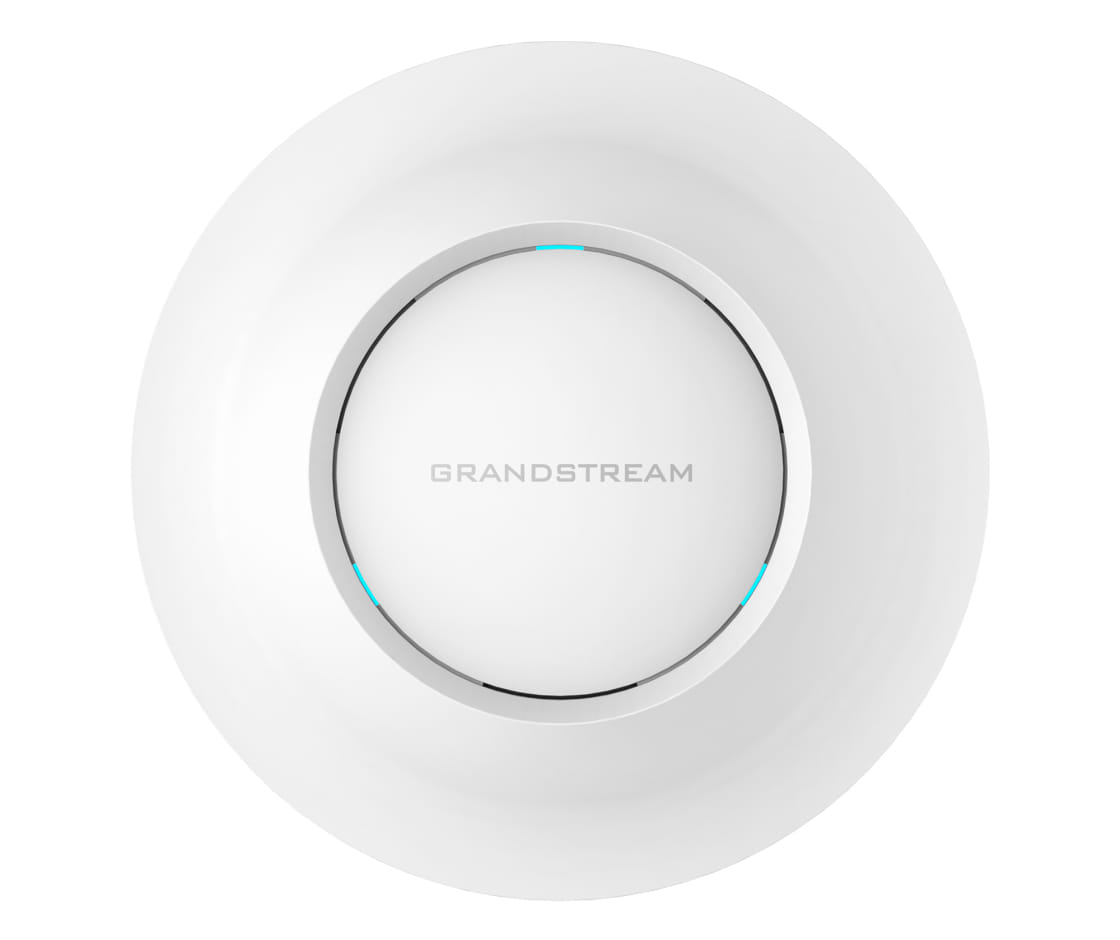

3X3 802.11AC MIMO WIRELESS ACCESS POINT
The GWN7615 include support for advanced QoS low-latency real-time applications mesh networks captive portals 200 concurrent clients per AP and dual Gigabit network ports with PoE/PoE the GWN7615 can be us ed to create a scalable solution as big or small as needed for the deployment scenario from office buildings to reta il locations hotels and more.To ensure easy installation and management the GWN7615 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. The GWN7615 is also supported by GWN.Cloud and GWN Manager Grandstream’s cloud and on-premise Wi-Fi management pl atforms. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstr eam’s Wi-Fi-capable IP phones.
Features
Features
- 1.75Gbps aggregate wireless throughput and 2x Gigabit wireline ports
- Dual-band 3x33 MU-MIMO technology
- Self power adaptation upon auto detection of PoE or PoE
- Support 200 concurrent Wi-Fi client devices
- Up to 175-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures unique security certificate/random default password per device
- Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premisebased software controller
| Features | |
| 2.4 GHz |
|
| 5 GHz |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3af,IEEE 802.3at |
| MIMO |
|
| MIMO type | Multi User MIMO |
| Quality of Service (QoS) support |
|
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | WEP,WPA,WPA2,WPA2-PSK |
| Number of SSID supported | 16 |
| Protocols | |
| Supported protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power consumption (max) The maximum amount of power used by the device. | 12.5 W |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Certification | FCC, CE, RCM, IC |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 205.4 mm |
| Depth The distance from the front to the back of something. | 45.9 mm |
| Height The measurement of the product from head to foot or from base to top. | 205.4 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 500 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 258 mm |
| Package depth The distance from the front to the back of the packaging. | 247 mm |
| Package height The distance from the top to the bottom of the packaging. | 86 mm |
| Package weight Weight of the packaged product. | 867.3 g |
| SKU | 616672 |
| MPN | GWN7615 |
| Brand | Grandstream |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | http://www.grandstream.com/ |
