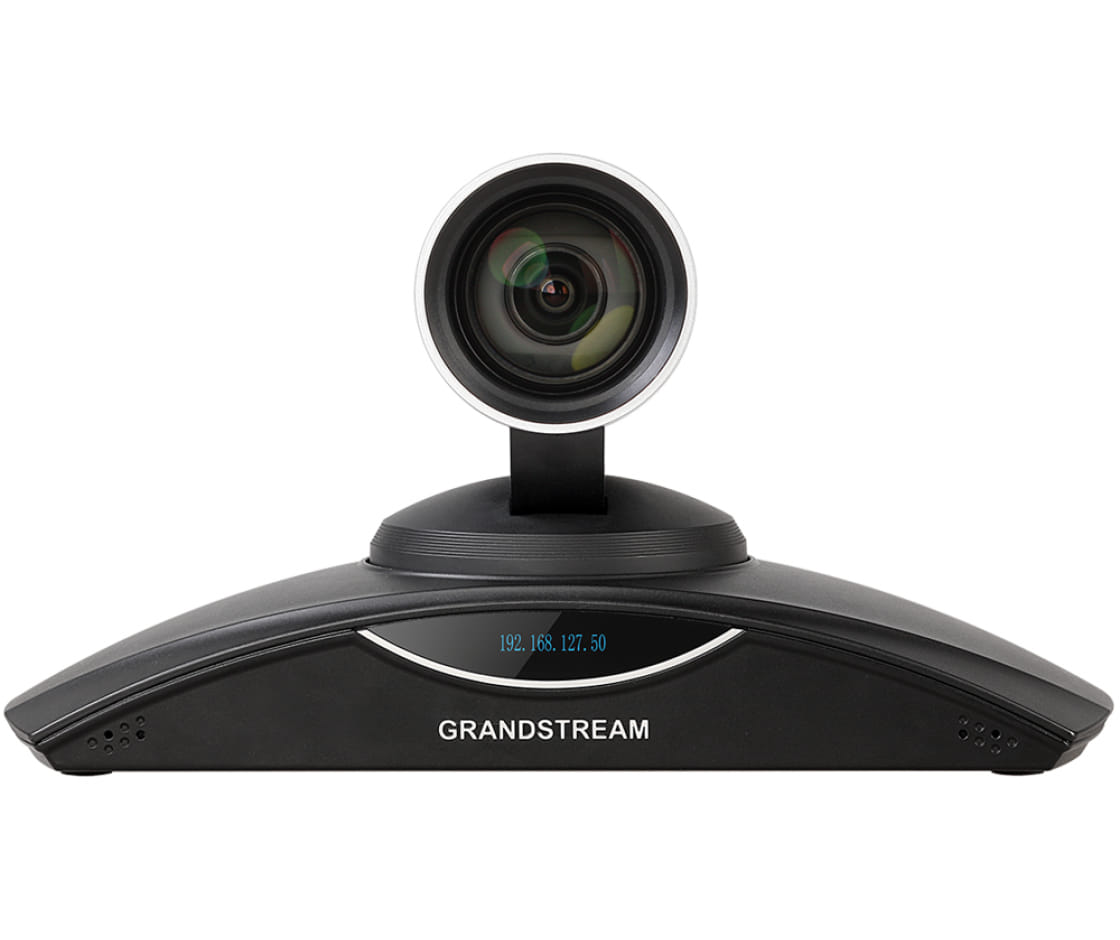

Grandstream Networks GVC3202, CMOS, Full HD, 30 fps, 70
The GVC3202 is a revolutionary video conferencing system that supports an interactive and immersive video conferencing environment to increase meeting collaboration and productivity. The SIP based GVC3202 is compatible with any 3rd party SIP based or H.323 video conferencing platform. Additionally, its built in MCU bridges multiple video conferencing platforms such as Skype, Google Hangouts and many others. Additionally, since the GVC3202 is based on an AndroidTM 4.4 operating system it offers access to applications in the Google Play Store. Users will elevate their experience with its 1080p Full HD video, up to 3 way video conferences, 2 monitor outputs, screen sharing capabilities, and much more.
The GVC series supports Grandstream's IPVideoTalk Video and Web Conferencing platform. This paid subscription based service allows users to turn any meeting hosted on any GVC device into an online meeting that can be joined seamlessly from a web browser or GVC. Turn any physical room into a virtual, online meeting place to offer your customers the tools they need to be successful, no matter where they are.
The GVC series supports Grandstream's IPVideoTalk Video and Web Conferencing platform. This paid subscription based service allows users to turn any meeting hosted on any GVC device into an online meeting that can be joined seamlessly from a web browser or GVC. Turn any physical room into a virtual, online meeting place to offer your customers the tools they need to be successful, no matter where they are.
| Performance | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Pan range | -90 - 90° |
| Tilt angle range | -23 - 23° |
| PTZ control |
 |
| Video | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | Full HD |
| Supported video modes The video modes that can be displayed by the device. | 720p, 1080p |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1360 x 768 (WXGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080) |
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 30 fps |
| Video formats supported The type of video formats that can be used by this device. | H.264 |
| Audio | |
| Voice codecs | G.726-32, iLBC, G.711, G.711a, G.722, G.722.1, G.722.1C, OPUS |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 3 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Interface module | |
| Interface module Ethernet LAN (RJ-45) ports | 1 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | SIP RFC3261, BFCP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, TCP/IP/UDP, IPv6, FEC, FECC, H.323, Q.931, H.224, H.281, H.225.0, H.239, H.241, H.245, H.460.18, H.460.19 |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 256-bit AES, 802.1x RADIUS, HTTPS, MD5, SRTP, SSH, SSL/TLS |
| Password protection type | User |
| Camera | |
| Megapixel (approx.) The number (in millions) of light-sensitive picture elements known as pixels actually used by the camera's image sensor (CCD) to record light, and which are reflected to the final number of recorded pixels stored on the memory card. | 2 MP |
| Optical zoom Indicates the optical zoom capacity, which is the number of times that the picture can be enlarged with the optics of the camera. | 9x |
| Effective sensor resolution | 2 MP |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Image sensor size The total dimensions of the sensor within the camera, given in inches (''). | 1/3" |
| Field of view (FOV) angle | 70° |
| Remote control interface | Bluetooth |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Display The description of display that can includes display type, resolution, size etc. | LED |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 128 x 32 pixels |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Sustainability | |
| Sustainability certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 60 °C |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Current | 5 A |
| DC input voltage | 12 V |
| Certificates | |
| Certification | FCC: Part 15 (CFR 47) Class B; UL 60950, Part 15C, Part 15E.407, Part 2.1091 CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, EN62479, EN301893, EN62311 RCM: AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 4268 |
| Packaging content | |
| Camera control unit included |
|
| Speaker included The product bundle comes with a speaker. |
|
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Microphone included |
|
| SKU | 732599 |
| MPN | GVC3202 |
| Brand | Grandstream |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | http://www.grandstream.com/ |
