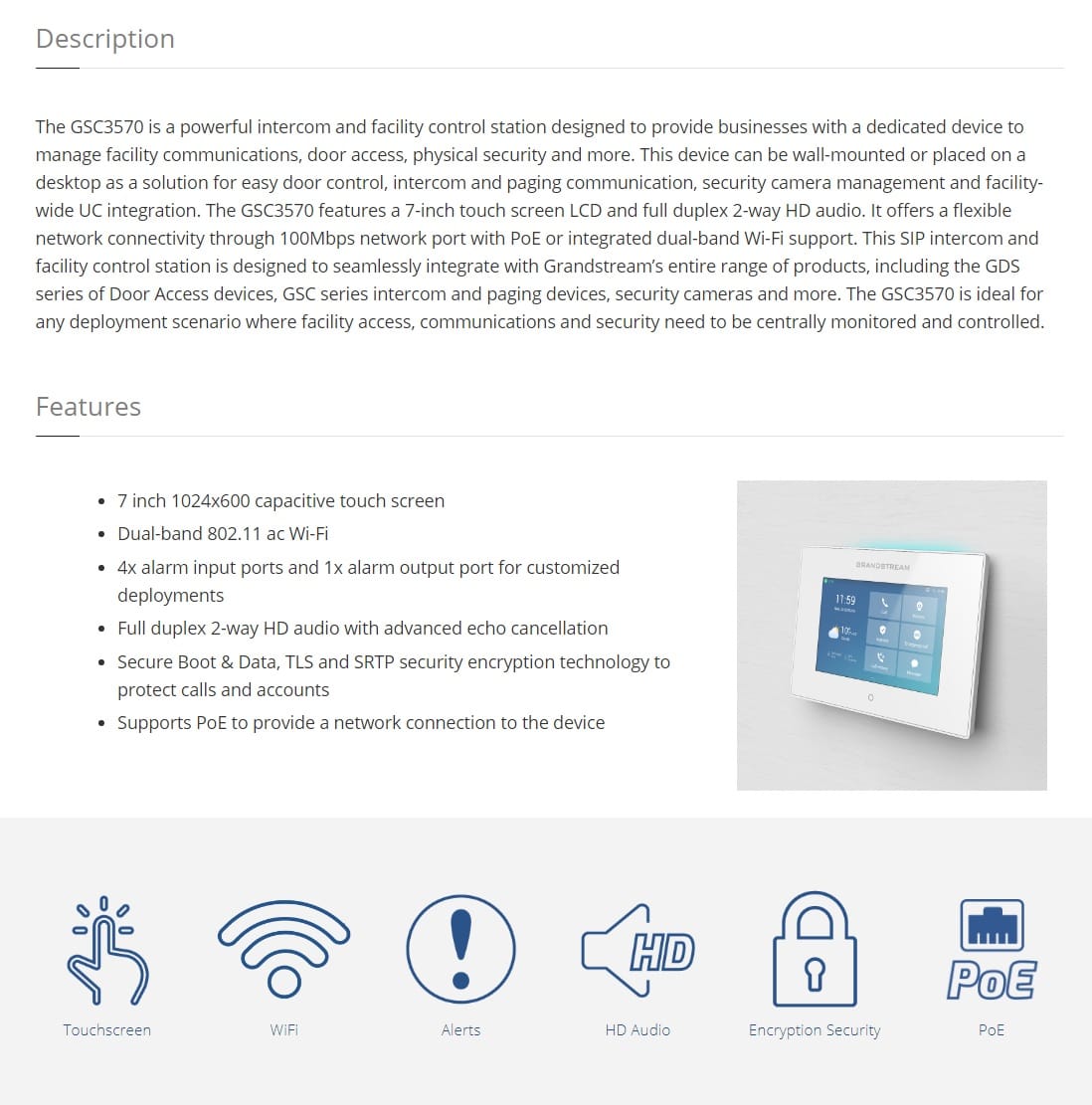

7 inch 1024x600 capacitive touch screen; Dual-band 802.11 ac Wi-Fi; 4x alarm input ports and 1x alarm output port for customized deployments; Full duplex 2-way HD audio with advanced echo cancellation
| Technical details | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired & Wireless |
| Colour The main colour of the product. |
 |
| Speakerphone Device has a microphone and loudspeaker provided separately from those in the handset. This device allows multiple persons to participate in a conversation. The loudspeaker broadcasts the voice or voices of those on the other end of the telephone line, while the microphone captures all voices of those using the speakerphone. |
|
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Number of speakers The quantity of speakers included in/with the product. | 2 |
| Memory card slot |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash) |
| Maximum memory card size The maximum size of memory card that can be used with this device. | 256 GB |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.4 & 5 |
| Voice codecs | AGC,AJB,CNG,G.711,G.722,G.726-32,G.729A,G.729B,OPUS,PLC,VAD,iLBC |
| Built-in microphone Microphone that is found inside the product. |
|
| Certification | FCC, CE, RCM, IC |
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 17.8 cm (7") |
| Display technology The technology used in the display e.g. plasma, LED. | TFT |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1024 x 600 pixels |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
|
| Touchscreen type There are a variety of touchscreen technologies that have different methods of sensing touch, including resistive and capacitive. | Capacitive |
| Video formats supported The type of video formats that can be used by this device. | H.264,H.264 BP |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Portuguese, Russian |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Vertical |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LDAP, 802.1x, TLS, SRTP, IPv6 |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3af |
| Power | |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 224.5 mm |
| Depth The distance from the front to the back of something. | 149.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 36.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 517 g |
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Linux |
| Packaging data | |
| Indoor unit included |
|
| Outdoor unit included |
 |
| Package width The distance from one side of the packaging to the other. | 265 mm |
| Package depth The distance from the front to the back of the packaging. | 180 mm |
| Package height The distance from the top to the bottom of the packaging. | 54 mm |
| Package weight Weight of the packaged product. | 880 g |
| SKU | 532799 |
| MPN | GSC3570 |
| Brand | Grandstream |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | Business |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | http://www.grandstream.com/ |
