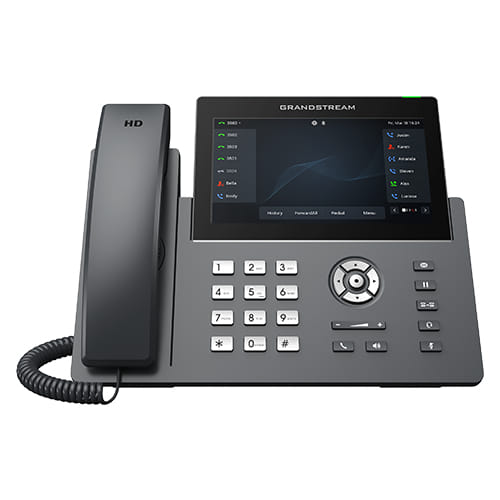

HIGH END GRP SERIES IP PHONE TOUCH SCREEN LINUX
Part of the GRP series of Carrier-Grade IP Phones the GRP2670 is a professional 12-line model designed with zero-touch provisioning for mass deployment and easy management. It features a sleek design and a suite of next-generation features including 5-way voice conferencing to maximize productivity integrated PoE & Wi-Fi full HD audio on both the speaker and handset to allow users to communicate with the utmost clarity EHS support for Plantronics headsets and integrated USB headset support. The GRP series includes carrier-grade security features to provide enterprise-level security including secure boot dual firmware images and encrypted data storage. For cloud provisioning and centralized management the GRP2634 is supported by Grandstreams Device Management System GDMS which provides a centralized interface to configure provision manage and monitor deployments of Grandstream endpoints. With 32 Virtual Multi-Purpose Keys VPK and 10 Multi-Purpose Keys MPK the GRP2670 is the perfect choice for busy professionals and receptionists who need to manage high call volumes with advanced functionality. Designed for easy deployment by enterprises service providers and other high-volume markets the GRP2670 offers an easy-to-use and easy-to-deploy voice endpoint. Core Features 12 lines 6 SIP accounts Supported by GDMS which provides a centralized interface to configure provision manage and monitor Grandstream devices RJ9 headset jack allowing EHS with Plantronics headsets and integrated USB Headset support Full-duplex speakerphone with HD audio to maximize audio quality and clarity Equipped with noise shield technology to minimize background noise Dual switched autosensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE Supports 5-way audio conferencing for easy conference calls Enterprise-level protection including secure boot dual firmware images and encrypted data storage Swappable faceplate to allow for easy logo customization Integrated dual-band Wi-Fi 802.11 a/b/g/n/ac 2.4Ghz & 5Ghz
| Design | |
| Product type The sub-category of the product. | IP Phone |
| Handset type | Wired handset |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Performance | |
| Dual-Tone Multi-Frequency (DTMF) modes | In-band, Out-of band, SIP info |
| Password protection type | Supervisor, User |
| Phone features | |
| Lines quantity The number of lines in the phone. | 12 lines |
| Answering machine The product contains an answering machine where you can leave messages if the phone is unanswered/engaged (busy). |
 |
| Call log entries | 2000 |
| Call waiting |
|
| Speed dialling |
|
| Call hold |
|
| Call forwarding |
|
| Conference call |
|
| On-hook dialling |
|
| Phonebook capacity The number of names/numbers that can be stored in the phonebook of a phone. | 2000 entries |
| Call park |
|
| Call pick up |
|
| Phonebook sharing |
|
| Call transfer |
|
| Call history |
|
| Customizable wallpaper |
|
| Management features | |
| Volume control | Buttons |
| Number of programmable keys | 5 |
| Number of function keys | 9 |
| Firmware upgradeable |
|
| Display | |
| Display The description of display that can includes display type, resolution, size etc. | TFT |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 17.8 cm (7") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1024 x 600 pixels |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
|
| Audio | |
| Speakerphone Device has a microphone and loudspeaker provided separately from those in the handset. This device allows multiple persons to participate in a conversation. The loudspeaker broadcasts the voice or voices of those on the other end of the telephone line, while the microphone captures all voices of those using the speakerphone. |
|
| Number of microphones | 2 |
| Voice codecs | G.711Mu, G.711alaw, G.722, G.723, G.726, G.729A, G.729B, OPUS, iLBC |
| Noise reduction |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN interface type The characteristics of the Ethernet LAN interface. | Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6 |
| Quality of Service (QoS) support |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 256-bit AES, 802.1x RADIUS, MD5, SRTP, TLS |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af |
| Ports & interfaces | |
| Headset connectivity | RJ-9 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| RJ-9 ports quantity | 1 |
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Certificates | |
| Certification | FCC, IC, CE, RCM |
| Compliance industry standards List of characteristics that describe methods of compliance to industry-defined standards for the product | FCC: Part 15 Subpart B(Class B), Part 15 Subpart C 15.247, Part 15 Subpart C 15.407, Part 1 Subpart I, Part 68. 316/317; IC: RSS-247, RSS-Gen, RSS-102, ICES-003, CS-03 Part V; CE: EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 62368-1, EN 62311, EN 301 489-1, EN 301 489-17, EN 300 328, EN 301 893; RCM: AS/NZS CISPR 32, AS/NZS 62368.1, AS/NZS 4268, AS NZS 2772.2, AS/CA S004. |
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 267 mm |
| Depth The distance from the front to the back of something. | 220 mm |
| Height The measurement of the product from head to foot or from base to top. | 82 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.1 kg |
| Package weight Weight of the packaged product. | 1.65 kg |
| Packaging content | |
| Base station |
|
| Handset |
|
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Number of handles included The amount of handles, which are the part by which a thing is held, carried or controlled. | 1 pc(s) |
| Cables included | DC, RJ-9 |
| AC adapter included |
|
| SKU | 617393 |
| MPN | GRP2670 |
| Brand | Grandstream |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | http://www.grandstream.com/ |
| Stock Availability | Available for Shipping |
