HD audio, handset and speakerphone with support for wide-band audio; 6 line keys with up to 6 SIP accounts; Dual LCD screens with digital BLF Keys

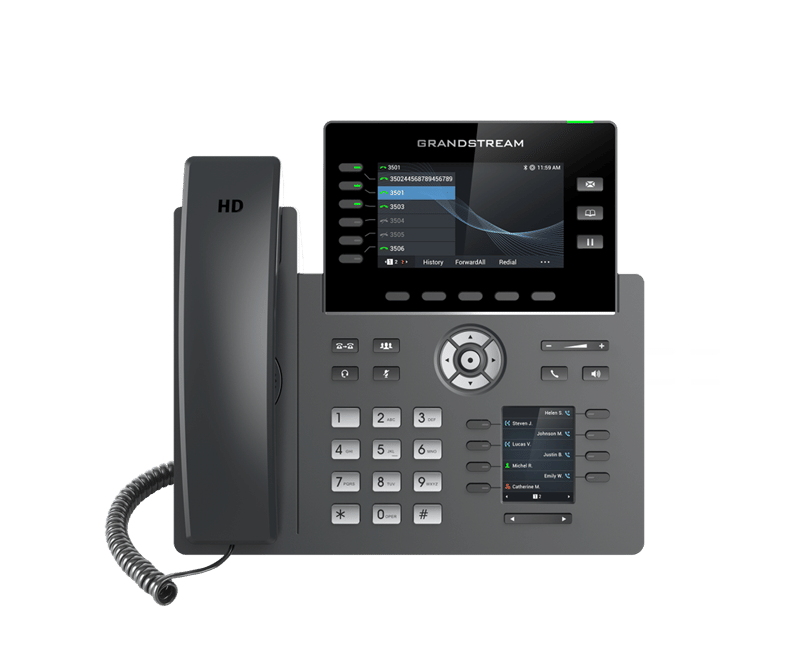

6-line Carrier-Grade IP Phone
GRP2616
The GRP2616 is a high-end carrier-grade IP phone designed with zero-touch provisioning for mass deployment and easy management. It supports 6 lines and 6 SIP accounts while featuring a sleek design and a suite of next-generation features including integrated Wi-Fi, Bluetooth support, 48 virtual multi-purpose keys (MPKs), dual Gigabit ports and more. This device features a 4.3 inch color LCD screen with swappable face plates to allow for easy logo customization and an additional 2.4 inch display screen. The GRP series includes carrier-grade security features to provide enterprise-level security, including secure boot, dual firmware images and encrypted data storage. For cloud provisioning and centralized management, the GRP2616 is supported by Grandstream™s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints. Built for the needs of busy desktop workers and designed for easy deployment by enterprises, service providers and other high-volume markets, the GRP2616 offers an easy-to-use and easy-to-deploy voice platform.
Features
HD audio, handset and speakerphone with support for wide-band audio
6 line keys with up to 6 SIP accounts
Dual LCD screens with digital BLF Keys
Enterprise-level protection including secure boot, dual firmware images, and encrypted data storage
Integrated dual-band 802.11 a/b/g/n/ac Wi-Fi
Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
Swappable face plates to allow for easy logo customization
Integrated Bluetooth
| Design | |
| Product type The sub-category of the product. | IP Phone |
| Handset type | Wired handset |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Performance | |
| Dual-Tone Multi-Frequency (DTMF) modes | In-band, Out-of band, SIP info |
| Password protection type | Supervisor, User |
| Phone features | |
| Lines quantity The number of lines in the phone. | 6 lines |
| Answering machine The product contains an answering machine where you can leave messages if the phone is unanswered/engaged (busy). |
 |
| Call waiting |
|
| Call hold |
|
| Call forwarding |
|
| Conference call |
|
| Call park |
|
| Call pick up |
|
| Call log entries | 2000 |
| Phonebook sharing |
|
| Call transfer |
|
| Management features | |
| Number of programmable keys | 5 |
| Firmware upgradeable |
|
| Display | |
| Display The description of display that can includes display type, resolution, size etc. | TFT |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 10.9 cm (4.3") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 480 x 272 pixels |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
 |
| Camera | |
| Front camera Camera at the front of the product. |
|
| Audio | |
| Speakerphone Device has a microphone and loudspeaker provided separately from those in the handset. This device allows multiple persons to participate in a conversation. The loudspeaker broadcasts the voice or voices of those on the other end of the telephone line, while the microphone captures all voices of those using the speakerphone. |
|
| Voice codecs | G.711a,G.711u,G.722,G.723,G.726,G.729ab,OPUS,iLBC |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN interface type The characteristics of the Ethernet LAN interface. | Gigabit Ethernet |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6 |
| Quality of Service (QoS) support |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 256-bit AES,MD5,SRTP,SSL/TLS |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1x,IEEE 802.3af |
| Ports & interfaces | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| RJ-9 ports quantity | 1 |
| Certificates | |
| Certification | FCC: 15 B; 15 C 15.247; 15 E 15.407; FCC Part 68 HAC; 1 I(MPE) CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; EN 301489-1; EN 301489-17; EN 300328; EN 301893; EN 62311 RCM: AS/NZS CISPR32; AS/NZS 4268; AS/NZS 62368.1; AS/CA S004; AS NZS 2772.2 IC: ICES-003; CS-03; RSS-247; RSS-102(MPE). |
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 247 mm |
| Depth The distance from the front to the back of something. | 228 mm |
| Height The measurement of the product from head to foot or from base to top. | 82.4 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.02 kg |
| Package weight Weight of the packaged product. | 1.65 kg |
| Packaging content | |
| Number of handles included The amount of handles, which are the part by which a thing is held, carried or controlled. | 1 pc(s) |
| SKU | 482906 |
| MPN | GRP2616 |
| Brand | Grandstream |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | http://www.grandstream.com/ |
| Stock Availability | Available for Shipping |
