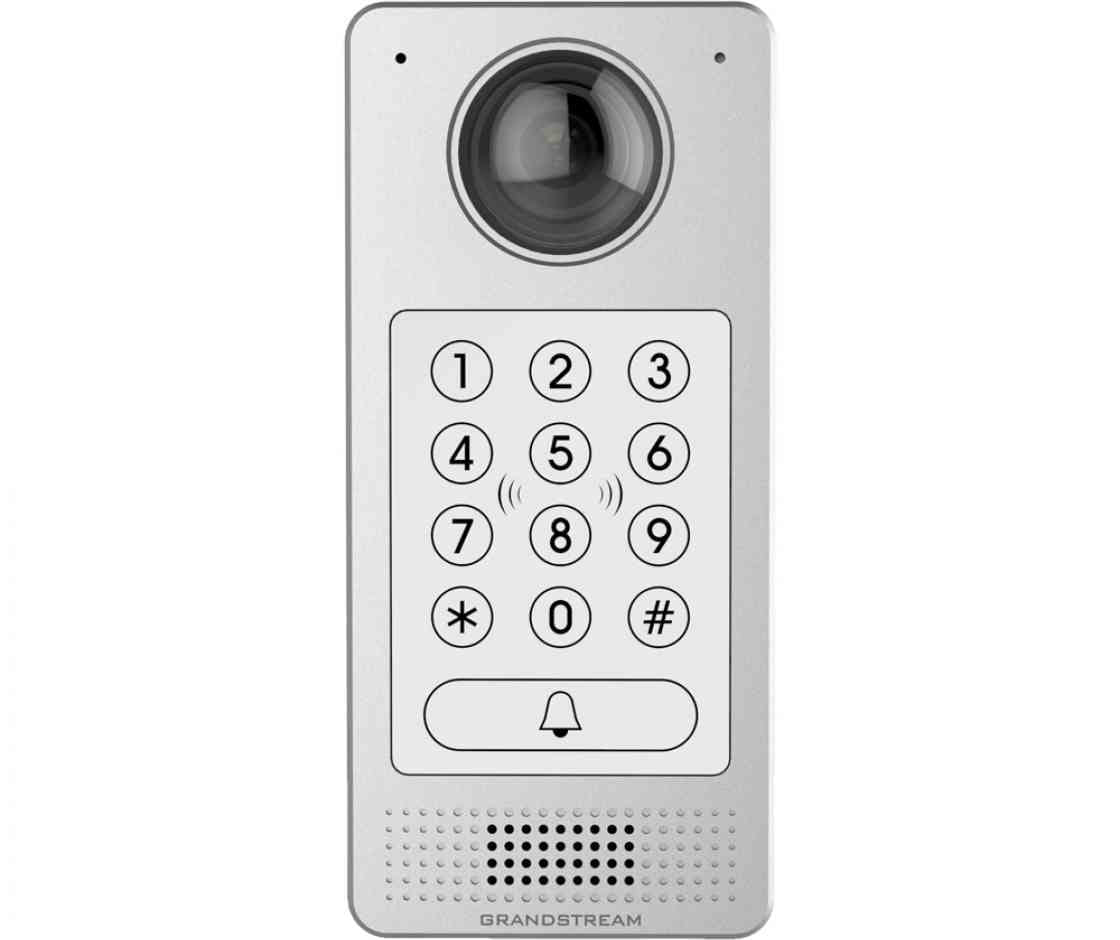

Grandstream Networks GDS3710, Grey, IP66, Buttons, Vertical, Outdoor, Fast Ethernet
The GDS3710 is an IP Video Door System that also serves as a hi gh-definition IP surveillance camera and IP intercom to offer facility access control and security monitoring for buildings of all sizes. This powerful IP Video Door System offers a 180-degree video viewing angle for wall-to-wall coverage, has a built-in RFID chip reader for secure keyless entry, includes a built-in microphone and speaker to support intercom functionality and offers alarm-in and alarm-out support for integration with existing security devices. The GDS3710 integrates with Grandstreams free management utility software, GDS Manager, allowing RFID card information, video feeds as well as the device itself to be fully managed by this software. Powered by an advanced Image Sensor Processor (ISP) and state-of-the-art image algorithms, the GDS3710 delivers 1080p FHD video resolutions and offers exceptional performance in all lighting conditions. It features SIP/VoIP technology with 2-way audio and video streaming feeds loaded directly to smart phones, SIP endpoints and the GDS management software. The GDS3710 is equipped with integrated PoE for seamless installation, bright LEDs for illumination, motion detector for security protection, lighting control switch and more. The combination of the GDS3710, Grandstreams GXP21xx IP phones, GXV video phones, GS-Wave Mobile app, and GVR350x NVR products provide a complete solution for access control, video intercom, and security recording needs.
- Powerful video resolutions up to 1080p
- Built-in RFID chip reader for keyless entry
- SIP video streaming to NVRs, video intercom stations, IP phones, or smart phones simultaneously
- Built with a metal casing to make it weatherproof and vandal resistant
- Built-in hemispheric camera allows for 180-degree wall-to wall coverage
- Supports motion detection
- Integrated PoE to power the device and provide a network connection
- Built-in microphone and speaker offers voice options and intercom functionality
- Powerful video resolutions up to 1080p
- Built-in RFID chip reader for keyless entry
- SIP video streaming to NVRs, video intercom stations, IP phones, or smart phones simultaneously
- Built with a metal casing to make it weatherproof and vandal resistant
- Built-in hemispheric camera allows for 180-degree wall-to wall coverage
- Supports motion detection
- Integrated PoE to power the device and provide a network connection
- Built-in microphone and speaker offers voice options and intercom functionality
| Technical details | |
| Speakerphone Device has a microphone and loudspeaker provided separately from those in the handset. This device allows multiple persons to participate in a conversation. The loudspeaker broadcasts the voice or voices of those on the other end of the telephone line, while the microphone captures all voices of those using the speakerphone. |
 |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| IK code | IK09 |
| Voice codecs | G.711Mu,G.711a,G.722 |
| Wall mountable The product can be mounted on (attached to ) a wall. |
|
| Built-in microphone Microphone that is found inside the product. |
|
| Video codecs | H.264 |
| Motion detection function |
|
| Number of buttons The quantity of buttons, which are small device on a piece of electrical or electronic equipment which are pressed to operate it. | 12 buttons |
| Backlight buttons |
|
| Certification | FCC: 15 B B; 15 C; MPE CE: EN 55032 B; EN 61000-3-2; EN 61000-3-3; EN 50130; EN 60950-1; EN 300330; EN 301489; EN 62311 RCM: AS/NZS CISPR 22; AS/NZS 4268; AS/NZS 60950.1 IC: ICES-003; RSS310 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| Smartphone support |
|
| Control type The way in which the device is controlled. | Buttons |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Vertical |
| Proper use The intended application of the product. | Outdoor |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (RV, NAPTR), DHCP, SSH, SMTP, TFTP, NTP, STUN, TLS, SRTP |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q,IEEE 802.1p,IEEE 802.1x,IEEE 802.3af |
| Camera | |
| Megapixel The number (in millions) of light-sensitive picture elements known as pixels actually used by the camera's image sensor (CCD) to record light, and which are reflected to the final number of recorded pixels stored on the memory card. | 2 MP |
| Maximum image resolution Resolution is the amount of detail held by an image. The higher the resolution, the better (sharper) the image. The maximum image resolution produces the best image. | 1920 x 1080 pixels |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 1920 x 1080 pixels |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.7 mm (1 / 2.7") |
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 30 fps |
| Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality. | 0.5 lx |
| Field of view (FOV) angle | 180° |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 150° |
| Power | |
| Operating voltage (door opener) | 12 V |
| Operating current (door opener) | 1 A |
| Operational conditions | |
| Door station operating temperature (T-T) | -30 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 80 mm |
| Depth The distance from the front to the back of something. | 36 mm |
| Height The measurement of the product from head to foot or from base to top. | 173 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 600 g |
| SKU | 494075 |
| MPN | GDS3710 |
| Brand | Grandstream |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | http://www.grandstream.com/ |
| Stock Availability | Available for Shipping |
